5t and 10t Can Be Customized Milk Chiller Machine Milk Cooling Tank

Customization:	Available
Process:	Frozen and Chilled
Power Source:	Condensing Agent

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WY

Application

Milk, Yogurt

Customized

Milk Cooling Tank Capacity

100L to 10t Customized

Condenser

Europe Brand

Cooling Power

1HP ~ 24HP

Mixing Speed

36rpm

Temperature Control

Digital Temperature Control

Insulation Layer

High Density PU Foma

Minimum Temperature

0~4 Degree C

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

Large capacity 5T and 10T customized milk cooling tank Milk Cooler Chiller
Name: Milk Cooling Tank/ Milk Cooler Chiller

1. Cooling fresh cow milk to exent the storage time
2. Temperature controlled automaticaly
3. Cooling fresh milk to 0~4 degree in short time
4. USD world famous compressor brand such as copeland.

Milk Cooler Chiller can be devided into vertical Milk Cooler Chiller and horizontal Milk Cooler Chiller according to the tank capacity. For small capacity, such as 500L, 800L and 1000Liter capacity milk cooling tanks, we usually make it into vertical Milk Cooler Chiller s. For the cooling capacity more than 1500L, we usually make it into horizontal Milk Cooler Chiller s.

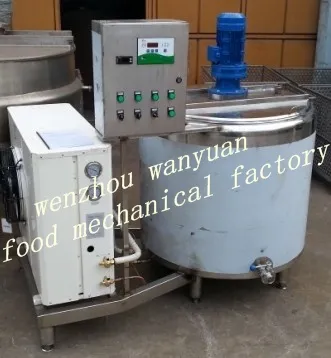

Picture of vertical Milk Cooler Chiller:
5t and 10t Can Be Customized Milk Chiller Machine Milk Cooling Tank

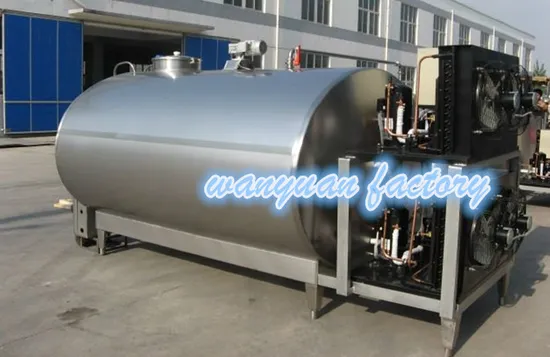

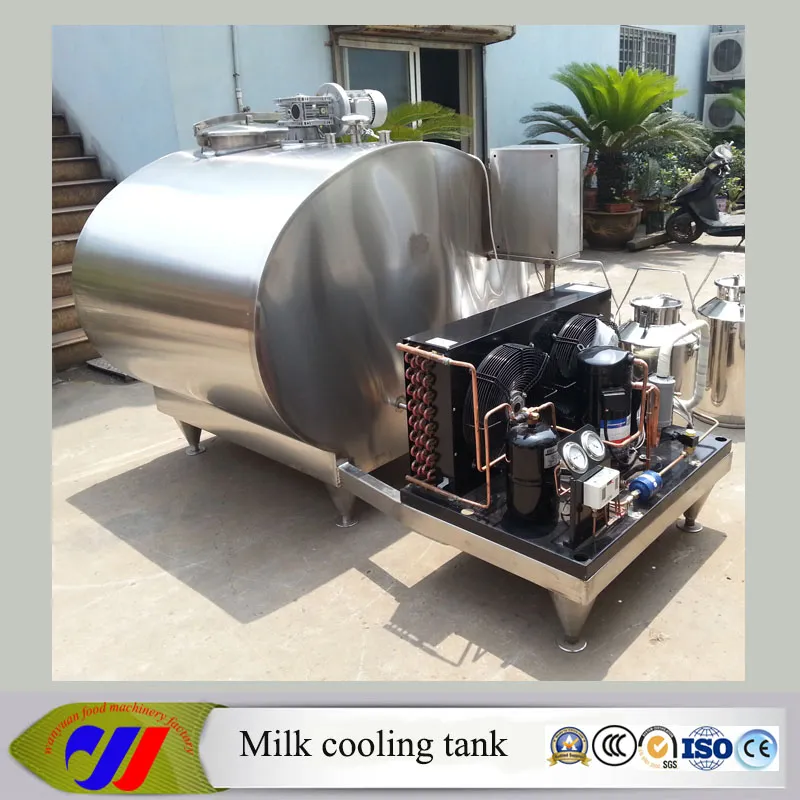

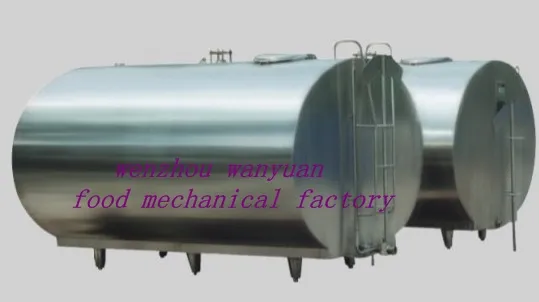

Picture of horizontal Milk Cooler Chiller:
5t and 10t Can Be Customized Milk Chiller Machine Milk Cooling Tank

Usage of Milk Cooler Chiller
Vertical Milk Cooler Chiller and Horizontal Milk Cooler Chiller can be used to storing and Cooling fresh raw milk on farms, as well as fluid in small milk depot, dairy plant, food, feed, as well as Pharmaceutical plants.

Milk Cooler Chiller structure
The Milk Cooler Chiller is mainly composed of the body, agitator, cooling unit and electric Control cabinet. The Milk Cooler Chiller body is made of stainless steel, with precision Polish, good looking, easy to clean and corrosion resistance.
Outside the inner layer of the Milk Cooler Chiller is a kind of jacket as the picture below. This kind of dimple jacket will send the coolant to all part of the Milk Cooler Chiller is shortest time.
Out side this dimple jacket, there is a layer of heat preservation. This insulation layer will help to keep the milk in a low level.

Here below is the Milk Cooler Chiller specification

Milk cooling tanks specification
Model	Capacity(L)	Cooling capacity(W)	Stirring speed ( R/MIN)	Match power(KW)	dimension(LMH)
MCT-0.5	500	3500	36(24)R/MIN	1.5	220013501150
MCT-1	1000	6900	36(24)R/MIN	3	275011501500
MCT-1.5	1500	10000	36(24) R/MIN	4	300013501550
MCT-2	2000	13000	36(24)R/MIN	5	320015001600
MCT-3	3000	17800	36(24)R/MIN	6.5	350016501700
MCT-5	5000	34000	36(24)R/MIN	13	400019502000
MCT-6	6000	34000	36(24)R/MIN	13	420022002100
MCT-8	8000	42000	36(24)R/MIN	18	480024002400
MCT-10	10000	65000	36(24)R/MIN	24	500026002500
