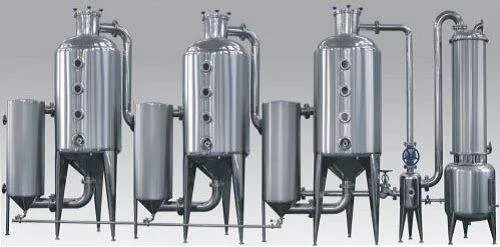

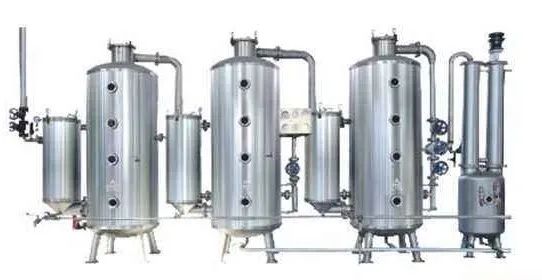

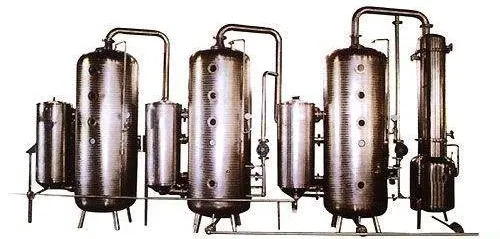

Tri-Effect Stainless Recyclable Concentrator for Food

1, Usage & characteristic:
This machine is widely used in the traditional herb ,western medicine,food chemical field for the liquid products concentrator ,the final concentrated material concentration can reach to 1.2

2, Structure:
This machine including evaporate tank,second effect heating tank,third sub-cooler ,collection tan the following unit : first effect heating tank ,first effect effect heating tank,second effect evaporate tank, third effect evaporate tan kgas/ water separater, condenser, k and pipeline.

3, Machine operation mode:
Manual operation &automatic operation

4, Principle &characteristic:
• This machine is adopted outside heating circulation and vacuum condition,the inside material can be heat well and evaporated efficient fast.
All the system design according to GMP standard ,heating tank and evaporate tank have the CIP unit ,the temperature & vacuum pressure can display on line.
•This machine have the big sight glass to inspect inside material evaporate status.
•Water/gas separater can reduce the material lost under the evaporate process.
•this machine can be feed raw material ,out put final products and take sample online continous
• According to the process ,we can use the PHE type cooling unit instead of the sheH& tube condenser for the good cooling efficient.

5, Spec and main technical parameters Models above just for reference, all of them are customizable.
