1, Usage:
This vacuum concentrator is mainly used for Heat sensitive materials Low- temperature vacuum concentration, also suit for Containing organic solvent material of common concentration and solvent recovery.
2, Technical characteristics:
• Liquid materials in the device fully enclosed evaporation and concentration, meet the requirements of GMP.
• Evaporation fast, the proportion of extraction can reach 1 .2(measured heat) .
• The organic solvent recovery rate can reach above 95%.
• The all-glass manhole design can be clearly observed internal extract concentrated proccess.
• The vapor-liquid separator can substantially reduce the loss of the active ingredient in gas and liquid entrainment.
3, Structure

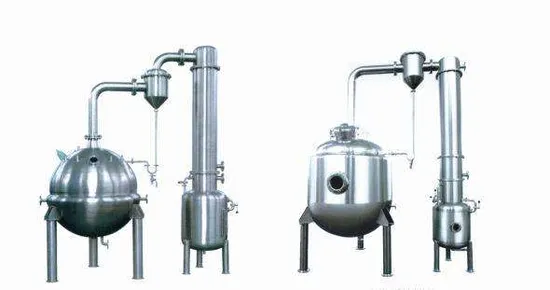

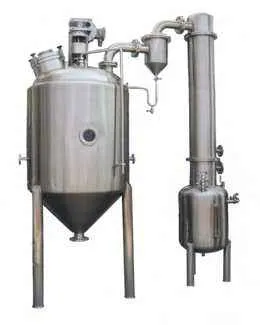

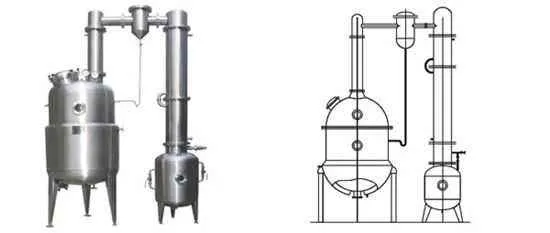

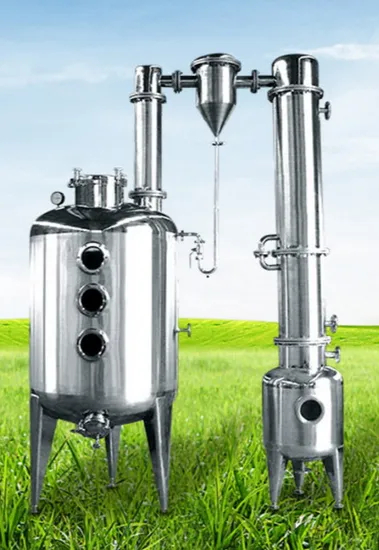

This equipment mainly consist heating tank, tube condenser, sub cooler, liquid receiving tank and vapor-lipquid separator
4, Sped and main technical standards:
Model
Parameter | ZN50 | ZN100 | ZN200 | ZN300 | ZN500 | ZN700 | ZN1000 | ZN2000 |
| Evaporate capacity:L | 20 | 40 | 60 | 80 | 100 | 130 | 160 | 350 |
| Jacket steam pressure:MPa | <0.25 |
| Heating area(m2) | 0.4 | 0.8 | 1 | 1.3 | 1.5 | 2.0 | 2.5 | 5.5 |
| Condenser area(m2) | 1.2 | 2.5 | 3.6 | 4.5 | 6 | 7.5 | 10 | 21 |
| Sub-cooler area(m2) | 0.25 | 0.5 | 0.75 | 1 | 1.25 | 1.5 | 2 | 4 |
| Collection tank volume | 15 | 45 | 60 | 76 | 100 | 200 | 300 | 500 |
| Steam consumption:kg/h | 23 | 46 | 70 | 92 | 115 | 150 | 185 | 403 |
| Vacuum pressure | 0.08 |
| Pressure vessel type | Class 1 |
| Total weight:kg | 410 | 470 | 605 | 715 | 862 | 1015 | 1250 | 2600 |
| Dimension:mm | 1200*600
*2200 | 1350*750
*2200 | 1700*800
*2700 | 1800*950
*2850 | 2100*1200
*3400 | 2400*1300
*3400 | 2390*1300
*3720 | 2730*1500
*4700 |
