1, Usage:
Alcohol deposition tank suit for the extract which use water extraction from Chinese herbal medicine separation settlement by adding different concentrations of ethanol to get the ingredients which are soluble in water, also soluble in alcohol.
2, Technical characteristics:
•Liquid materials in the device fully enclosed settle ,meet the requirement of GMP.
•Helical blade type mixer with frequency design make the extract and ethanol mixed more sufficiently.
•Rotating fine-tune discharge suit for settlement of various materials, and also to take out the supernatant more completely.
•The stratification can be clearly observed the frarne sight glass in the tank .
•Jacket can inlet chilling water to make the settlement becomes more obvious.
•At the tank upper equipped with cooling coil can effectively avoid the natural sedimentation process materials up and down temperature inconsistencies.
• Pneumatic control slagging door to the smooth discharge of the high viscosity of the sedimentation, reduce the amount of labor intensity.
3, Structure:

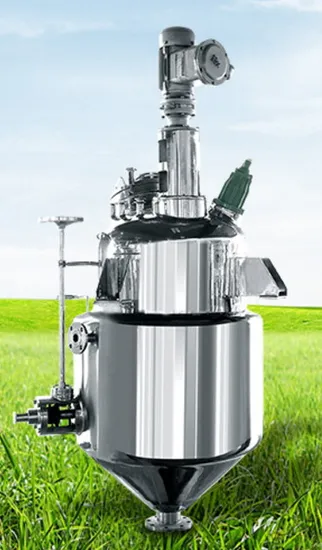

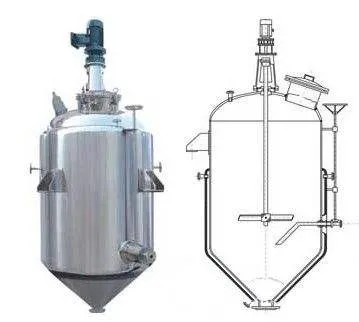

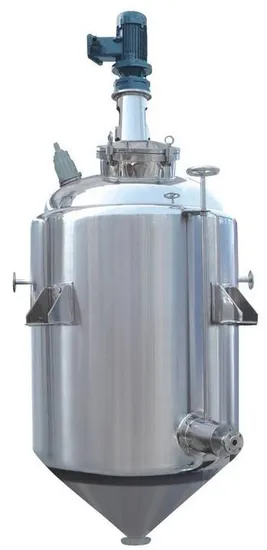

This tank shape is vertical cylindrical body, the upper part is oval-shaped head, the lower part is conical head, cylinder head cooling jacket and insulation. Explosion-proof motor reducer rotating fine-tune type discharge.
Model
Parameter | CCG-300 | CCG-500 | CCG-1000 | CCG-1500 | CCG-2000 | CCG-3000 | CCG-6000 |
| Capacity: m3 | 0.3 | 0.5 | 1.0 | 1.5 | 2.0 | 3.0 | 6.0 |
| Heating exchange area:m2 | 1.6 | 2.8 | 4.2 | 6.1 | 7.5 | 10.0 | 15.5 |
| Internal temperature:ºC | -15~ordinary temperature |
| Jacket pressure:MPa | 0.30 |
| Inner pressure:MPa | -0.08 |
| Stirring speed:RPM | 0~200 |
| Motor power:kw | 0.75 | 1.1 | 1.5 | 2.2 | 2.2 | 4.0 | 7.5 |
| Total weight:Kg | 520 | 880 | 1220 | 1560 | 1880 | 2200 | 3300 |
| Dimension: mm | 800*1900 | 900*2300 | 1100*2800 | 1200*3300 | 1300*3700 | 1500*400 | 1800*5300 |
