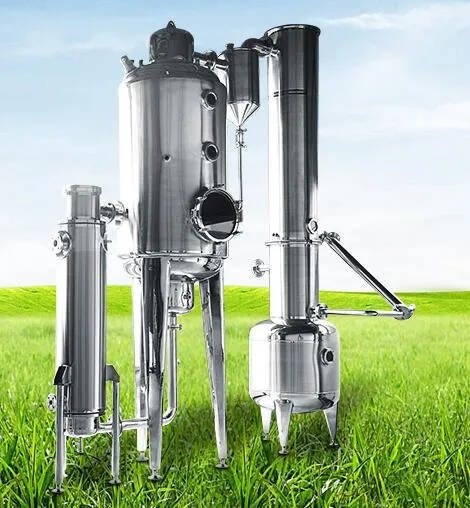

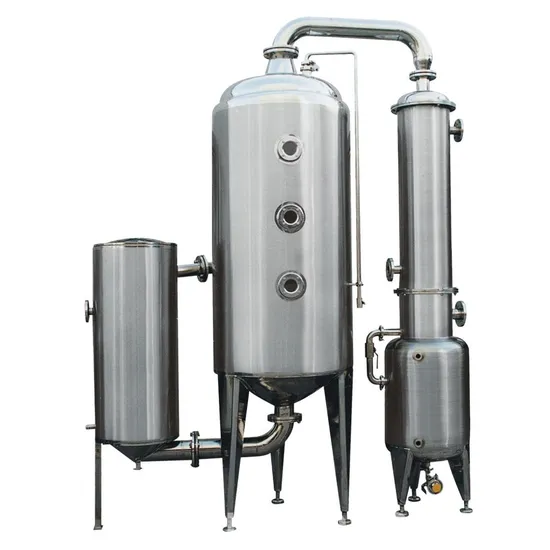

Stainless Recyclable Single Effect Concentrator

1, Usage &characteristic:
This machine is widely used in the traditional herb ,western medicine,food, chemical field for the liquid products concentrator and solvent (eg: alcohol) recovery ,the final concentrated material concentration can reach to I.2.

2, Structure:

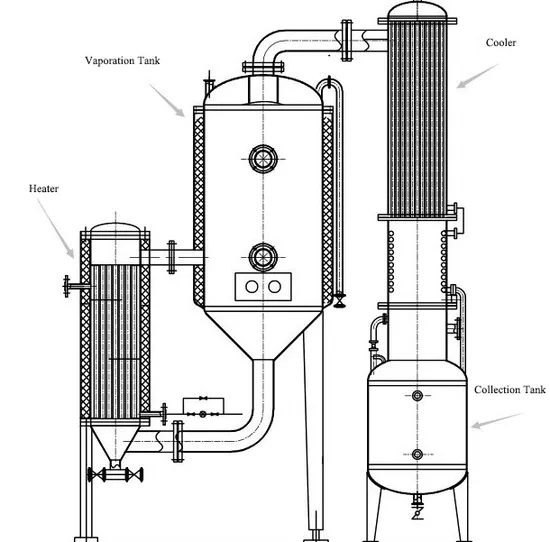

This machine including the following unit : heating tank ,evaporate tank ,gas/water separater, condenser,sub-cooler ,collection tank and pipeline.

3, Machine mode:
•machine operation mode:manual operation &automatic operation.
• machine heating mode: steam heat model( heating temperature 135°C) & water bath heating model( heating temperature6O°C,special for the blo-medicine and temperature sensitive products).

4, Principle &characteristic:
• This machine is adopted outside heating circulation and vacuum condition,the inside material can be heat well and evaporated efficient fast.
• All the system design according to GMP standard ,heating tank and evaporate tank have the CIP unit,the temperature & vacuum pressure can display on line.
• This machine have the cooling unit,it can be got high concentration solvent .the solvent rec overy ratio can reach to 95%. •This machine have the big sight glass to inspect inside material evaporate status.
Water/gas separater can reduce the material lost under the evaporate process.
•This machine can be feed raw material ,out put final products and take sample online continous.
• According to the process ,we can use the PHE type cooling unit instead of the shell& tube condenser for the good cooling efficient.

5,Spec and main technical standards
