1, Overview:

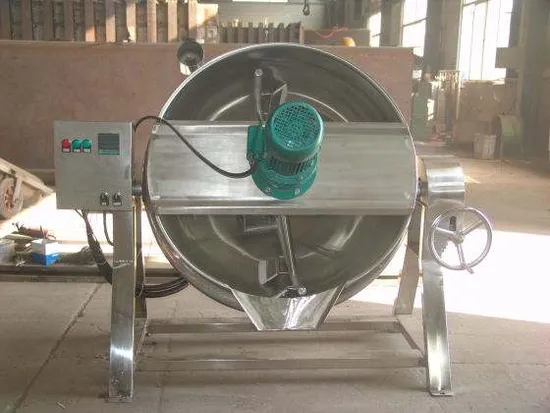

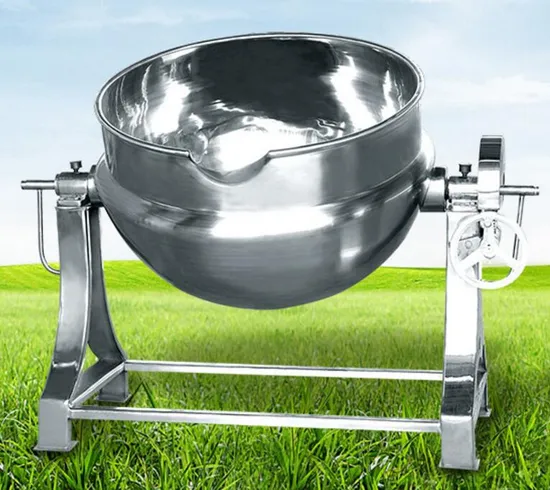

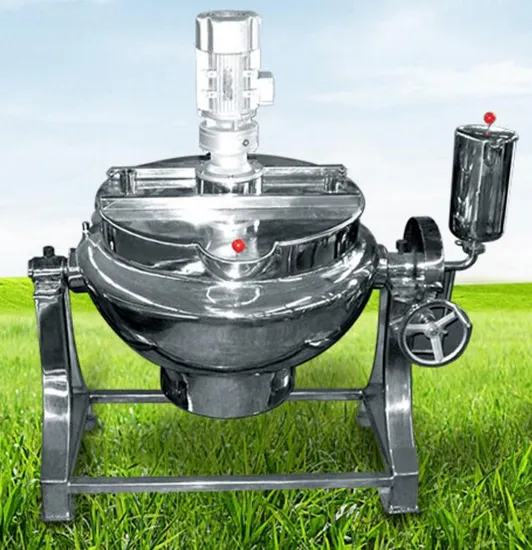

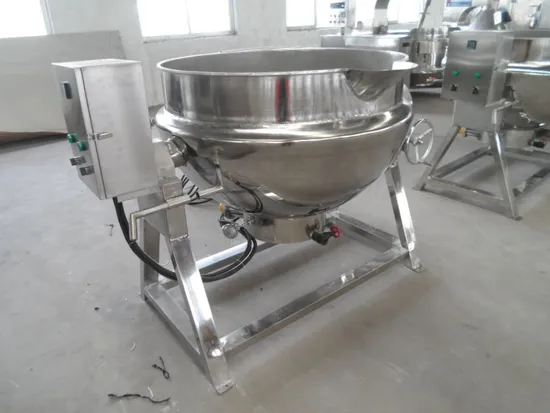

This equipment is used widely for pharmacy,food,chemical industry, to cook, boiling , concentrator. according to client requirement : it can use hot steam and electrical heating sources .also it can add the agitator and cover ,manual tilting system etc.aII depend on the process requirement. This equipment consist of jacket kettle, stir device, worm wheel and worm rod. the jacket kettle can be rotated within 180 degree. all the materials in contact with media used stainless steel featuring good anti--corrosion and duraility. which are in accordance with GMP standard.
2, Spec and technology parameter
Model
Parameter | AJ50 | QJ100 | QJ150 | QJ200 | QJ300 | QJ400 | QJ500 |
| Capacity:L | 50 | 100 | 150 | 200 | 300 | 400 | 500 |
| Jacket Pressure:MPa | <0.2 |
| Evaporate capacity:kg/h | 30 | 40 | 50 | 65 | 75 | 100 | 150 |
| Heat area:m2 | 0.4 | 0.45 | 0.76 | 1.0 | 1.15 | 1.44 | 1.9 |
| Energy consumption:kg/h | 33 | 44 | 55 | 72 | 90 | 110 | 165 |
| Total weight:Kg | 170 | 190 | 210 | 230 | 320 | 360 | 485 |
| Dimension:mm | 720*600*830 | 800*650*950 | 1350*650*950 | 1400*700*1100 | 1450*800*1110 | 1500*850*1140 | 1600*900*1150 |
Models above just for reference, all of them are customizable.
