1, Usage:
This machine concentration concentration pipe block an the food field is our company new developed machine special for the high herb extractor ointment and the final concentrated ointment can reach 1.4 ,it can resolve the single effect concentrator heating d stick problem at the concentration is 1.2. Also it is widely used in ,Iike the tomato paste ,ketchup and fruit sauce etc.
2, Characteristic:
• This machine is with a scraper mixer ,it can make inside material move ,the material will not block the heat exchange.
• The scraper mixer can avoid the material stick to the wall and burn in the wall ,so it can keep material in high quality.
• The concentrator have a reasonable evaporate space ,it can avoid the evaporate gas take the material out ,so the final products can keep in a good quality. .
• The scraper mixer can clean the inside wall of machine ,so it can make the high output.
• This machine have the CIP spray ball ,it can wash inside easily and fit to GMP Standard.
•Thi machine have the big sight glass in the tank ,it can be easy for the operator to inspect inside material.
3, Structure:

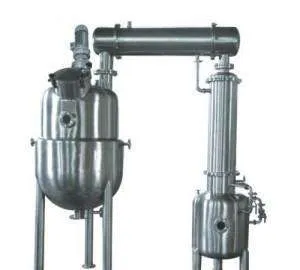

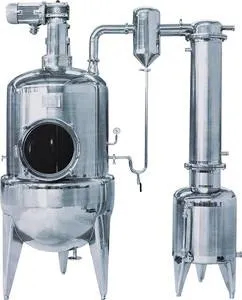

This machine including the following unit: heating tank (concentrator tank ),condenser, collection tank water/gas separater and the FDA grade PTFE scraper
4, Spec and main technical standards
| Item | Unit | GZ-300 | GZ-500 | GZ-1000 |
| Jacket pressure | MPa | 0.25 | 0.25 | 0.25 |
| Inside pressure | MPa | -0.08 | -0.08 | -0.08 |
| Heating area | M2 | 1.0 | 1.52 | 2.45 |
| Cooling area | M2 | 5.2 | 8 | 10 |
| Motor power | Kw | 1.1 | 1.5 | 2.2 |
| Dimension | mm | 1900*900*2825 | 2050*1000*2875 | 2150*1200*2925 |
