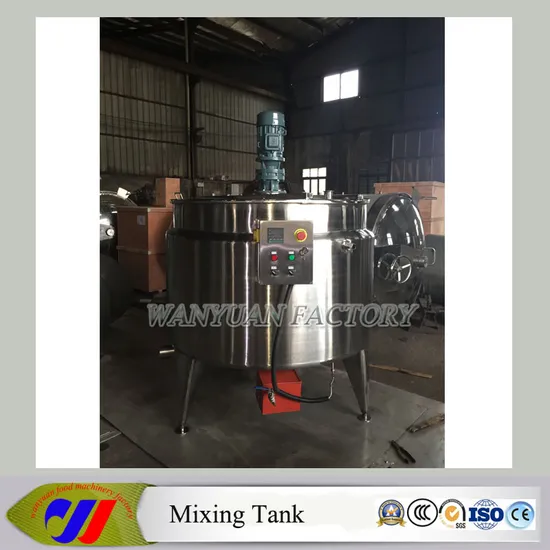

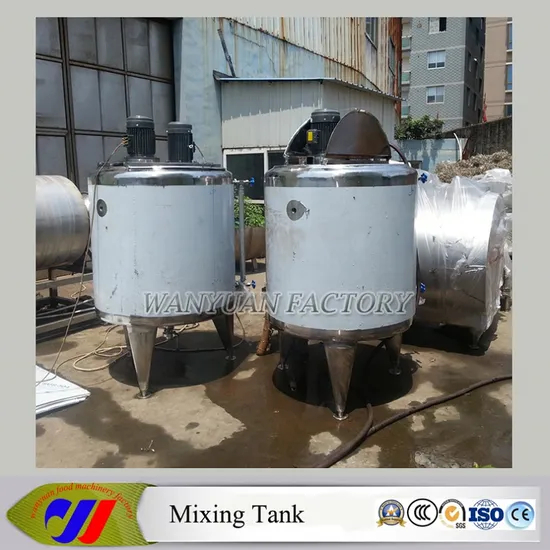

Stainless Steel Liquid Mixing Tank Blending Tank

Customization:	Available
Additional Capabilities:	Milling
Application:	Liquid with Suspended Solids, Viscous Fluid, Liquid, Liquid

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

LRG-1000

Certification

CE, ISO

Condition

New

Main Material

Stainless Steel

Mixing Drum Shape

Conical

Stirring Type

Spiral

Working

High Speed Mixer

Usage

Mixing and Heating

Capacity

1000L

Material

Stainless Steel 304

Structure

Open or Closed with Manhole

Heating Mode

Steam Heating/ Gas Heating/ Electric Heating

Number of Layer

Two Layers/ Three Layers

Type of Insulation

PU

Mixing Speed

36/120/2800rpm

Motor Power

1.5/2.2/5kw

Mixer Type

Agitator

Layout Type

Verticle

Operating type

Cycle Operating

Transport Package

Wooden Case

Specification

SUS304

Trademark

Wanyuan

Origin

Wenzhou China

HS Code

8479819000

Production Capacity

5000

Product Description

Stainless Steel Liquid Mixing Tank Blending Tank (LRG500)
1. Made of stainless steel 304 or 316
2. Mixing milk, juice, or any other viscous liquid
3. Customized mixing tank capacity

Stainless Steel Liquid Mixing Tank Blending Tank (LRG500)
Blending Tank <mixing tanks> mainly made of stainless steel, used for blending different liquid together.
Also, you can use this blending tanks to mix liquid and power to make a mixture.
Blending tanks can be with different mixing speed. Such as 36rpm, 60rpm fixed mixing speed. But due to some production reqeust, you may need the blending tanks with variable speed, such as 8 to 140rpm, 40 to 200rpm mixing speed, or 200 to 1000 rpm mixing speed. In special reqeust, we can use VFD<Variable Frequency Drive> to meet your special mixing speed request.
Blending motor:

Wenzhou wanyuan food machinery factory mainly produce stainless steel blending tanks for milk, juice, beverage, cosmetic, detergent as well as chemical product.

Our Mixing tank capacity can be 50L, 200L, 500L, 2000L or any other capacity you need.
Stainless Steel Liquid Mixing Tank Blending Tank (LRG500)
Wenzhou wanyuan food machinery factory
The below is our blending tank specification:

volume (L)	Dimension (D× h ) (mm)	Total height (mm)	Diameter Of inlet & outlet	Heat preservation layer (mm)
500	840 × 1000	2250	38	60
600	920 × 1000	2300	38	60
700	990 × 1000	2300	38	60
800	950 × 1220	2500	38	60
900	1010 × 1220	2500	38	60
1000	1060 × 1220	2550	51	60
1500	1160 × 1500	2850	51	60
2000	1340 × 1500	2900	51	60
3000	1410 × 2000	3400	51	60
4000	1620 × 2000	3450	51	60
5000	1810 × 2000	3500	51	60
