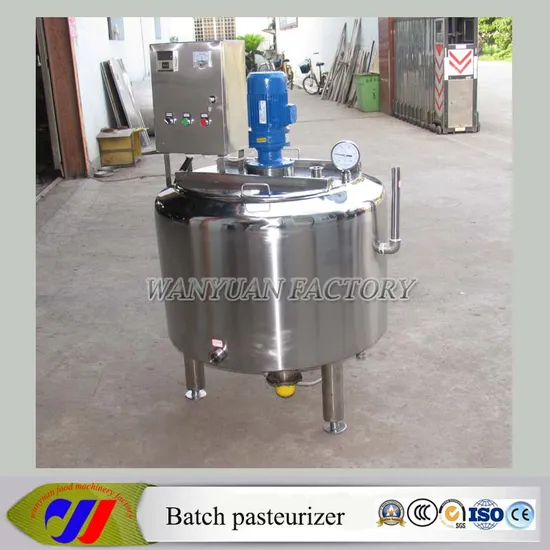

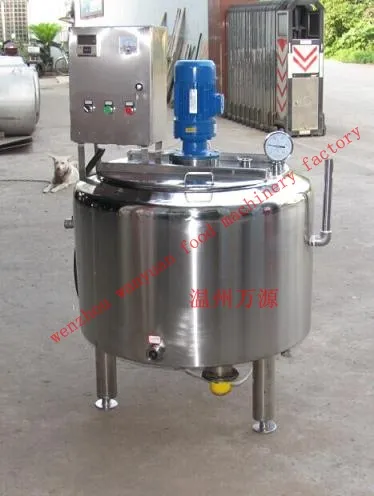

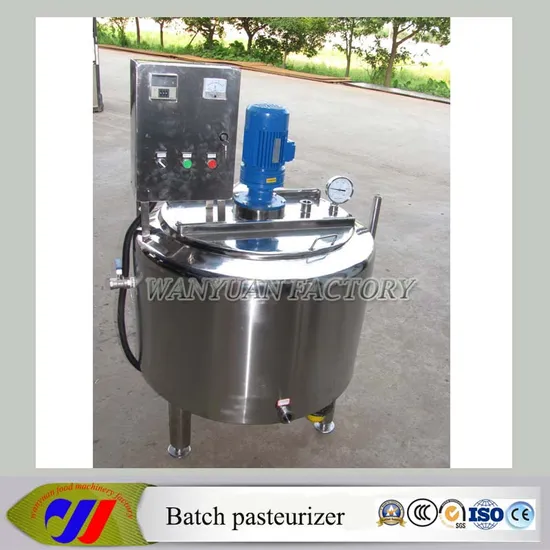

200L electric heating mixing tank
1. Made of stainless steel 304/316
2. Used to mixing liquid product
3. Mixing speed can be customized: 100L-10T
Electric heating mixing tank Capacity: 100-1000L customized
Suitable Temperature.: 0-180 celsium degree or higher upon requirement
Power supply: 380V/50Hz/3Phase or customized
Construction Material: 304/316L optional
Structure: 3 layers(inner layer, jacket, insulation layer)
Surface: Inner/outer polished
Application: Can be used to mix and melt all kinds of materials in industries like pharmacy, cosmetics, chemicals, resins, paintings, confectionary, pigments and etc...
Mixing tanks is an ideal one for mixing and emulsifying process applied by the trades of medicine, chemical and foodstuff.
TIPS:
We are manufacture of stainless steel mixing tank steam heating or electric heating.
If you are in need of any tanks, please let me know your detail request, so that we can customized the tank for you.
Wenzhou wanyuan food machinery factory- - Mixing tank
The below is Mixing tank specifications:
| volume (L) | Dimension
(D× h ) (mm) | Total height (mm) | Diameter Of inlet
& outlet | Heat preservation layer (mm) |
| 500 | 840 × 1000 | 2250 | 38 | 60 |
| 600 | 920 × 1000 | 2300 | 38 | 60 |
| 700 | 990 × 1000 | 2300 | 38 | 60 |
| 800 | 950 × 1220 | 2500 | 38 | 60 |
| 900 | 1010 × 1220 | 2500 | 38 | 60 |
| 1000 | 1060 × 1220 | 2550 | 51 | 60 |
| 1500 | 1160 × 1500 | 2850 | 51 | 60 |
| 2000 | 1340 × 1500 | 2900 | 51 | 60 |
| 3000 | 1410 × 2000 | 3400 | 51 | 60 |
| 4000 | 1620 × 2000 | 3450 | 51 | 60 |
| 5000 | 1810 × 2000 | 3500 | 51 | 60 |
