1t Gas Heating Double-Layer Mixing Vessel

Customization:	Available
Additional Capabilities:	Milling
Application:	Liquid with Suspended Solids, Viscous Fluid, Liquid

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

MXT-1000

Certification

CE

Condition

New

Mixing Drum Shape

Disc

Stirring Type

Spiral

Working

Fixed Mixer

Capacity

1000L

Material

SUS304

Heating Mode

Gas Heating

Structure

Double-Layer, Open on The Both Sides

Mixing Speed

80rpm

Mixer Type

Agitator

Layout Type

Verticle

Operating type

Cycle Operating

Transport Package

Wooden Case

Specification

CE ISO

Origin

Wenzhou China

HS Code

8479819000

Production Capacity

5000

Product Description

1T Gas heating Double-layer mixing vessel

Production specification of our mixing vessl as follows, please reference:
1. capacity: 100L-5000L can be customized;
2. Heating mode: steam heating, electric heating, gas heating and hot water;
3. Structure: single-layer, double-layer or tri-layer;
4. mixer speed: 36rpm, 80rpm, 120rpm, 1400rpm or 2800rpm...
5. Material: SUS304, SUS316

Mixing Vessel <mixing tanks> mainly made of stainless steel, used for mixing different liquid together.
Also, you can use this mixing vessel to mix liquid and power to make a mixture.
Mixing vessel can be with different mixing speed. Such as 36rpm, 60rpm fixed mixing speed. But due to some production reqeust, you may need the mixing tanks with variable speed, such as 8 to 140rpm, 40 to 200rpm mixing speed, or 200 to 1000 rpm mixing speed. In special reqeust, we can use VFD<Variable Frequency Drive> to meet your special mixing speed request.

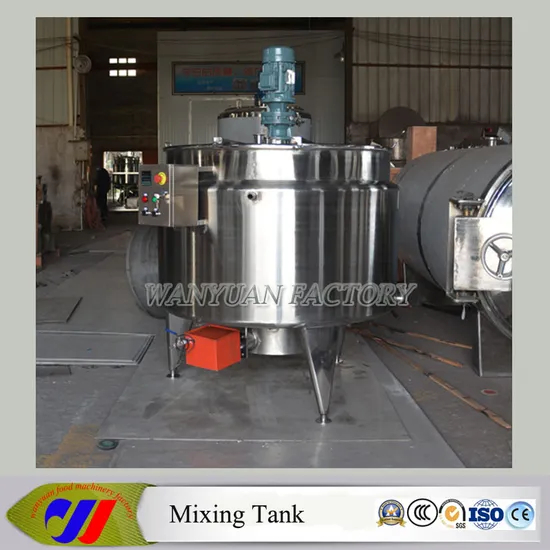

1t Gas Heating Double-Layer Mixing Vessel

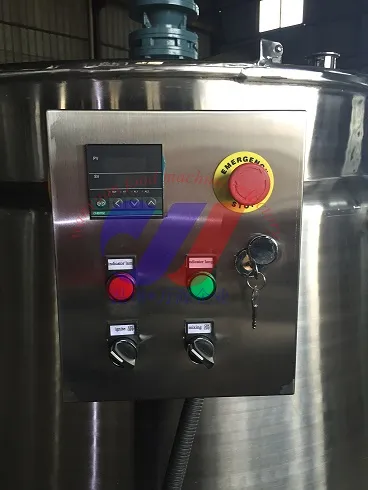

CONTROL PANEL

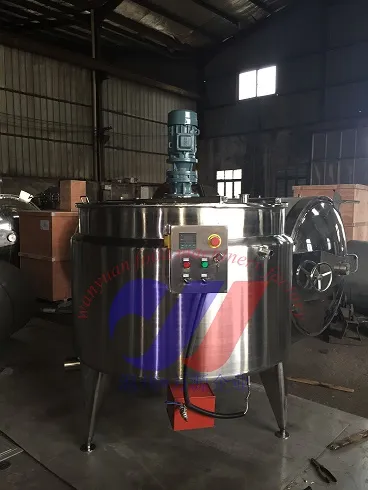

1t Gas Heating Double-Layer Mixing Vessel

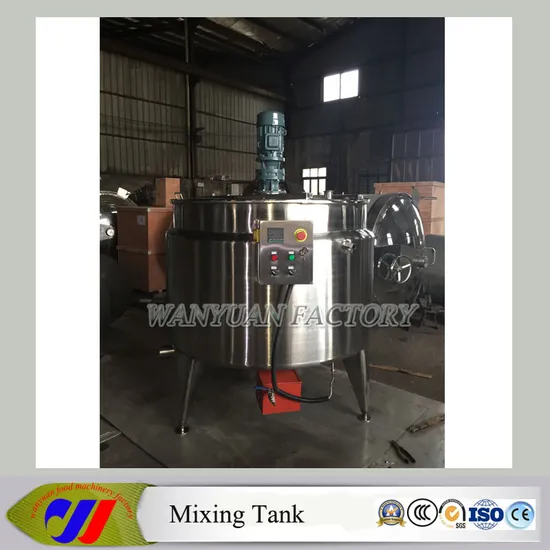

This is 500L tri-layer structure

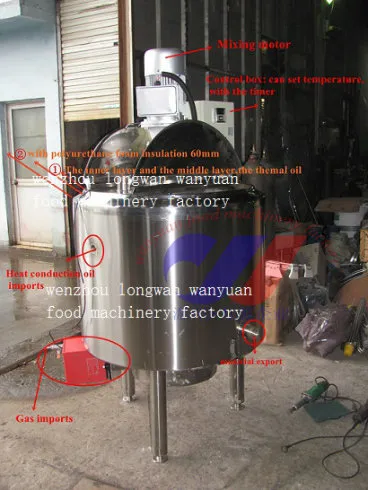

1t Gas Heating Double-Layer Mixing Vessel

Wenzhou wanyuan food machinery factory mainly produce stainless steel mixing tanks for milk, juice, beverage, cosmetic, detergent as well as chemical product.

Wenzhou wanyuan food machinery factory- Mixing tank / Stirred tank
Our Mixing tank capacity can be 50L, 200L, 500L, 2000L or any other capacity you need.

volume (L)	Dimension (D× h ) (mm)	Total height (mm)	Diameter Of inlet & outlet	Heat preservation layer (mm)
500	840 × 1000	2250	38	60
600	920 × 1000	2300	38	60
700	990 × 1000	2300	38	60
800	950 × 1220	2500	38	60
900	1010 × 1220	2500	38	60
1000	1060 × 1220	2550	51	60
1500	1160 × 1500	2850	51	60
2000	1340 × 1500	2900	51	60
3000	1410 × 2000	3400	51	60
4000	1620 × 2000	3450	51	60
5000	1810 × 2000	3500	51	60
