Stainless Steel Honeycomb Jacketed Conical Beer Fermenter

Customization:	Available
Condition:	New
Customized:	Customized

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WY

Composition

Fermentation,Mixer

Processing Material

Natural Ingredients

Process

Ferment

Material

Ss304/316

Fermentation Capacity

300-15000L

Structure

Conical Jacket

Processing Types

Carbonated Beverage

Transport Package

Wooden Case

Specification

SUS304

Trademark

Wanyuan

Origin

Wenzhou China

HS Code

8479819000

Production Capacity

5000

Product Description

Stainless Steel honeycomb Jacketed Conical Beer Fermenter

Fermenter Application:

1. Used as storage and fermentation tank in wine, dairy, etc industries;
2. Applicable in the filed of food, dairy, juice, chemical and biological fields.

Beer fermenter description:
Beer fermenter is made of stainless steel; inner surface contact to beer directly.
There is a heat preservation (you can call it heat preservation layer or thermal insulation layer).
Usually deploy the beer on the dispensing tank, then transfer to the beer fermentation tank start to fermentation.
Of course, you can add a heating jacket with steam heating, set the heating temperature and keep your beer holding in the same temperature.

Fermenter Structure:
1. Can be customized according to customer needs.
2. Material used sanitary stainless steel.
3. Three layer strcture: Inner body, jacket and insulated, insulated layer filled with insulation material.
4. Conical bottom shape, cooling jacketed could adopt dimple jacketed, arched and corrugated access jacket.

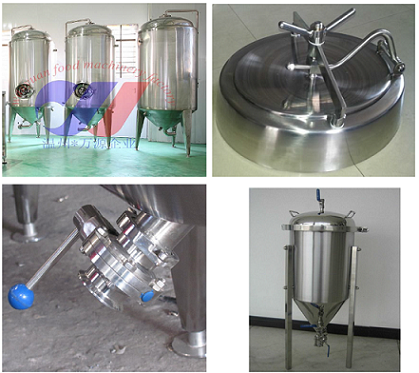

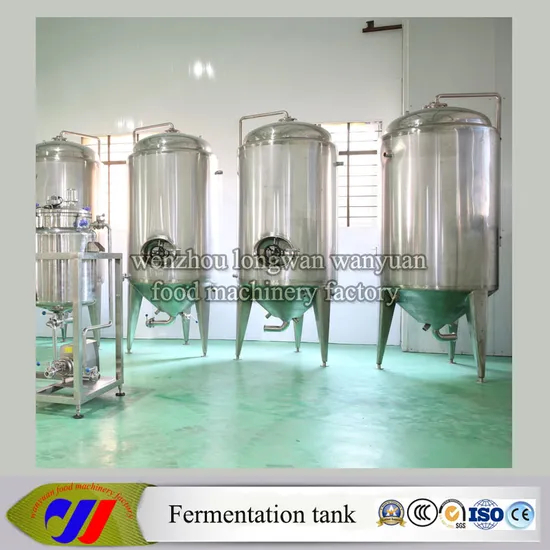

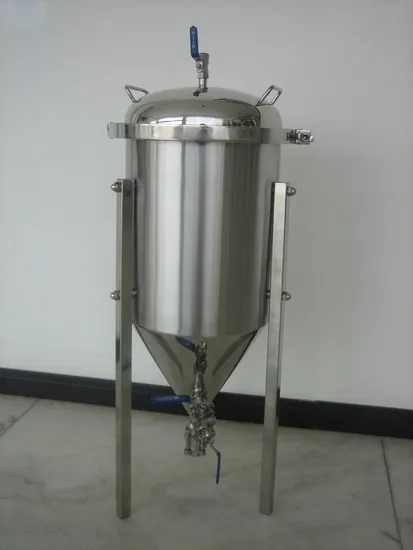

Beer Fermenter picture:
Stainless Steel Honeycomb Jacketed Conical Beer Fermenter

Beer Fermenter specification:

100L ~100m ³ Beer fermenter specification as below:

Capacity	Mixing speed	Working design	Design pressure	Motor power	Temperature ºC
Capacity	Mixing speed	(MPa)		Motor power	Temperature ºC
100L	110-220	0.15	0.30	0.37	≤120ºC
200L	110-220	0.15	0.30	0.5	≤120ºC
300L	110-220	0.15	0.30	0.5	≤120ºC
500L	110-220	0.15	0.30	0.75	≤120ºC
600L	110-220	0.15	0.30	0.75	≤120ºC
800L	110-220	0.15	0.30	1.1	≤120ºC
1000L	110-220	0.15	0.30	1.1	≤120ºC
2000L	110-220	0.15	0.30	2.2	≤120ºC
3000L	110-220	0.15	0.30	3.0	≤120ºC
5000L	110-220	0.15	0.30	3.0	≤120ºC
8000L	110-220	0.15	0.30	4.0	≤120ºC
10m3	110-220	0.15	0.30	5.5	≤120ºC
20m3	110-220	0.15	0.30	5.5	≤120ºC
40m3	110-220	0.15	0.30	7.5	≤120ºC
60m3	110-220	0.15	0.30	7.5	≤120ºC
100m3	110-220	0.15	0.30	10.0	≤120ºC
