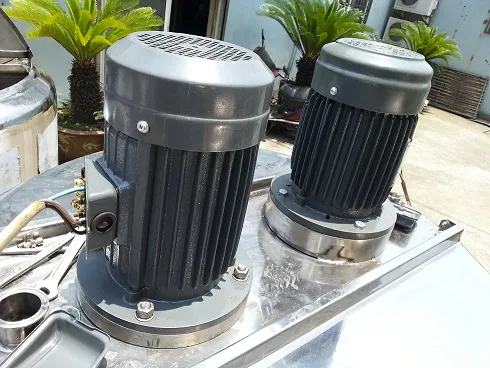

500L Double Motor High Shear Emulsification Tank

Customization:	Available
Additional Capabilities:	Milling
Application:	Liquid with Suspended Solids, Liquid

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WYES-500

Certification

CE

Condition

New

Mixing Drum Shape

Disc

Stirring Type

Spiral

Working

High Speed Mixer

Mixing Speed Option 1

Fixed Speed Such 36rpm 60rpm, 110rpm

Mixing Speed Option 2

8-140rpm

Mixing Seed Option 3

40-200rpm

Speed Option 4

200-1000rpm

Mixer Type

Agitator

Layout Type

Verticle

Operating type

Cycle Operating

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

Emulsifying tank shear emulsification tank
500L emulsifying tank stainless steel high shear mixing tank

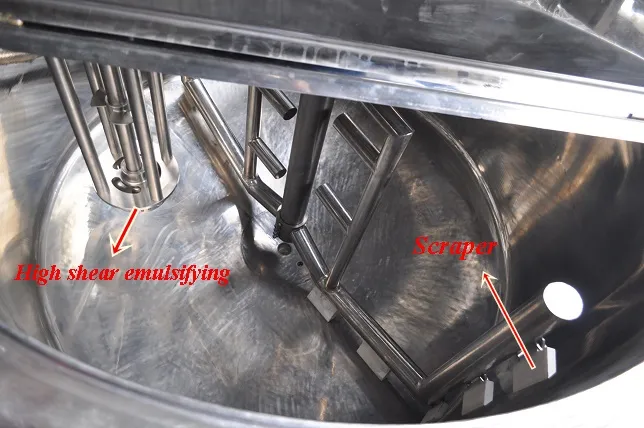

high speed sheer mixer fitted along with slow running agitator

500L emulsifying tank stainless steel high shear mixing tank high speed sheer mixer fitted along with slow running agitator
Made into 3 layers, inner layer was the contact part with your raw material such as milk, juice or any other liquid product… Outside the inner layer, there is a heating / cooling jacket for steam or hot water / cooling water. Then comes the outer shell. Between outer shell and the jacket, there is a 50mm thickness temperature preservation layer.
All of the 3 layers of the aging tank are made of stainless steel 304.

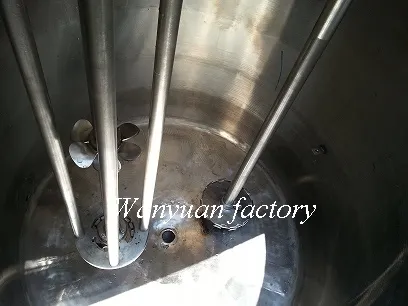

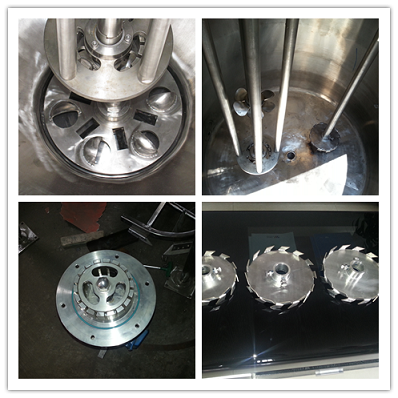

Agitator and Impeller can be customized according to your products or mixing speed
Please refer to the picture below:

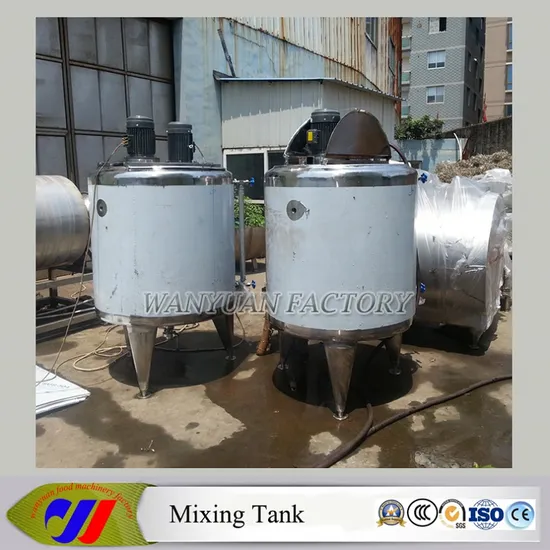

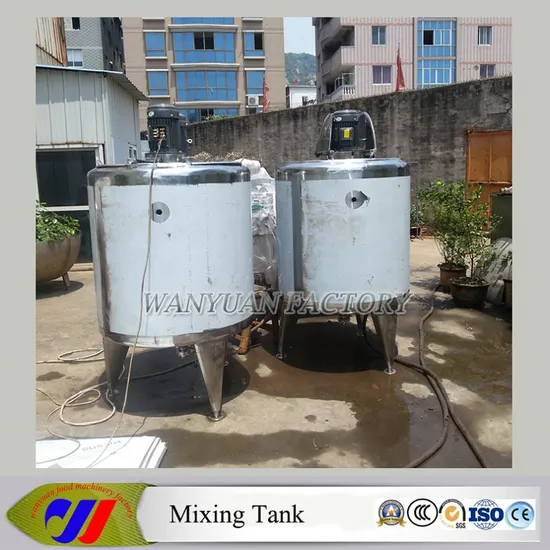

500L Double Motor High Shear Emulsification Tank

Emulsification Tank/ Mixing tank specification:

Model	LRG-1T	LRG-2T
Capacity	1000Liter	2000Liter
Construction material	AISI304	AISI304
Design pressure	0.3Mpa	0.2Mpa
Working pressure	0.25Mpa	0.25Mpa
Design temperature	171 degree C	171 degree C
Working temperature	110 degree C	110 degree C
Heating medium	Steam / hot water	Steam / hot water
Cooling medium	Tap water / ice water	Tap water / ice water
Mixing speed	3000rpm / 960rpm	3000rpm / 1450rpm
Mixer type	high shear mixer / disperser	high shear mixer / disperser
Motor power	3kw	5.5kw
Dimension	Φ 1300 ×2100mm	Φ 1500 ×2300mm
