Stainless steel mixing tank with wheels (with cooling jacket)
200L movable mixing tank
Jacketed mixing tank tank / movable tank with castor
used as mixing tank, buffer tank, storage tank, cooling tank or heating tank
movable with wheels
With cooling and heating jacketed
Layer for heat preservation / thermal insulation layer
Tiltable by hand wheel or by electric <JOG discharge>
200Liter tiltable, cylindric jacketed tank for cooling and heating
Contact part made of SS304 food grade
Movable mixing motor

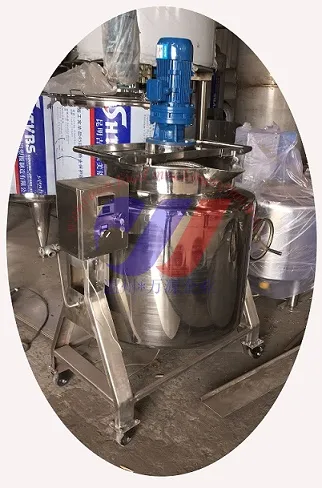

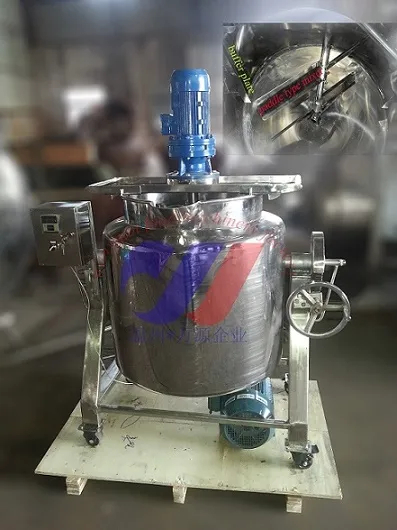

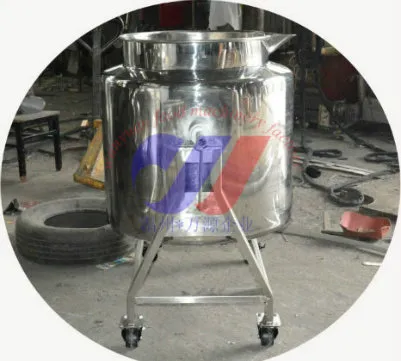

Pictures of storage tank:
This is specification of Mixing storage tank: | No. | Capacity | 100L | 200L | 300L |
| 1 | Inner diameter | 520mm | 640mm | 740mm |
| 2 | Jacketed diameter | 620mm | 740mm | 840mm |
| 3 | Outer diameter | 720mm | 840mm | 940mm |
| 4 | Inner height | 500mm | 640mm | 700mm |
| 5 | Total height | 1000mm | 1150mm | 1200mm |
| 6 | Material | SUS304 | SUS304 | SUS304 |
| 7 | Thickness | 3/3/1.5mm | 3/3/1.5mm | 3/3/1.5mm |
| 8 | Castor | Yes | Yes | Yes |
| 9 | Discharge mode | Manual/ Electric | Manual/ Electric | Manual/ Electric |
Stainless steel mixing tank with wheels
