Holding Tank for Beverage Processing

Customization:	Available
Application:	Milk, Yogurt, Beverages
Customized:	Customized

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WANYUAN

Capacity

100L-3000L

Material

Stainless Steel 304/316

Thickness

2-5mm

Layer Number

Single/ Double/ Tri-Layer

Mixing Speed

36rpm/120rpm/ 1980rpm

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

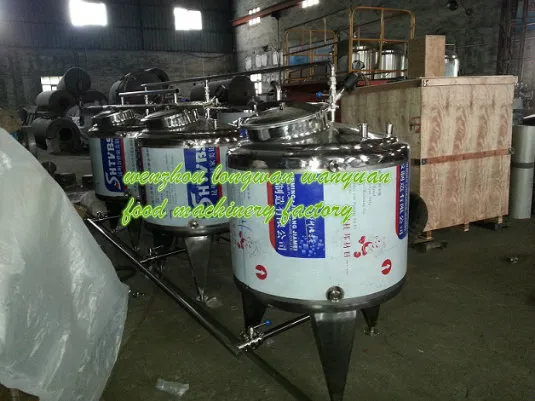

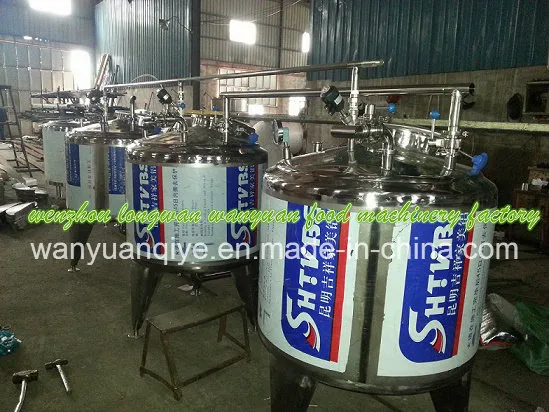

Holding tank for beverage processing

Use for buffer beverages in the processing line, also can used as a fermentation tank, of course increase a set of motor, its a mixing tank.

The specifications can be customized according to your requirements.
Holding tank-Mixing tanks Applications
Mainly used in a mixture of liquid materials, such as fruit juice, milk and so on.

Holding tank-Mixing Tank <Blending tanks> mainly made of stainless steel, used for Mixing different liquid together.
Also, you can use this mixing tanks to mix liquid and power to make a mixture.
Mixing tanks can be with different mixing speed. Such as 36rpm, 60rpm fixed mixing speed. But due to some production reqeust, you may need the blending tanks with variable speed, such as 8 to 140rpm, 40 to 200rpm mixing speed, or 200 to 1000 rpm mixing speed. In special reqeust, we can use VFD<Variable Frequency Drive> to meet your special mixing speed request.

Holding Tank for Beverage Processing

volume (L)	Dimension (D× h ) (mm)	Total height (mm)	Diameter Of inlet & outlet	Heat preservation layer (mm)
500	840 × 1000	2250	38	60
600	920 × 1000	2300	38	60
700	990 × 1000	2300	38	60
800	950 × 1220	2500	38	60
900	1010 × 1220	2500	38	60
1000	1060 × 1220	2550	51	60
1500	1160 × 1500	2850	51	60
2000	1340 × 1500	2900	51	60
3000	1410 × 2000	3400	51	60
4000	1620 × 2000	3450	51	60
5000	1810 × 2000	3500	51	60
