Small Mixer Stainless Steel Mixing Tank Agitator Mixing Vessel

Customization:	Available
Process:	Thermal Processing
Power Source:	Electric

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

MXT-300

Automatic Grade

Manual

Application

Milk, Yogurt, Milk Powder, Cheese

Customized

Capacity

300L

Material

SUS304/316

Structure

Single/ Double/ Tri

Agitator

with

Heating Mode

Electric/ Steam/ Gas

Mixing Speed

Fixed Speed/ Frequency

Heating

Steam Heating/ Electric Heating

Transport Package

Wooden Case

Origin

Wenzhou China

HS Code

8479819000

Production Capacity

5000

Product Description

Mixing agitator mixing tank agitator mixing vessel

Stainless steel mixing tank with agitator

Stainless steel mixing tank Applicable range:

1. This Stainless steel mixing tank can be used as liquid storage tank, mixing tank, buffer tank and blending tank etc.

2. This Stainless steel mixing tank can be used for such fields like foods, dairy, fruit juice, pharmaceutical chemical and biological engineering etc.

Stainless steel mixing tank Features:

1. This Stainless steel mixing tank Adopt the structure of internal tank and external package, with heat preservation materials inside.

2. In this Stainless steel mixing tank All materials are sanitary stainless steels.

3. Humanized structure design of This Stainless steel mixing tank and easy to operate.

4. Transition area of interior wall on this Stainless steel mixing tank adopts arc transition to ensure that no dead ends of sanitation.

This Stainless steel mixing tank Configuration of tank:

1. Quick opening manhole.

2. Various types of CIP cleaners.

3. Sanitary ventilation hood to defend against flies insects.

4. Adjustable triangular bracket.

5. Detachable feeding tubes.

6. Thermometer (According to the customer's requirements).

7. Ladder (According to the customer's requirements).

8. Advancing side blender

9. Level meter and level controller (According to the customer's requirements).

10. Anti-vortex plate.

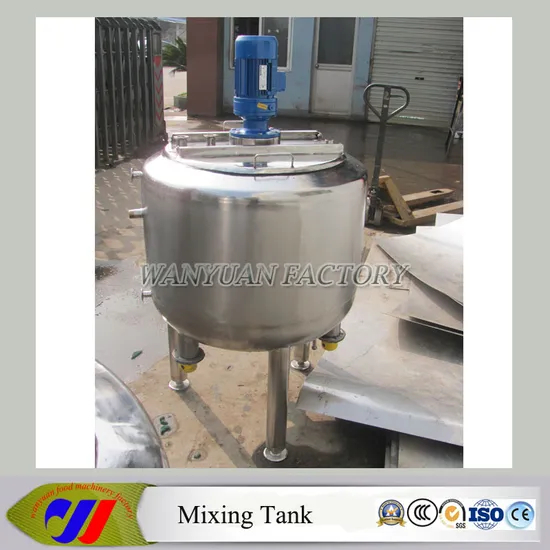

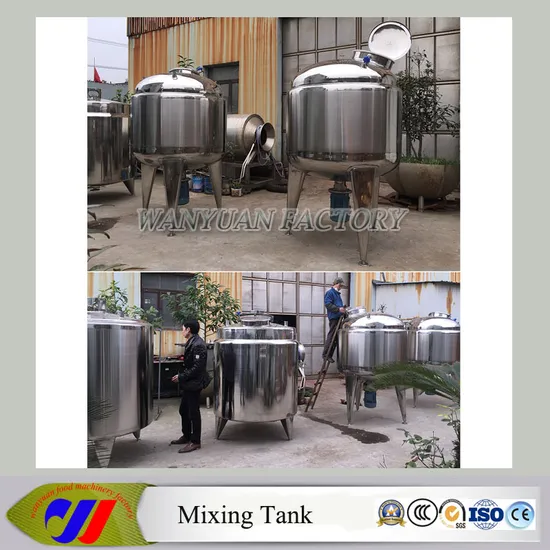

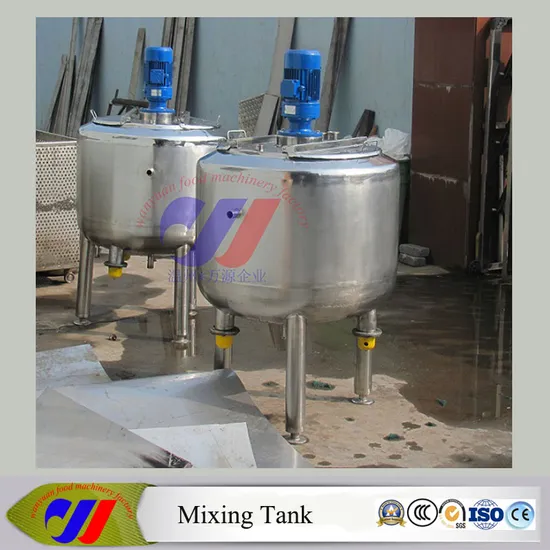

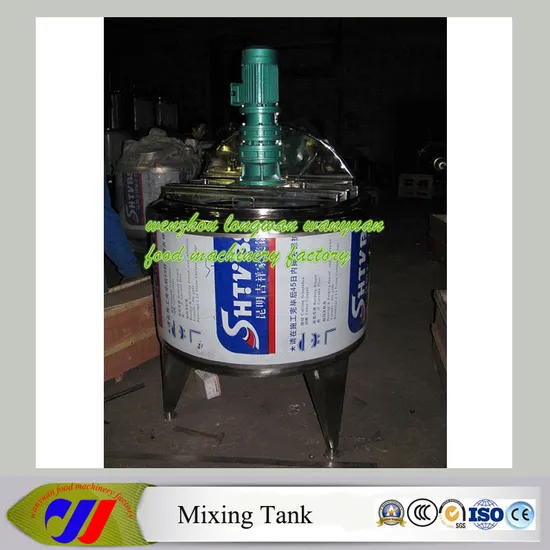

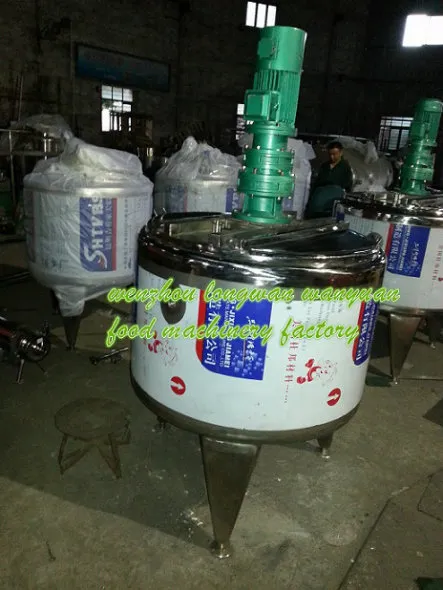

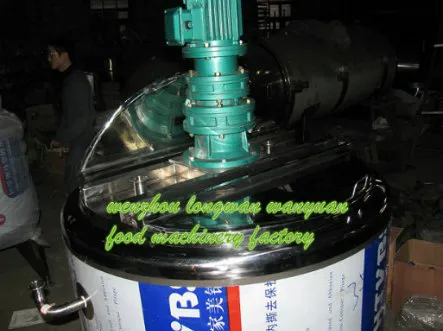

300L stainless steel mixing tank Pictures:
Small Mixer Stainless Steel Mixing Tank Agitator Mixing Vessel

The specification of mixing tank:

volume (L)	Dimension (D× h ) (mm)	Total height (mm)	inlet & outlet	Insulation layer (mm)
500L stainless steel mixing tank	840 × 1000	2250	38	60
600 L stainless steel mixing tank	920 × 1000	2300	38	60
700L stainless steel mixing tank	990 × 1000	2300	38	60
800L stainless steel mixing tank	950 × 1220	2500	38	60
900L stainless steel mixing tank	1010 × 1220	2500	38	60
1000L stainless steel mixing tank	1060 × 1220	2550	51	60
1500L stainless steel mixing tank	1160 × 1500	2850	51	60
2000L stainless steel mixing tank	1340 × 1500	2900	51	60
3000L stainless steel mixing tank	1410 × 2000	3400	51	60
4000L stainless steel mixing tank	1620 × 2000	3450	51	60
5000	1810 × 2000	3500	51	60
6000	1980 × 2000	3550	51	60
7000	1930 × 2440	4000	51	60
8000	2060 × 2440	4000	51	60
9000	2180 × 2440	4050	51	60
10000	2300 × 2440	4050	51	60
12000	2270 × 3000	4600	51	60
15000	2530 × 3000	4700	51	60
20000	2640 × 3660	5400	51	60
