10bbl Biological Fermentation Tank

Customization:	Available
Condition:	New
Customized:	Customized

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WY-1500

Composition

Filling Machine

Processing Material

Natural Ingredients

Process

Ferment

Material

Stainless Steel 304 / 316

Fermentation Capacity

300-15000L, Can Be Customized

Processing Types

Carbonated Beverage

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

10bbl Biological Fermentation Tank

Product Name: Fermentation Tank
Material: 304(L) 316(L)
Finish: Mirror or Matt Polish; Ra<0.4um
Certification: CE ISO9001: 2000

Fermentation Tank Structure characteristics:
Humanized structure design and easy to operate.
Transition area of interior wall on tank adopts arc for transition to ensure no dead comer of sanitation.

The series fermenting tank is designed according to the requirements to hygiene in food industry.
1: Tank volume: 20~3000L
2: Dimensions: Diameter and height according to the requirements
3: Material: Stainless steel (304 or 316L)
4: Tank shell thickness: 2mm or more(according to the design or customer required
5: Pressure(MPa): Atomospheric pressure-Middle pressure (According to the Chinese, Design standard)
6: Function: Storage or fermentation tank
7: Medium: Various drinks including beer, wine, fruit wine and so on.
8: Tank surface: Mirror polishing. All joints and inside of the tank is mirror finished without any dead angle and cleaned easily.
9: Guarantees inner quality and safety, good looking appearance and function by introducing international advanced large-sized welder and high polishing machines.
Customized and Non-standard products also welcomed.

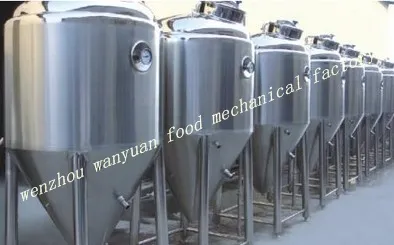

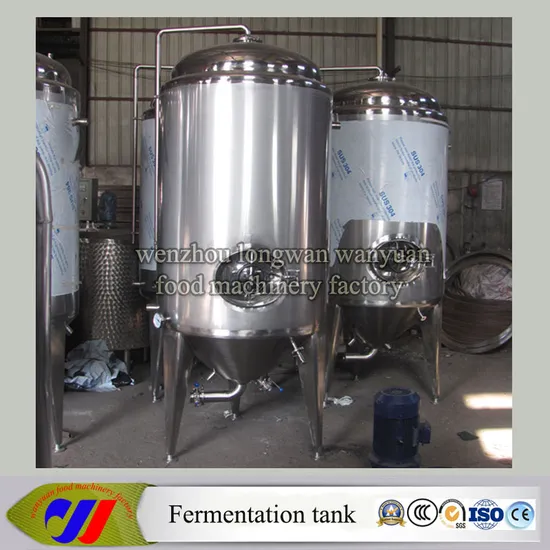

Fermentation Tank Picture:

10bbl Biological Fermentation Tank

Fermentation Tank Characteristics:
Fermentation tank is a kind of equipment, which can mechanical agitation and fermentation of materials. This device uses the inner loop method, with the mixing propeller to scatter and broken bubble, which dissolved oxygen rate is high and the mixing effect is good. Tank uses imported SUS304 or 316L stainless steel. Inside of the tank is equipped with automatic spray cleaning machine. We ensure production processes comply with GMP requirements.

Fermentatio n Tank applications:
Widely used in dairy products, beverages, biological engineering, pharmaceutical, fine chemical, etc. Stainless steel fermentation tank installs with interlining, insulation, which can heating, cooling, heat preservation.

Wenzhou wanyuan food machinery factory- - Fermentation tank
The below is the fermentation tank specification:

CAPACITY	SPEED(R/MIN)	WORKING PRESSURE	TEST PRESSURE	MOTO POWER(KW)	TEMPERATURE
CAPACITY	SPEED(R/MIN)	(MPa)		MOTO POWER(KW)	TEMPERATURE
100L	110-220	0.15	0.30	0.37	≤120ºC
200L	110-220	0.15	0.30	0.5	≤120ºC
300L	110-220	0.15	0.30	0.5	≤120ºC
500L	110-220	0.15	0.30	0.75	≤120ºC
600L	110-220	0.15	0.30	0.75	≤120ºC
800L	110-220	0.15	0.30	1.1	≤120ºC
1000L	110-220	0.15	0.30	1.1	≤120ºC
2000L	110-220	0.15	0.30	2.2	≤120ºC
3000L	110-220	0.15	0.30	3.0	≤120ºC
5000L	110-220	0.15	0.30	3.0	≤120ºC
8000L	110-220	0.15	0.30	4.0	≤120ºC
10m 3	110-220	0.15	0.30	5.5	≤120ºC
20m 3	110-220	0.15	0.30	5.5	≤120ºC
40m 3	110-220	0.15	0.30	7.5	≤120ºC
60m 3	110-220	0.15	0.30	7.5	≤120ºC
100m 3	110-220	0.15	0.30	10.0	≤120ºC
