Stainless Steel Milk/ Yogurt Fermentation Tank
Specification:
Name: Yogurt fermentation tank
Material: AISI304, AISI316L
Capacity: 100-5000L, can be customized Usage:
it is can used as yogurt fermentation tank, pasteurizing tank, holding tank, storage tank,blending tank,mixing tank,and so on.apply to food ,dairy ,juice,beverage. Structure Characteristics:
1. Volume from 100L-5000L (can be customized according to customer requirements)
2. Material: sanitary stainless steel
3. Three layer structure: Inner body, Jacket body and isolation. Isolation layer filled with insulation material.
4. Inner wall fineness less than 0.6um, Outside finish could be matt or mirror polish
5. Conical bottom shape, cooling jacket could adopt dimple jacket, arched and corrugated access jacket.
6. All pipes are all ISO or DIN sanitary pipe, internal and external adopt food grade mirror polish.
7. PLC control system, which could achieve automatic, semi-automatic control, to ensure the accurately and effectively of parameters and experimental results.

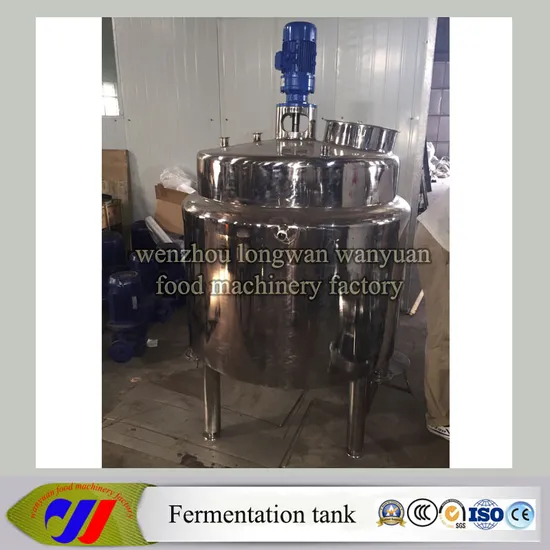

Picture of fermentation tank:
TECHNICAL PARAMETERS OF FERMENTATION TANK | Nominal Volume m³ | Diameter of tank
mm | Height of tank
mm | Diameter of jacket
mm | Blending spindle rotation speed
r/mim | Blending spindle power
kw |
| 0.05 | 300 | 700 | 400 | 300-350 | 0.55 |
| 0.1 | 400 | 800 | 500 | 300-350 | 0.75-1.1 |
| 0.2 | 500 | 1000 | 600 | 280-340 | 0.75-1.5 |
| 0.3 | 550 | 1200 | 650 | 280-340 | 1.1-1.5 |
| 0.5 | 600 | 1650 | 700 | 280-320 | 1.5-2.2 |
| 0.8 | 800 | 1600 | 900 | 200-280 | 2.2-5.5 |
| 1 | 800 | 1900 | 900 | 200-280 | 2.2-5.5 |
| 1.2 | 900 | 1800 | 1000 | 200-280 | 3-7.5 |
| 1.5 | 900 | 2200 | 1000 | 200-280 | 3-7.5 |
| 2 | 1000 | 2500 | 1100 | 200-260 | 4--11 |
| 3 | 1200 | 2600 | 1300 | 200-260 | 5.5-11 |
| 4 | 1300 | 3000 | 1400 | 200-220 | 7.5-15 |
| 5 | 1400 | 3200 | 1500 | 180-220 | 7.5-18.5 |
