Stainless Steel Rotor Pump /Gear Pump

Customization:Available
Power Source:Electric
Certification:CE
Quantity:
Inquire Add to Basket

Basic Info.

Model NO.
ZB3A-8
Application
Jam, Ketchup, Chocolate Cream
Customized
Customized
Model Number
Ss304
Power
1.5kw
Proper Medium Temperature
20~150 Degree Centigrade
Diameter
25X1.5
Connection Type
Clamp, Thread, Flange
Transport Package
Wooden Case
Origin
Wenzhou China

Product Description

Sanitary Stainless steel rotor pump /Gear pump

This type pump's driving system adopts step-less variator +motor. The speed regulator changes the speed by manual adjustment, which is safe, reliable and infinitive flow adjustment. But the non-automatic adjustment is also troublesome. Speed regulating should be done in operation not in shutoff state.

The pump is widely used to deliver: Various special material, stiff material, mixture with different specific gravity, corrosive material and material with large power.

Main application characteristics:
1)High viscosity material feeding pump
2)Thin medium feeding pump
3)Sanitary feeding pump
4)Heat preservation sleeve design
5)Water cleaning mechanical seal
6)Almost have no consumable parts.

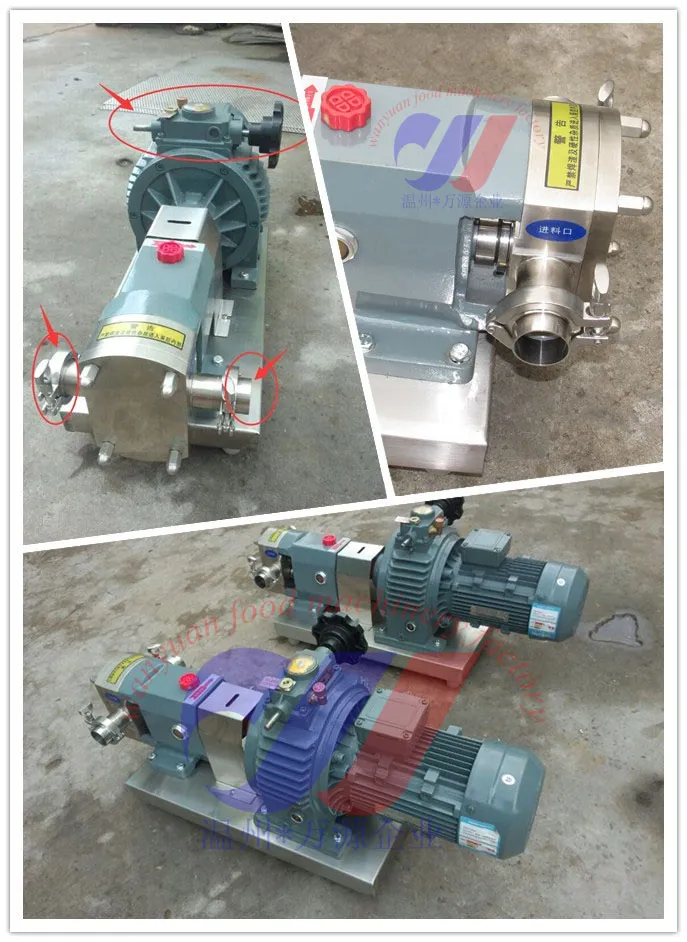

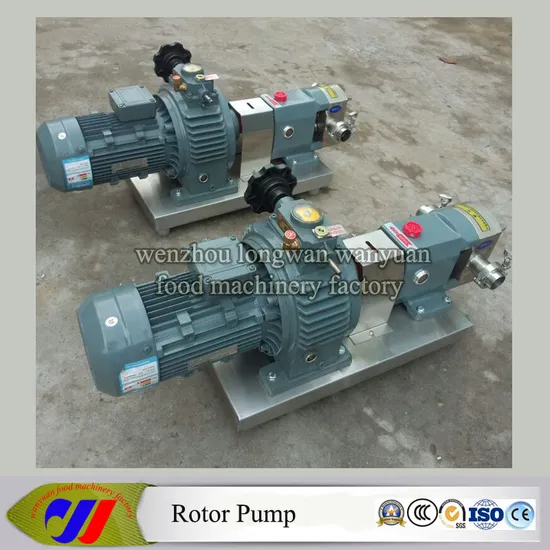

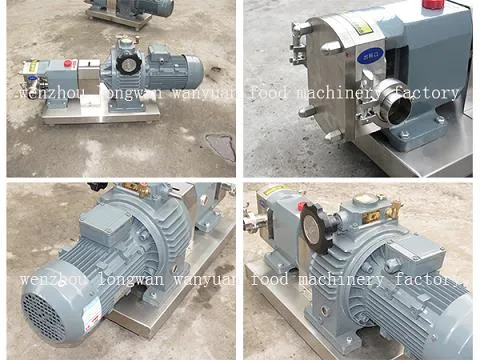

Picture of rotor pump:
Stainless Steel Rotor Pump /Gear Pump
Wenzhou wanyuan food machinery factory- - Rotor pump
The below is rotor pump specification:
Rotor pump specification
1 Model ZB3A-8
2 Flow rate 2T/H
3 Power 1.5Kw
4 Material SS304
