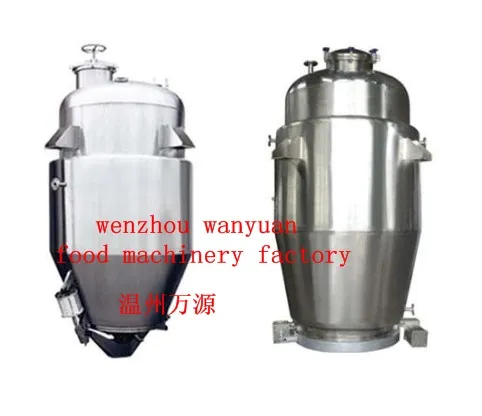

Multi functional extracting tanks
SUS304 or 316L used
Applicable to food, pharmaceutical, chemical industries.
Equipment characteristics:
1. The equipment is applicable for the multiple technology operation of normal pressure, micro pressure, water frying, warm soaking, thermal reflux, compulsory circulation, filtration, redolent oil extraction and organically solvent recycling in traditional Chinese medicine, food and chemical industry.
2. The tank body is equipped with CIP cleaning automatic rotary spraying ball head, temperature measuring hole, explosion-proof view lamp, view mirror, rapid open feeding inlet etc., which can guarantee the convenient operation and is in accordance. With GMP standard.
3. The tank body inside the equipment is made of imported SUS304, and the jacket is made of completely sealed aluminum silicate blanket for temperature holding. The external tank body is stuck with SUS304 semi-luster thin steel sheet for surface decoration.
4. The complete equipment supplied shall include: Defoamer, condenser, cooler, oil and water separator, filter and control desk for cylinder etc. Accessories.
Multi functional extracting tanks
Wenzhou wanyuan food machinery factory
The following is a parameter of Extracting Tank:
| Specification/Model | TQ-0.5 | TQ-1.0 | TQ-2.0 | TQ-3.0 | TQ-4.0 | TQ-5.0 | TQ-6.0 | TQ-8.0 |
| Volume (L) | 560 | 1300 | 2300 | 3600 | 4400 | 5560 | 6500 | 8900 |
| Designed pressure of tank (Mpa) | 0.09 |
| Designed pressure of jacket (Mpa) | 0.3 |
| Heating area (m2) | 2.1 | 4 | 5 | 6.8 | 7.3 | 8.5 | 9.5 | 11 |
| Condensation area m2) | 3.0 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 | 15.0 | 20.0 |
| Cooling area (m2) | 0.5 | 0.5 | 1.0 | 1.0 | 1.0 | 1.5 | 2.0 | 2.0 |
| Diameter of charging port ( mm) | 350 | 350 | 400 | 400 | 450 | 450 | 450 | 500 |
| Diameter of slag port (mm) | 600 | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1200 |
| Steam consumption (Kg/h) | 150 | 245 | 325 | 345 | 525 | 575 | 645 | 720 |
| Cooling water consumption (T/h) | 3.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 | 10 | 12 |
