Mixing Speed Stainless Steel Mixing Tank with Adjustable 1. Made of stainless steel 304/316
2. Mixing milk, juice, or any other viscous liquid
3. Customized mixing tank capacity Mixing Tank <
mixing tanks> mainly made of stainless steel,
used for mixing different liquid together. Also, you can use this
mixing tanks to mix liquid and power to make a mixture.
Mixing tanks can be with different mixing speed. Such as 36rpm, 60rpm fixed mixing speed. But due to some production reqeust, you may need the mixing tanks with variable speed, such as 8 to 140rpm, 40 to 200rpm mixing speed, or 200 to 1000 rpm mixing speed. In special request, we can use VFD<
Variable Frequency Drive> to meet your special mixing speed request.

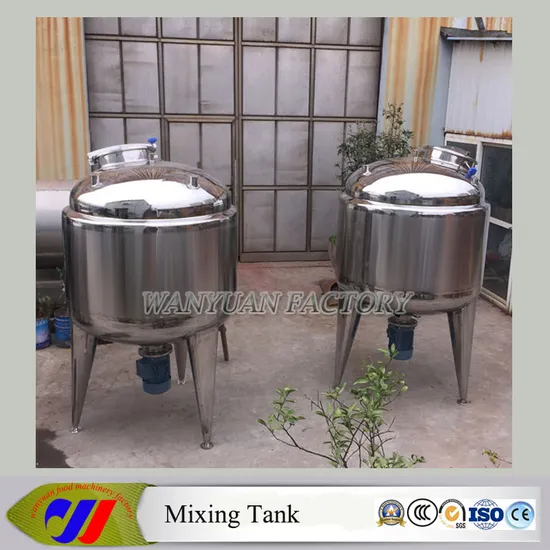

Mixing tank picture one:

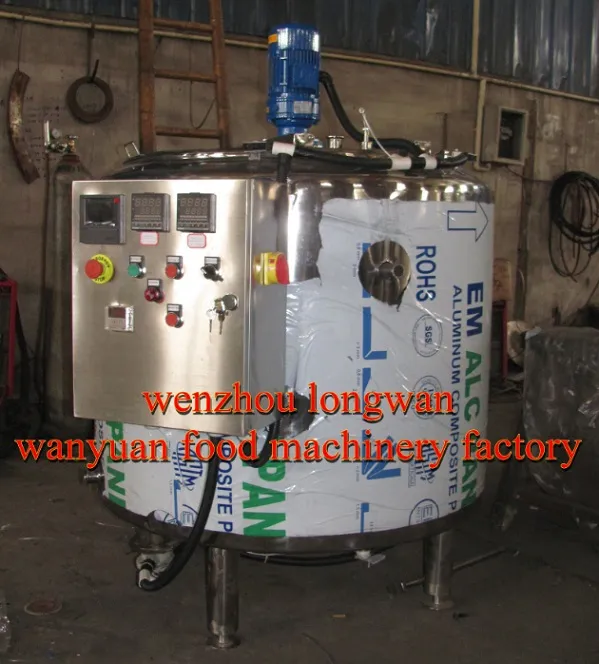

Mixing tank picture two:

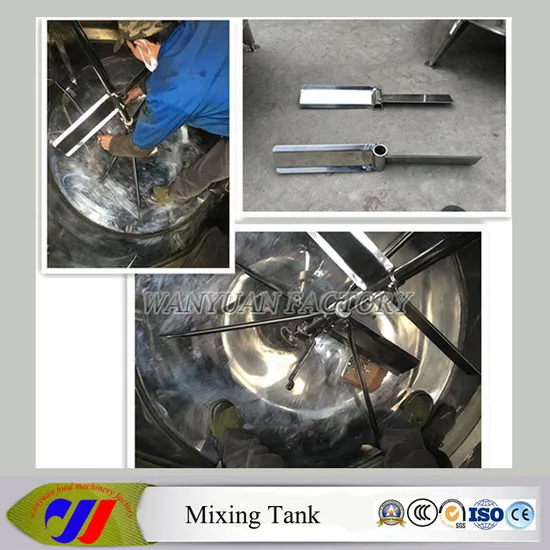

Details of mixing tank:
Wenzhou wanyuan food machinery factory mainly produce
stainless steel mixing tanks for milk, juice, beverage, cosmetic, detergent as well as chemical product.
Wenzhou wanyuan food machinery factory--Mixing tank
Our
Mixing tank capacity can be 50L, 200L, 500L, 2000L or any other capacity you need.
The below is Mixing tank specifications:
| volume (L) | Dimension
(D× h ) (mm) | Total height (mm) | Diameter Of inlet
& outlet | Heat preservation layer (mm) |
| 500 | 840 × 1000 | 2250 | 38 | 60 |
| 600 | 920 × 1000 | 2300 | 38 | 60 |
| 700 | 990 × 1000 | 2300 | 38 | 60 |
| 800 | 950 × 1220 | 2500 | 38 | 60 |
| 900 | 1010 × 1220 | 2500 | 38 | 60 |
| 1000 | 1060 × 1220 | 2550 | 51 | 60 |
| 1500 | 1160 × 1500 | 2850 | 51 | 60 |
| 2000 | 1340 × 1500 | 2900 | 51 | 60 |
| 3000 | 1410 × 2000 | 3400 | 51 | 60 |
| 4000 | 1620 × 2000 | 3450 | 51 | 60 |
| 5000 | 1810 × 2000 | 3500 | 51 | 60 |
