10t/H Stainless Steel Tea Extracting Tank

Customization:	Available
Machine Material:	Stainless Steel
Warranty:	1 Year

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

TQ-10

Shape

Wimble Type

Capacity

500L-10000L

Material

Stainless Steel

Discharge

Pneumatic

Type

Pharmaceutical Packaging Machinery

Finished Dosage Form

Liquid

Precision

High Precision

Voltage

380V

Computerized

Non-Computerized

Customized

Condition

New

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

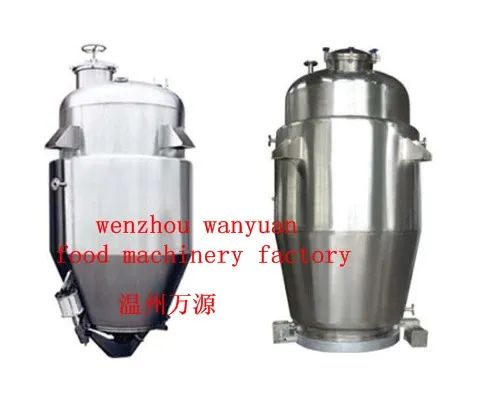

10T/H Stainless Steel Tea Extracting Tank

This extracting tank is used to extract tea from the tea leaves, or make medicine from herbal medicine.
All the tank wall is made of high quality SUS304-2B stainless steel, the jacket adopts high density of PU as insulation and was made out of new procedures; This tank can use steam to heat the product inside with steam or hot water inside of the dimple pad; The paddle type agitator is mounted from top at the centre; Other standard attachments such as: Airtight manhole, high and low level probe, temperature sensor, the extracted liquid product is discharged from bottom outlet; Dregs are also discharged from bottom where a net is fixed to separate the dreg from the liquid product; The top cover is elliptical type and bottom base is of conical types.

Feature:
1. This equipment mainly is consist of extracting tank, external circulatingt concentrator and other accessory. It is with compact structure, simple operation and combining extraction, concentration, solvent recycling together.
2. The whole process is in a airtight condition and finish extraction and concentration at one time completely. It can process big quantity material and with less slolvent, short extracting time.
3. The temperature can be controlled freely in 48-100º C, so it can realize low temperature extraction, hot backflow, low temperature backflow and low temperature concentration. It is especially suitable for some heat-sensitivity material and can configure with the PLC control system.

Wenzhou wanyuan food machinery factory
The below is Extracting Tank specification
If you need more details about our machine, you can contact me feel free!

Specification/Model	TQ-0.5	TQ-1.0	TQ-2.0	TQ-3.0	TQ-4.0	TQ-5.0	TQ-6.0	TQ-8.0
Volume (L)	560	1300	2300	3600	4400	5560	6500	8900
Designed pressure of tank (Mpa)	0.09
Designed pressure of jacket (Mpa)	0.3
Heating area (m2)	2.1	4	5	6.8	7.3	8.5	9.5	11
Condensation area m2)	3.0	5.0	6.0	8.0	10.0	12.0	15.0	20.0
Cooling area (m2)	0.5	0.5	1.0	1.0	1.0	1.5	2.0	2.0
Diameter of charging port ( mm)	350	350	400	400	450	450	450	500
Diameter of slag port (mm)	600	800	800	800	1000	1000	1000	1200
Steam consumption (Kg/h)	150	245	325	345	525	575	645	720
Cooling water consumption (T/h)	3.0	5.0	6.0	7.0	8.0	9.0	10	12
