| Customization: | Available |
|---|---|
| Type: | Cooking and Mixing |
| Voltage: | 110V/220V/380V/415V |
| Quantity: | |
|---|---|
Jacketed kettle or electric jacketed kettle can be designed into different type:
Tilting type cooking kettle and vertical type cooking kettle.

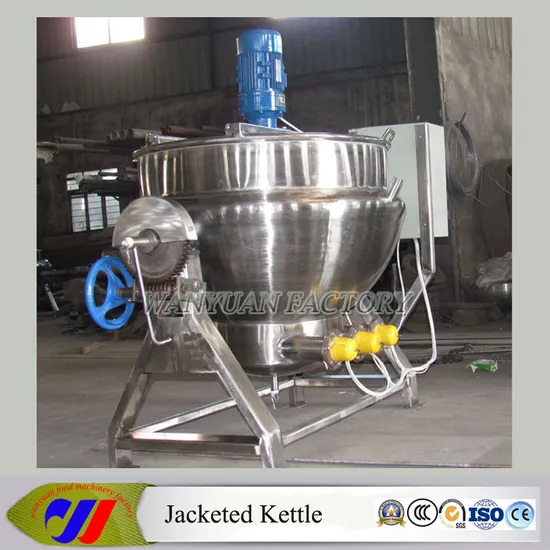

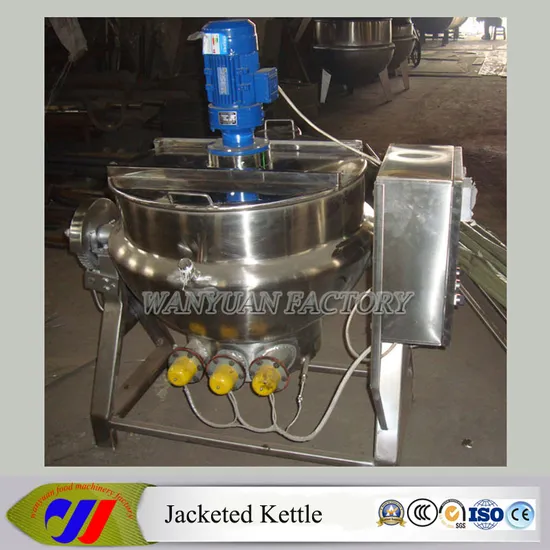

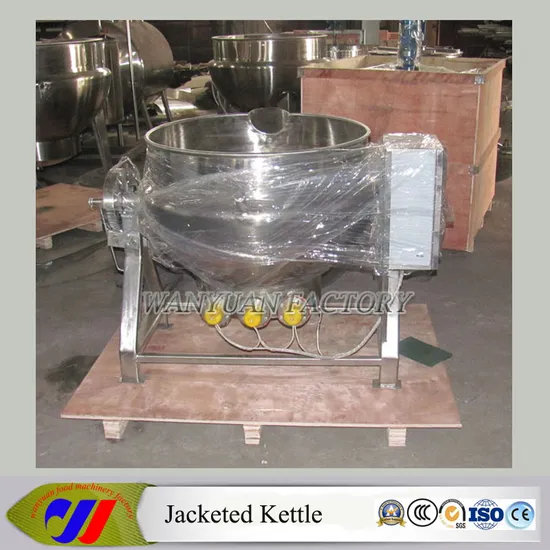

Tilting jacketed cooking kettle is designed with a tiltable device, you can turn the kettle or pot over for discharge after cooking.
Vertical cooking kettle is designed on 3 legs, there is a discharge pipe at the bottom of the jacketed pot.
Both of tilting cooking kettle and verticle cooking kettle can be designed with mixer or without mixer.
Electrical jacket kettle:
Our electrical jacket kettle takes heat conducting oil as thermal source. Compare with steam heating, the heating temperature of of the electrical jacket kettle is higher than steam jacket kettle, which can shorten the cooking time. We also call electric heating kettle as oil jacketed kettle or oil jacketed cooking vat.
Jacketed kettle picture two: vertical electric jacketed kettle
Agitator with scraper:
Our jacket kettle normally used for producing sauces, pasta, vegetables, soups, juice, meat, candy and other food products. It also can be used as simple sterilization boiler.
Wenzhou wanyuan food machinery factory--Jacketed kettle
Cooking kettle / cooking pan / cooking vat / specification
Here below is the specification of our 100L electric cooking kettle and 200L electric heating cooking kettle
| Model | DG-200 | DG-100 | |
| Jacketed pot | diameter(mm) | Φ800 | Φ700 |
| depth(mm) | 550 | 500 | |
| Total capacity (L) | 200 | 100 | |
| Material in/out pipe | 1/2" | 3/4" | |
| Heating power(kw) | 12 | 18 | |
| Boiling time (min) | ~13 | ~10 | |
| Heating area(m2) | 1.13 | 0.58 | |
| Design temperature (degree C) | 180 | 180 | |
| Max working temp (degree C) | 151 | 151 | |
| Design pressure (MPa) | 0.095 | 0.095 | |
| Max working pressure(MPa) | 0.095 | 0.095 | |
| Max tilting Angle | 90° | 90° | |
| overall dimension | Length (mm) | 1100 | 1000 |
| Width (mm) | 850 | 750 | |
| Height (mm) | 1450 | 1100 | |
