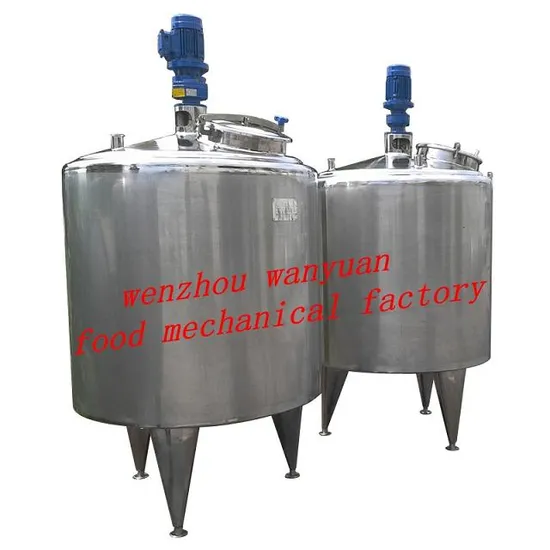

3 Layers Chocolate Melting Jacketed Stainless Steel with Agitator
Chocolate melting tank
1-temperature adjustment
2-melting and storage function
3-with scraper, mixer and stir device
Chocolate Melting/ Tempering and Mixer Machine
1- temperature adjustment
2-melting and storage function
3-with scraper, mixer and stir device
4-stainless steel
5-digital temperature control system
6-with water interlayer heating equipment, can be used for external heating and heat preservation
Introduction of Chocolate melting tank:
Our chocolate melting and tempering mixer machine tank from 75kg to 6000kg, and we also can specially made according to your special needs. It can be used for melting, storage and heat maintaining for chocolate, axunge and similar coating materials.
The stainless steel tank has a sandwich with constant temperature control, and a strong mixing and scraper device inside.
Other components including a water interlayer heating equipment, can be used for external heating, heat preservation and insulation.
Wenzhou wanyuan food machinery factory- - Chocolate Melting/ Tempering and Mixer Machine

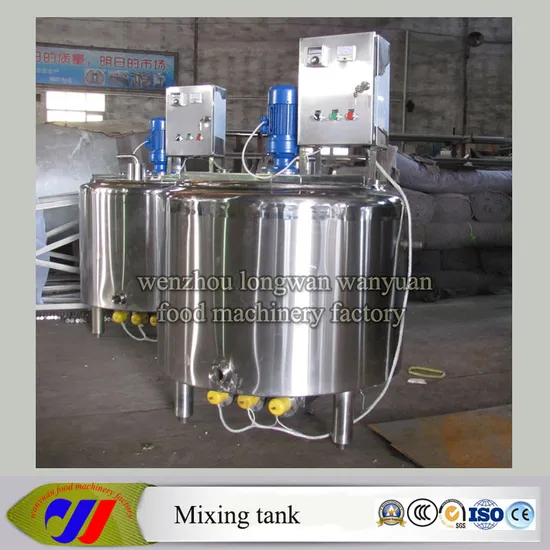

Our Mixing tank capacity can be 50L, 200L, 500L, 2000L or any other capacity you need.
| volume (L) | Dimension
(D× h ) (mm) | Total height (mm) | Diameter Of inlet
& outlet | Heat preservation layer (mm) |
| 500 | 840 × 1000 | 2250 | 38 | 60 |
| 600 | 920 × 1000 | 2300 | 38 | 60
|
| 700 | 990 × 1000 | 2300 | 38 | 60 |
| 800 | 950 × 1220 | 2500 | 38 | 60 |
| 900 | 1010 × 1220 | 2500 | 38 | 60 |
| 1000 | 1060 × 1220 | 2550 | 51 | 60 |
| 1500 | 1160 × 1500 | 2850 | 51 | 60 |
| 2000 | 1340 × 1500 | 2900 | 51 | 60 |
| 3000 | 1410 × 2000 | 3400 | 51 | 60 |
| 4000 | 1620 × 2000 | 3450 | 51 | 60 |
| 5000 | 1810 × 2000 | 3500 | 51 | 60 |
