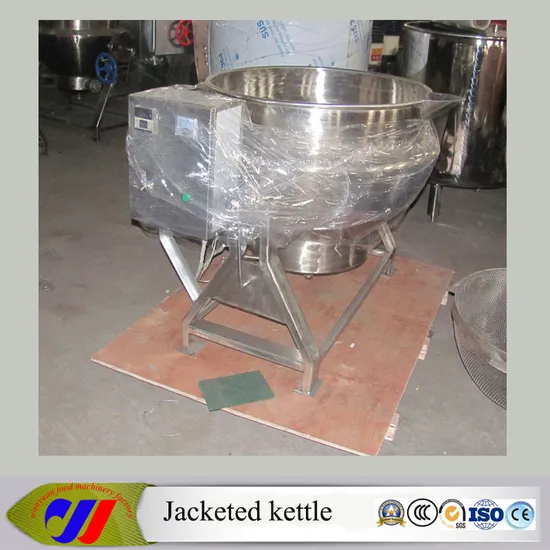

Tilting Jacketed Kettle with Cover

Customization:	Available
Power Source:	Electric
Timing Device:	With Timing Device

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

DG100

Voltage

Customized

Jacketed Kettle Usage

Cooking and Mixing

Cooking Kettle Capacity

50/100 Liter

Heating Type

Electric Heating

Shape

Vertical / Tiltable

Transport Package

Wooden Case

Specification

SUS304

Trademark

Wanyuan

Origin

Wenzhou China

HS Code

8479819000

Production Capacity

5000

Product Description

Tilting Jacketed Kettle With Cover (Electric Heating)/Jacketed Boiler/Jacketed Cooking Pot
1. Jacketed kettle made of stainless steel
2. Cooking Pot with functions of tilt
3. Automatic control temperature

Electrical jacketed kettle:
Our electrical jacketed kettle takes heat conducting oil as thermal source. Compare with steam heating, the heating temperature of of the electrical jacketed kettle is higher than steam jacket kettle, which can shorten the cooking time. We also call electric heating kettle as oil jacketed kettle or oil jacketed cooking vat.
Gas heating jacketed kettle can be tilting type, or tri-leg mounted. There are not too much different between tri-leg mounted gas cooking kettle and tilting jacketed kettle, the only difference is: They use different kind of drainage method.
Steam heating jacketed kettle capacity: As a manufacture of steam jacketed kettle<cooking pot or jacketed cooking vat>, wenzhou longwan wanyuan food machinery offer different cooking kettle capacity according to your request.

Our jacketed kettle normally used for producing sauces, pasta, vegetables, soups, juice, meat, candy and other food products. It also can be used as simple sterilization boiler.

Wenzhou Wanyuan Food Mechanical Factory

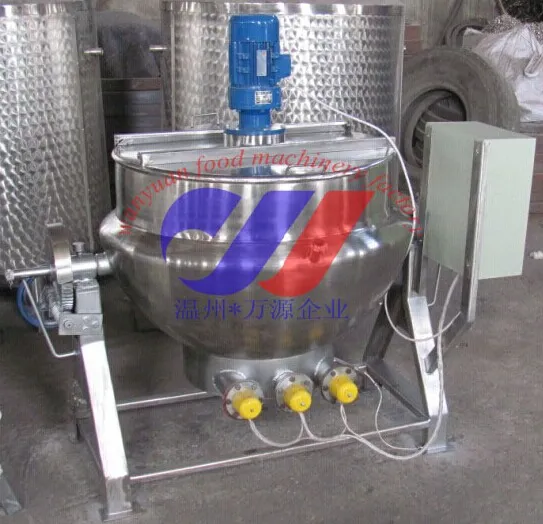

Tilting Jacketed Kettle With Cover(Electric Heating)

Here below is the specification of our 50L and 100L tilting jacketed kettle.

Model		DG-50	DG-100
Jacketed pot	diameter(mm)	Φ600	Φ700
Jacketed pot	depth(mm)	450	500
Total capacity (L)		50	100
Material in/out pipe		1/2"	3/4"
Heating power(kw)		12	18
Boiling time (min)		~8	~10
Heating area(m2)		0.45	0.58
Design temperature C		180	180
Max working temp C		151	151
Design pressure (MPa)		0.095	0.095
Max working pressure(MPa)		0.095	0.095
Max tilting Angle		90°	90°
overall dimension	Length (mm)	900	1000
	Width (mm)	650	750
	Height (mm)	1050	1100
