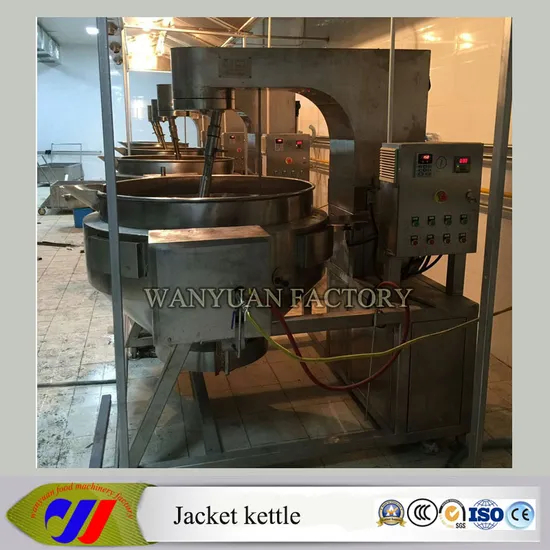

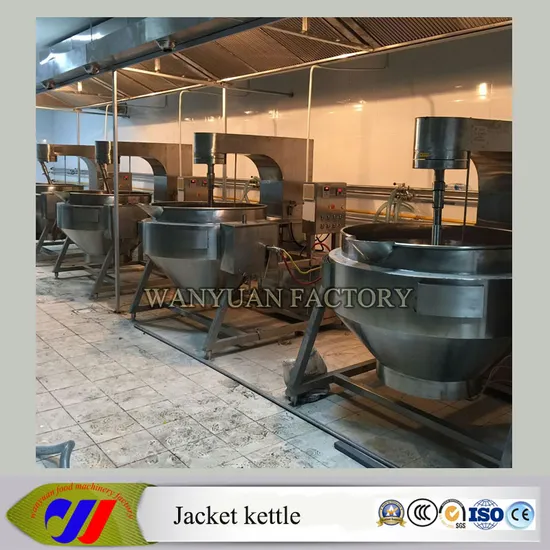

500 Liters planetary stirrer jacketed kettle with gas heating
1. Cooking milk, juice, tomato puree, paste
2. Kettle capacity 50L, 100L, 200L <customized>
3. Tiltable with mixing scraper or mixing paddle
This product pot body for a one-time spinning forming of hemispherical stainless steel pot body, use steam, liquefied petroleum gas, natural gas, and other forms of heating, stirring method used special tilting transmission, using the planet stirrer and the pot body full access, realize the transmission revolution and rotation of the integer ratio, using advanced transmission and sealing structure, using the transmission part and the sealing structure, make the transmission part and the pot clean and sanitary. Adopts frequency conversion power, run more smoothly, reduce the labor intensity, is the excellent performance of food processing equipment.
Wenzhou wanyuan food machinery factory- - Jacketed kettle
Cooking kettle / cooking pan / cooking vat / specification
Here below is the specification of our 100L electric cooking kettle and 200L electric heating cooking kettle
Need more details and specifications, you can contact me feel free!
| Model | DG-200 | DG-100 |
| Jacketed pot | diameter(mm) | Φ800 | Φ700 |
| depth(mm) | 550 | 500 |
| Total capacity (L) | 200 | 100 |
| Material in/out pipe | 1/2" | 3/4" |
| Heating power(kw) | 12 | 18 |
| Boiling time (min) | ~13 | ~10 |
| Heating area(m2) | 1.13 | 0.58 |
| Design temperature (degree C) | 180 | 180 |
| Max working temp (degree C) | 151 | 151 |
| Design pressure (MPa) | 0.095 | 0.095 |
| Max working pressure(MPa) | 0.095 | 0.095 |
| Max tilting Angle | 90° | 90° |
| overall dimension | Length (mm) | 1100 | 1000 |
| Width (mm) | 850 | 750 |
| Height (mm) | 1450 | 1100 |
| FOB Price | | |
