Stainless Steel Heating Tank for Wax

Customization:	Available
Capacity:	20L
Material:	Ss304/ Ss316

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WY

Layer Number

Three-Layer

Usage

Food, Industry

Customized

Yes

Transport Package

Wooden Case

Origin

Wenzhou

Product Description

Heating Tank Description:
Wax heating tank is made of stainless steel; cylindrical inner surface contact to wax directly, outside the inner surface there is a heating jacket and heat preservation (you can call it heat preservation layer or thermal insulation layer). You can control the wax temperature through the control panel. At the bottom of the wax heating tank, you can see 4 castors which allowed you move the cylinder easily.
Temperature range of the wax heating tank
This wax heating tank adopt electric as heating medium, if you put water as heat transmission medium, you can get you wax at most 100 Degree Celsius or 212 degree Fahrenheit. if this temperature is not high enough for your wax production, you are suggested to use HEAT TRANSFER FLUID as heat transmission medium, thus you can get more than 100 degree C temperature, the maximum temperature can be 300 degree C.

Wax heating tank specification
20Liter ~1000L Wax mixing tank specification as below

Capacity	20L	100L	200L	500L	1000L
Material	SUS304	SUS304	SUS304	SUS304	SUS304
Inner diameter mm	300	600	600	800	1100
Outer diameter mm	500	800	800	1000	1300
Inner height mm	300	550	750	1000	1100
Thickness mm	3/2/1.5	3/2/1.5	3/2/1.5	3/3/1.5	3/3/1.5
Insulation	50mm PU	50mm PU	50mm PU	50mm PU	50mm PU
Heating power kw	4~12	6~18	6~24	9~27	12~36
Dump way	Tiltable	Tiltable	Tiltable	Bottom	Bottom
Castor	4pcs	4pcs	4pcs	4pcs	4pcs
Dimension

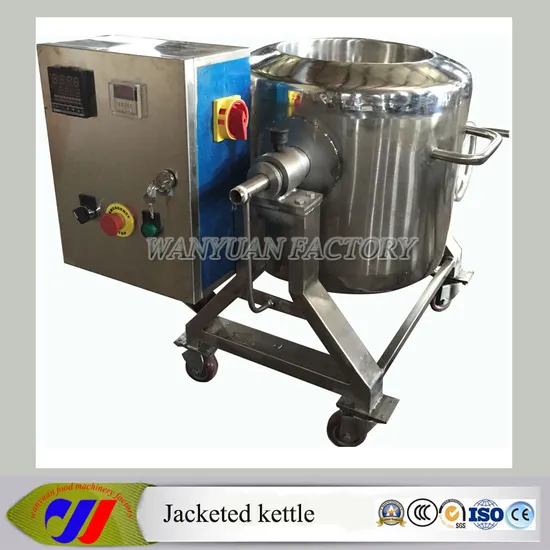

Wax heating tank / wax melting tank picture

Wax Heating Tank Optional Components / Optional Function
Hot Sell Wax Heating Tank can be designed according to your production requirement. Here are some optional components for your reference:
a. Heating function & cooling function together
b. Automatic heat preservation
c. Programmable timer for automatic switch on and off
d. Automatic control heating and on and off
e. Paperless temperature recorder
f. Gas heating
g. Steam heating
h. Hot water heating
i. With mixing agitator
j. With scraper mixing agitator
k. Adjustable speed mixer
