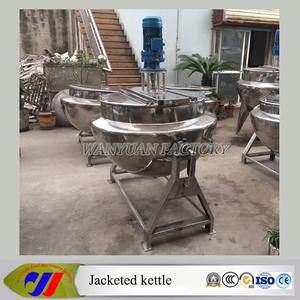

Steam heating jacketed cooking mixer with agitator cooking vesel 1 Material: AISI304 , AISI316L 2 polished inside out side 3.double-layer 4.Special design for you Working principle:

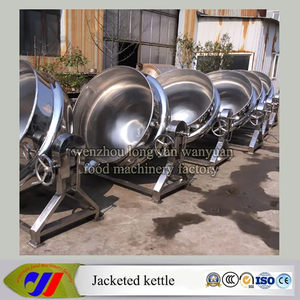

Tilting cooking mixer is composed of kettle ,backet ,worm wheel and worm etc. The vesel can revolve with 180 degree,the equipment is used for open concentration,mainly for deoting and concentration of liquids in industries of pharmaceutical industry ,food industry ,chemical industry and light industry etc. Contact area of the equipment with materials if made of stainless steel SUS304,which has perfect corrsion-proof performance, and is highly endurable according to GMP requirements.Blender also can be added according customer requirements.
Cooking mixer / Jacketed kettle / cooking kettle/Tilting Jacketed Kettle
Tilting cooking mixer is widely used for the cooking of fruit, vegetable, soup, candy. Also used in the processing of sweets, pharmacy, dairy, alcohol, pastry, beverage, succade and so on.
Tilting heating cooking mixer can also be used for large-scale restaurants and dining rooms, which can improve processing quality and working condition, and shorten the processing time.
This cooking mixer takes 110V to 480V voltage <can be customized> as its heat source, with electrical bar, electric couple and conduction oil in interlayer, as high as 250°C, controlled by electric cabinet. Our cooking mixer has advantages of big heating area, high heat-efficiency, homogeneous heating, short boiling time, controllable heating temperature ect.
Wenzhou wanyuan food machinery factory--Jacketed kettle/ Jacketed cooking mixer Jacketed Kettle, Steam heating jacketed cooking mixer Sanitary Tilting & Agitation Jacketed Kettle specification
The below is jacketed kettle specification: | Items | DG-50 | DG-100 | DG-200 | DG-300 | DG-500 |
| Pot | Diameter mm | Φ600 | Φ700 | Φ800 | Φ900 | Φ1100 |
| Depth mm | 450 | 500 | 550 | 650 | 850 |
| Total capacity L | 50 | 100 | 200 | 300 | 500 |
| Pipe Size | 1/2" | 3/4" | 3/4" | 3/4" | 3/4" |
| Stirring power kw | 0.75 | 1.1/1.5 | 1.1/1.5 | 1.5/1.75 | 1.75/2.2 |
| Electrical Heating Powerkw | 12 | 18 | 24 | 24 | 30 |
| Boiling timemin | ~7 | ~10 | ~13 | ~16 | ~26 |
| Heat transfer area M2 | | | | | |
| Design temperature C | 180 | 180 | 180 | 180 | 180 |
| Max working temperature C | 151 | 151 | 151 | 151 | 151 |
| Design pressureMPa | | | | | |
| Max working pressureMPa | 0.095 | 0.095 | 0.095 | 0.095 | 0.095 |
| Maximum slope Angle | 90° | 90° | 90° | 90° | 90° |
| Overall dimensions | Length mm | | 1000 | 1100 | | |
| Width mm | 650 | | 850 | 950 | 1150 |
| Height mm | 1350 | 1400 | | 1500 | |
Need more detail specification or have any question, contact me feel free.
