Sesame Paste 300L Gas Heating Jacketed Cooking Pot

Customization:	Available
Type:	Cooking and Mixing
Voltage:	380V

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

RG300

Customized

Cooking Kettle Capacity

300L

Cooking Pot Structure

SUS304, Tri-Layer

Agitator

Agitator with Scraper

Way of Discharge

Drainage From Bottom / Tiltable

Heating Mode

Gas Heating

Transport Package

Wooden Case

Specification

SS304/SS316

Trademark

Wanyuan

Origin

Wenzhou China

HS Code

8479819000

Production Capacity

5000

Product Description

Sesame paste cooking 300L gas heating jacketed pot
1. Cooking for tomato puree, peanut butter, salad, jam and cheeses etc..
2. Kettle capacity 50L, 100L, 200L even 1500L<customized>
3. Tiltable with mixing scraper or mixing paddle

Sesame Paste 300L Gas Heating Jacketed Cooking Pot

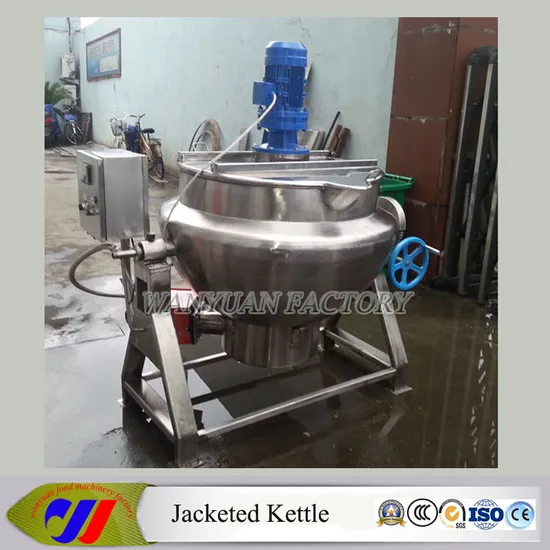

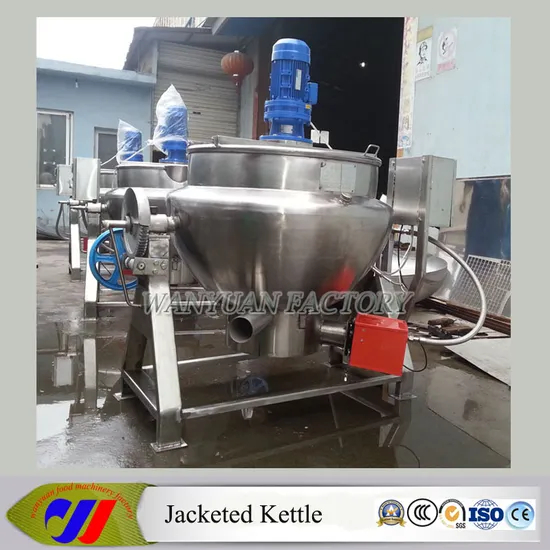

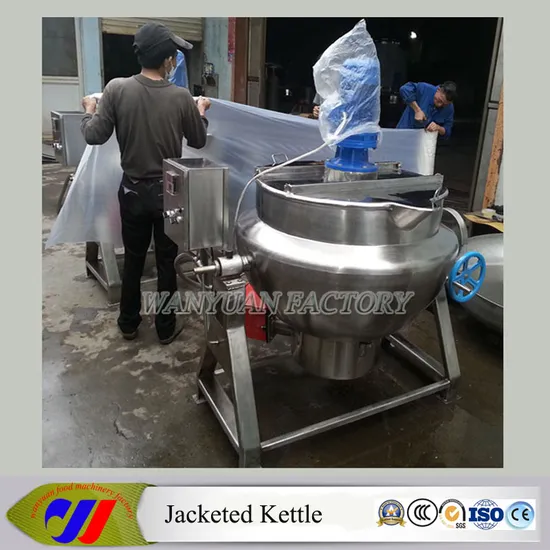

Jacketed kettle or electric jacketed kettle can be designed into different type: Tilting type cooking kettle and vertical type cooking kettle. Tilting jacketed cooking kettle is designed with a tiltable device, you can turn the kettle or pot over for discharge after cooking. Gas Heating tilting jacketed kettle with scraper stirrer
Sesame Paste 300L Gas Heating Jacketed Cooking Pot

Vertical cooking kettle is designed on 3 legs, there is a discharge pipe at the bottom of the jacketed pot.

Sesame Paste 300L Gas Heating Jacketed Cooking Pot

Both of tilting cooking kettle and verticle cooking kettle can be designed with mixer or without mixer.

Gas jacket kettle:
Our gas jacket kettle takes heat conducting oil as thermal source. Compare with steam heating, the heating temperature of of the electrical jacket kettle is higher than steam jacket kettle, which can shorten the cooking time. We also call electric heating kettle as oil jacketed kettle or oil jacketed cooking vat.

Our jacket kettle normally used for producing sauces, pasta, vegetables, soups, juice, meat, candy and other food products. It also can be used as simple sterilization boiler.

Wenzhou wanyuan food machinery factory- - Jacketed kettle
Cooking kettle / cooking pan / cooking vat / specification
Here below is the specification of our jacketed kettke:

Specification for gas heating jacketed kettle

Model	Heating Area (m²)	Conduction Oil (kg)	Blending Rate (r/min)	Boiling Time (min)
RG50	0.45	20	35	10~15
RG100	0.58	30	35	10~15
RG150	0.88	45	35	20~30
RG200	1.13	55	35	20~30
RG300	1.43	65	35	20~30
RG400	1.75	75	35	20~30
RG500	2.00	120	35	20~35
RG600	2.30	160	35	20~35
