200L Gas Jacketed Tomato Sauce Cooking Pan

Customization:	Available
Type:	Cooking and Mixing
Voltage:	110V/220V/380V/415V

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

RG200

Customized

Cooking Kettle Capacity

500L

Cooking Pot Structure

Double Layer Made of Stainless Steel

Agitator

with / Without Agitator, Customized

Cooking Method

Nature Gas / LGP

Way of Discharge

Drainage From Bottom / Tiltable

Construction Material

Ss304 / Ss316

Certificate

CE

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

200L gas jacketed tomato sauce cooking pan
Specifications
1. Cooking kettle made of stainless steel 304/316
2. Jacketed pot with customized cooking capacity 50L-1500L
3. Gas heating, nature gas or LGP

Gas heating jacketed kettle 50L ~ 600L cooking kettle capacity
1. Cooking kettle made of stainless steel
2. Jacketed pot with customized cooking capacity
3. Gas heating, nature gas or LGP
4. Automatic control temperature and gas

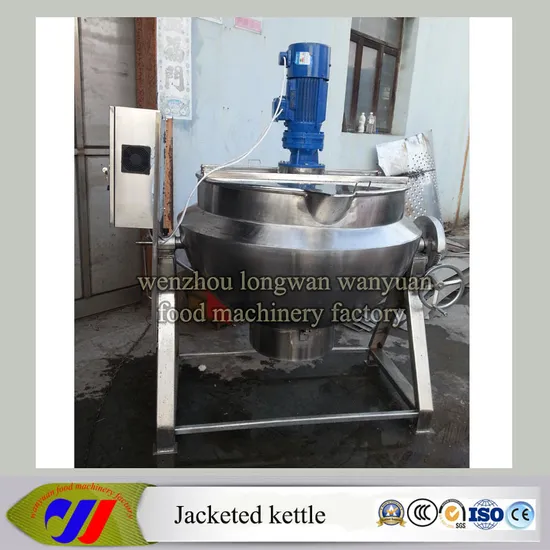

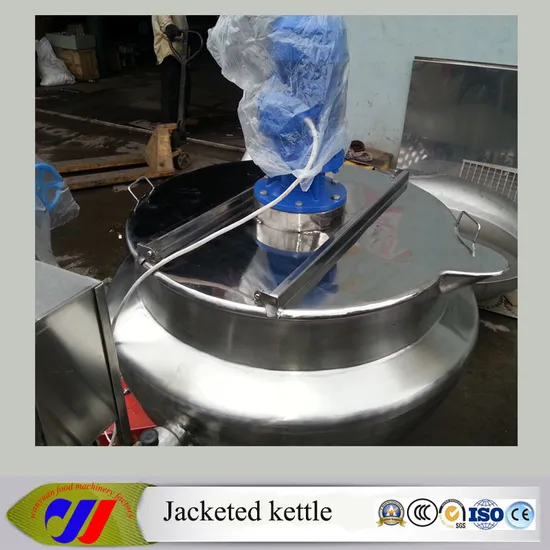

Jacketed kettle / jacketed pot / cooking kettle
Jacketed kettle is a kind of cooking and mixing device used in dairy proessing and beverage production.
You can produce tomato paste, puree, milk, and many other products by jacketed cooking kettle.
Also, you can make soup by our cooking kettles or cooking pan.
200L Gas Jacketed Tomato Sauce Cooking Pan

Gas heating jacketed kettle is a hot sell product in different kinds of cooking kettles.

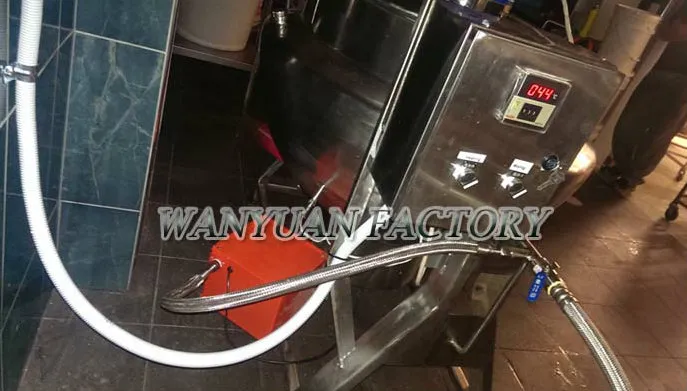

Use gas as heating medium, the cooking kettle can be operated automatically.

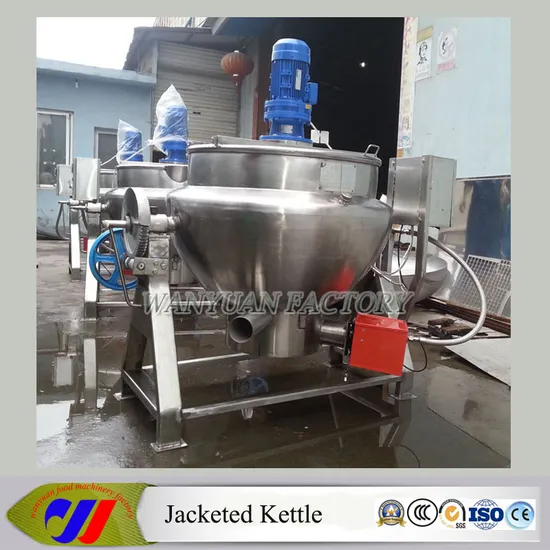

Here is the tilting device of the gas cooking kettle, by movicng this gear device, you can turn the gas cooking pot upside down to discharge the cooked product such as milk, juice, sauce and puree

Wenzhou wanyuan food machinery factory- - Jacketed kettle
Gas heating jacketed kettle specification
Here below is our gas heating jacketed kettle specification:

Specification for gas heating jacketed kettle

Model	Heating Area (m²)	Conduction Oil (kg)	Blending Rate (r/min)	Boiling Time (min)
RG50	0.45	20	35	10~15
RG100	0.58	30	35	10~15
RG150	0.88	45	35	20~30
RG200	1.13	55	35	20~30
RG300	1.43	65	35	20~30
RG400	1.75	75	35	20~30
RG500	2.00	120	35	20~35
RG600	2.30	160	35	20~35
