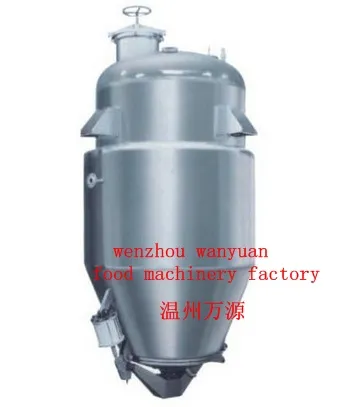

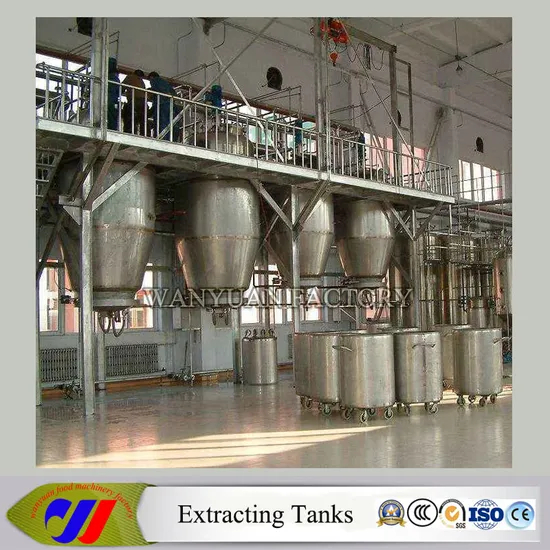

Vertical Wimble Type Extracting Tanks
TQ series multifunctional extracting tank
The facilities can be used in Chinese machine, food and chemical industries to press, micro-press, water fry-ing, warm soaking, heat cycling, cycling leaking, redolent il extract and organically solvent recycle. The facilities have the advantages such as high efficiency with CIP automaticturning cleaning head to ensure a complete cleaning in accordance with GMP.
Extracting Tank body inside the equipment is made of imported SUS304, and the jacket is made of completely sealed aluminum silicate blanket for temperature holding. The external tank body is stuck with SUS304 semi-luster thin steel sheet for surface decoration. The complete equipment supplied shall include: Defoamer, condenser, cooler, oil and water separator, filter and control desk for cylinder etc. Accessories.
Vertical Wimble Type Extracting Tanks
Wenzhou wanyuan food machinery factory
The following is a parameter of Extracting Tank
| Specification/Model | TQ-0.5 | TQ-1.0 | TQ-2.0 | TQ-3.0 | TQ-4.0 | TQ-5.0 | TQ-6.0 | TQ-8.0 |
| Volume (L) | 560 | 1300 | 2300 | 3600 | 4400 | 5560 | 6500 | 8900 |
| Designed pressure of tank (Mpa) | 0.09 |
| Designed pressure of jacket (Mpa) | 0.3 |
| Heating area (m2) | 2.1 | 4 | 5 | 6.8 | 7.3 | 8.5 | 9.5 | 11 |
| Condensation area m2) | 3.0 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 | 15.0 | 20.0 |
| Cooling area (m2) | 0.5 | 0.5 | 1.0 | 1.0 | 1.0 | 1.5 | 2.0 | 2.0 |
| Diameter of charging port ( mm) | 350 | 350 | 400 | 400 | 450 | 450 | 450 | 500 |
| Diameter of slag port (mm) | 600 | 800 | 800 | 800 | 1000 | 1000 | 1000 | 1200 |
| Steam consumption (Kg/h) | 150 | 245 | 325 | 345 | 525 | 575 | 645 | 720 |
| Cooling water consumption (T/h) | 3.0 | 5.0 | 6.0 | 7.0 | 8.0 | 9.0 | 10 | 12 |
