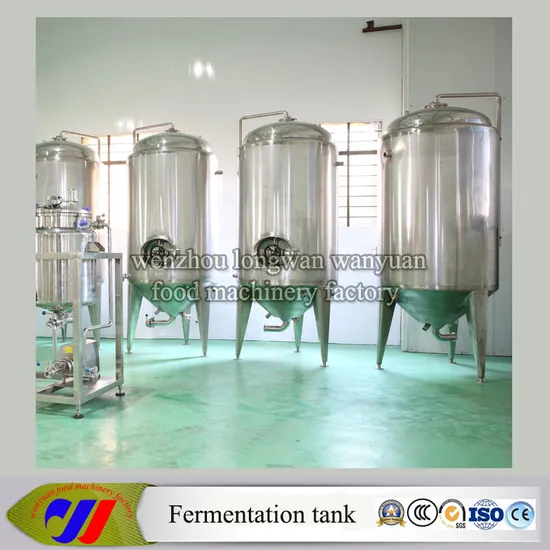

Stainless Steel Conical Beer Fermenter

Customization:	Available
Condition:	New
Customized:	Customized

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WY-1400

Composition

Fermentation,Mixer

Processing Material

Natural Ingredients

Process

Ferment

Material

Ss304/316

Fermentation Capacity

300-15000L

Structure

Conical Jacket

Processing Types

Carbonated Beverage

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

Specifications
Made of stainless steel 304 or 316
With conical bottom and cooling jacket
300L to 15000L capacity
Stainless steel cooling jacket conical beer fermenter

Usage scope:
Glycol jacket conical fermenter
Stainless conical fermenter
Used conical fermenter
50l conical fermenter
100l beer fermenter
Cooling jacket conical fermenter
Small beer fermenters
Large beer fermenter
Beer fermenters for sale
Mini beer fermenter

Stainless steel beerf ermenters
Conical bottom fermenters with glycol jacket

Cleaning chemicals pumped in from top.
Also the gas inlet / outlet.

Beer Outlet beer is drained from above the yeast bed

Wort is pumped in at the bottom before adding yeast, and also yeast is drained out from the bottom after fermentation so the beer will be more clear.

Beer fermenter capacity:
7BB beer fermenter
20BB fermenters
30BB conical fermenters for beer
50BB jacket beer fermenter

200gallon beer fermenters with ice water jacket
300gallon conical beer fermenters with insulation layer

The following is the parameter of Fermentation tank:

Capacity	Speed(r/min)	Working pressure	Test pressure	Motor power(kw)	Temperature
Capacity	Speed(r/min)	(MPa)		Motor power(kw)	Temperature
100L	110-220	0.15	0.30	0.37	≤120ºC
200L	110-220	0.15	0.30	0.5	≤120ºC
300L	110-220	0.15	0.30	0.5	≤120ºC
500L	110-220	0.15	0.30	0.75	≤120ºC
600L	110-220	0.15	0.30	0.75	≤120ºC
800L	110-220	0.15	0.30	1.1	≤120ºC
1000L	110-220	0.15	0.30	1.1	≤120ºC
2000L	110-220	0.15	0.30	2.2	≤120ºC
3000L	110-220	0.15	0.30	3.0	≤120ºC
5000L	110-220	0.15	0.30	3.0	≤120ºC
8000L	110-220	0.15	0.30	4.0	≤120ºC
10m 3	110-220	0.15	0.30	5.5	≤120ºC
20m 3	110-220	0.15	0.30	5.5	≤120ºC
40m 3	110-220	0.15	0.30	7.5	≤120ºC
60m 3	110-220	0.15	0.30	7.5	≤120ºC
100m 3	110-220	0.15	0.30	10.0	≤120ºC
