Stainless Steel Gas Heating Soup Boiler Jacketed Cooking Kettle

Customization:	Available
Power Source:	Gas
Timing Device:	With Timing Device

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

RG200

Voltage

110V/220V/380V/415V

Customized

Cooking Kettle Capacity

50liter to 600L Customized

Cooking Pot Structure

Double Layer Made of Stainless Steel

Agitator

with / Without Agitator, Customized

Cooking Method

Nature Gas / LGP

Way of Discharge

Drainage From Bottom / Tiltable

Construction Material

Ss304 / Ss316

Certificate

CE

Transport Package

Wooden Case

Specification

CE ISO

Origin

Wenzhou China

Product Description

Stainless steel gas heating soup boiler
1. Soup boiler made of stainless steel
2. Soup boiler with customized cooking capacity
3. Gas heating, nature gas or LGP
4. Automatic control temperature and gas

Soup boiler / Jacketed kettle / jacketed pot / cooking kettle
Soup boiler is a kind of cooking and mixing device used in dairy processing and beverage production.
You can produce tomato paste, puree, milk, and many other products by jacketed cooking kettle.
Also, you can make soup by our cooking kettles or cooking pan.

Soup boiler can be heated by gas. Wenzhou wanyuan food machinery produce gas jacketed kettle in different capacity. We have nature gas heating type cooking kettle, also we produce LGP heating cooking vat or kettle according to customer request.

Gas heating Soup boiler can be tilting type, or tri-leg mounted. There are not too much different between tri-leg mounted gas cooking kettle and tilting Soup boiler, the only difference is: They use different kind of drainage method.
Tilting Soup boiler use gear device to turn the Soup boiler over when discharge while tri-leg Soup boiler <or vertical jacketed kettle> equipped with a drainage pipe at the jacketed pot <jacketed pan or jacketed vat> bottom.

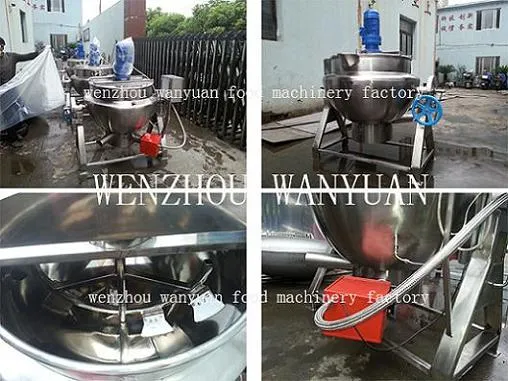

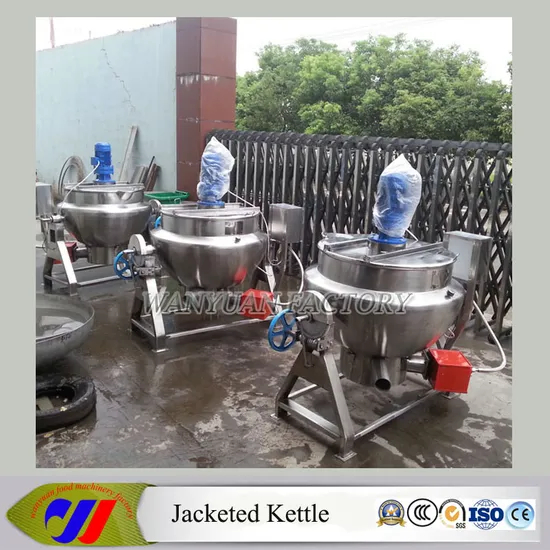

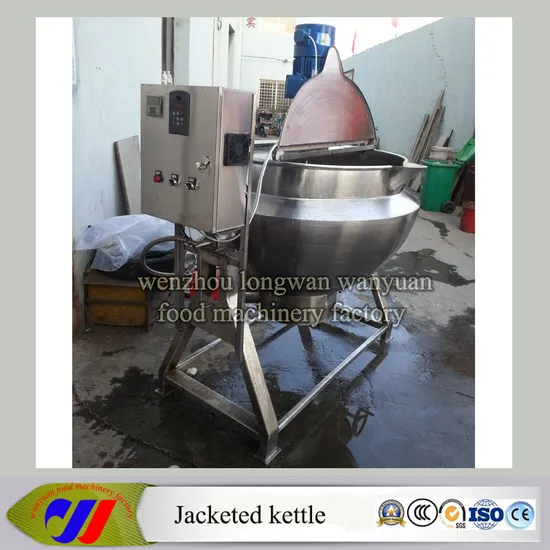

Gas heating soup boiler pictures:
Stainless Steel Gas Heating Soup Boiler Jacketed Cooking Kettle

Want to know more about our automatic control gas cooking kettle?
Please send us your detail reqeust.

Wenzhou wanyuan food machinery factory- Jacketed kettle / jacketed pot / cooking kettle
Here below is our gas heating soup boiler/jacketed kettle specification

Specification for gas heating jacketed kettle

Model	Heating Area (m²)	Conduction Oil (kg)	Blending Rate (r/min)	Boiling Time (min)
RG50	0.45	20	35	10~15
RG100	0.58	30	35	10~15
RG150	0.88	45	35	20~30
RG200	1.13	55	35	20~30
RG300	1.43	65	35	20~30
RG400	1.75	75	35	20~30
RG500	2.00	120	35	20~35
RG600	2.30	160	35	20~35
