Steam Jacketed Kettle with Agitator and Scraper for Jam

Customization:	Available
Type:	Cooking and Mixing
Voltage:	Customized

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

DG200

Customized

Jacketed Kettle Usage

Cooking and Mixing

Heating Type

Steam Heating

Pot Capacity

50liter to 600L Customized

Agitator / Stirrer

Without Agitator

Pot Type

Jacketed / Double Layer

Construction Material

Stainless Steel 304 / 316

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

Steam Jacketed Kettle With Agitator and scraper for jam

1. Steam jacketed kettle
2. Jacket Kettle With Agitator
3. Cheap jacketed cooling kettle

Usage:
1. Steam jacketed kettle is also called steam kettle or boiling kettle, which is being used widely to process various kinds of food, such as candy, dairy, beverage, pastry, confect, can food, braised food, pharmacy, liquor, etc;
2. It is can be used in large canteens or restaurants to decoct soup, stir-fry vegetable, stew meat, boil porridge, etc;
3. It is a very processing equipment which can help improve quality, shorten time, improve working conditions in processing food.

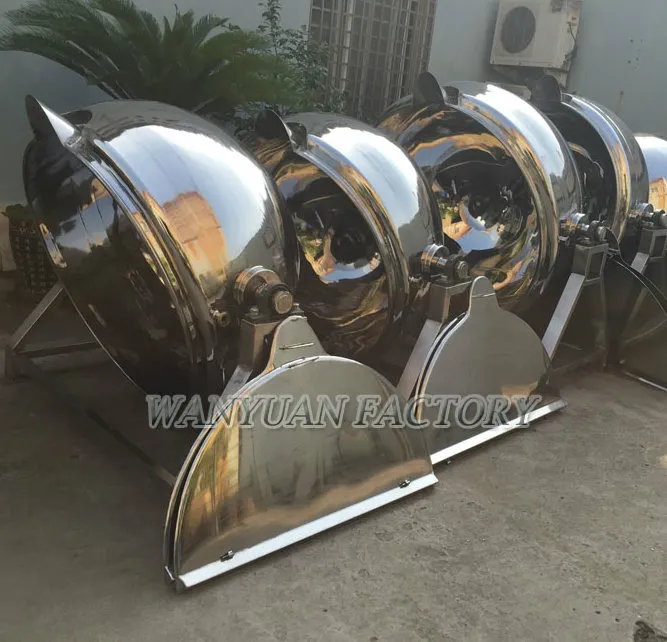

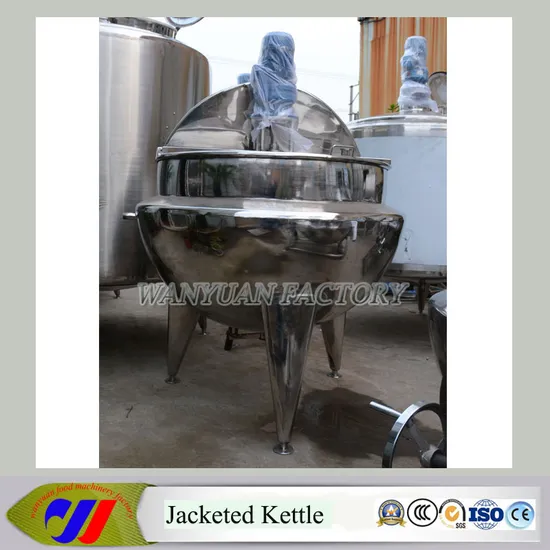

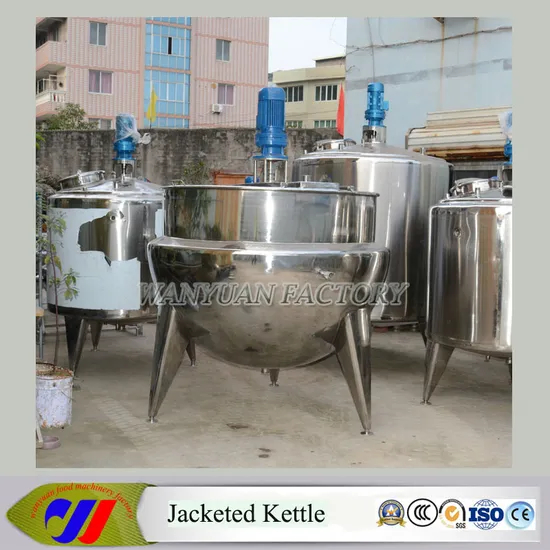

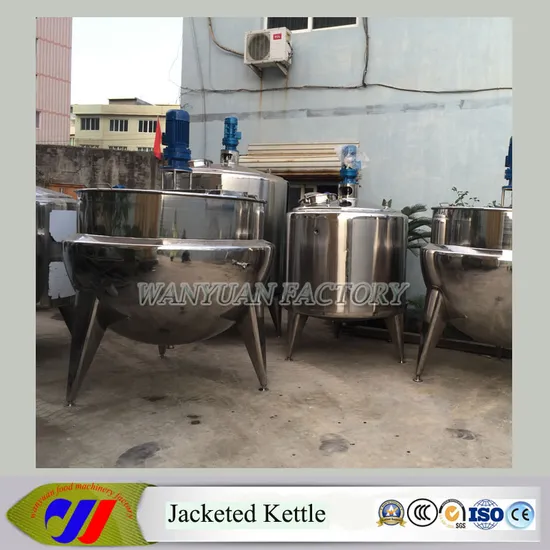

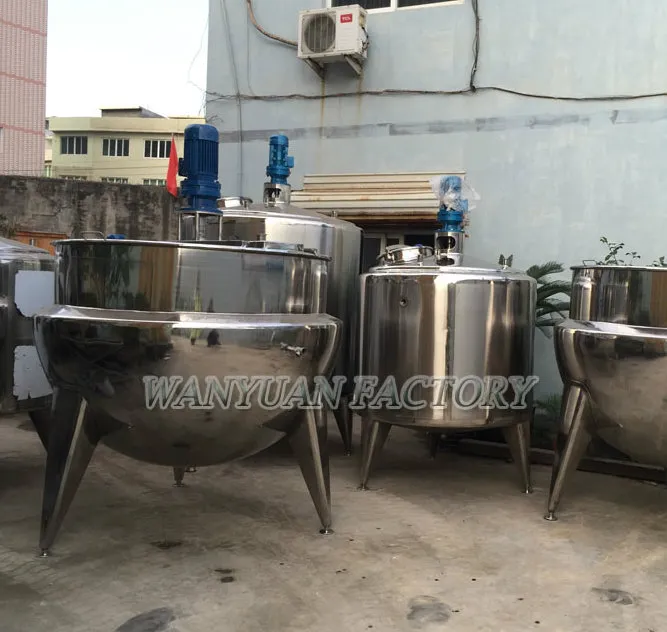

Steam Jacketed Kettle with Agitator and Scraper for Jam

Merit:
1. Steam jacketed kettle has a large heating area, high thermal efficiency, even heating, short liquid boiling time, easily-controlled heating temperature;
2. Inner pot is made of stainless steel(SUS304/SUS316L), the material of outer pot is carbon steel(Q235-B), non-corrosive, anti-acid, alkali-resistant, heat-resistant;
3. The fuel is steam, very environment-friendly;
4. It has an artistic figuration, high stability, easy to install and operate.
5. Four kinds--fixed VS tilting, with blender VS without blender

Here below is the specification of our steam heating jacketed kettle

Model	DG-100	DG-200	DG-300	DG-500	DG-600
Volume (L)	100	200	300	500	600
Pot Size (mm)	Φ700×530	Φ800×580	Φ900×630	Φ1100×730	Φ1200×780
Working Pressure(MPa)	≤0.3(jacket)
Working Temperature	≤100 degree C (material in pot) ≤143 degree C(jacket)
Blending Speed (r/min)	35
Steam Inlet(DN)	20	20	20	25	25
Heating Area(m2)	0.7	0.95	1.2	1.8	2.2
Evaporative Power(kg/h)	45	80	100	140	160
Steam Consumption (kg/h)	50	90	112	160	182
Motor Power (KW)	0.37	0.55	0.55	1.1	1.1
Dimension(cm)	115×80×100	135×90×107	145×100×115	165×120×136	176×130×146
Weight(kg)	180	200	220	290	320
