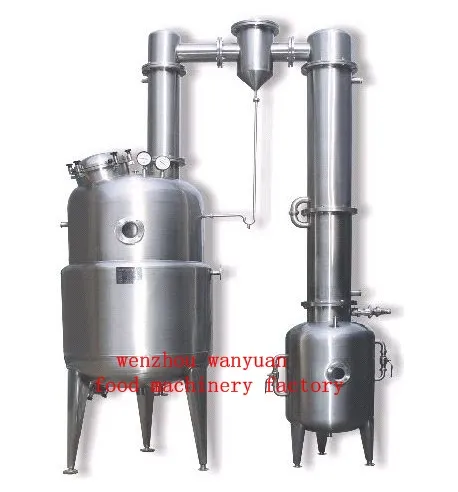

Single effect concentrating tank
This concentrator is suitable for concentrating the fluid materials of traditional medicine, western medicine, grape suger, strach, gourmet powder, food and milk products, chemical industry, especially for thermal sensitive matter low temperature vacuum concentration. Our factory has carried out careful accu mulation and meticulous design and reform and got more profits than the orginal characteristic. You can select the series concentrator in techical parameters according to your concentration degree.
Concentrator feature:
(1). Alcohol recovery: Recycle ability, adopts the vacuum concentration process. Than the old type 5 to 10 times more similar equipment to improve productivity, reduce energy consumption by 30%, with a small investment, high recovery efficiency characteristics.
(2). Concentrate: This equipment adopts heating natural cycle and vacuum negative pressure evaporation, a combination of evaporation speed, concentration ratio of 1.3; State of liquid in the seal foam concentration, concentration of solution with this equipment, with no pollution, the characteristics of the ingredients in thick, and convenient cleaning (open heater cover can be cleaned up and down). This equipment operation is simple, cover an area of an area small. Stainless steel heater, evaporator thermal insulation structure, insulating layer for external use stainless steel sheet production case, mirror or inferior smooth surface treatment.
Wenzhou wanyuan food machinery factory
The below is Concentrating Tank specification:
| Model | 50 | 100 | 200 | 300 | 500 | 700 |
| Steam pressure Mpa | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 | ≤0.15 |
| Heating area M2 | 0.4 | 0.59 | 0.8 | 1.1 | 1.45 | 1.8 |
| Condensation area M2 | 1.2 | 1.7 | 2.45 | 3.0 | 3.2 | 3.6 |
| Cooling area M2 | 0.25 | 0.35 | 0.4 | 0.6 | 0.7 | 0.85 |
| Heated tank volume L | 15 | 45 | 60 | 76 | 100 | 125 |
| Weight kg | ~350 | ~450 | ~550 | ~650 | ~800 | ~1000 |
| Overall dimensions mm | 1200×600
×2200 | 1350×750
×2200 | 1700×800
×2700 | 1700×1000
×3400 | 2100×1200
×3400 | 2400×1300
×3400 |
