100L Tilting Jacketed Cooking Kettle Steam Cooker

Customization:	Available
Type:	Cooking and Mixing
Voltage:	380V

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

DG-100

Customized

Jacketed Kettle Usage

Cooking and Mixing

Cooking Kettle Capacity

50/100 Liter

Heating Type

Electric Heating

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

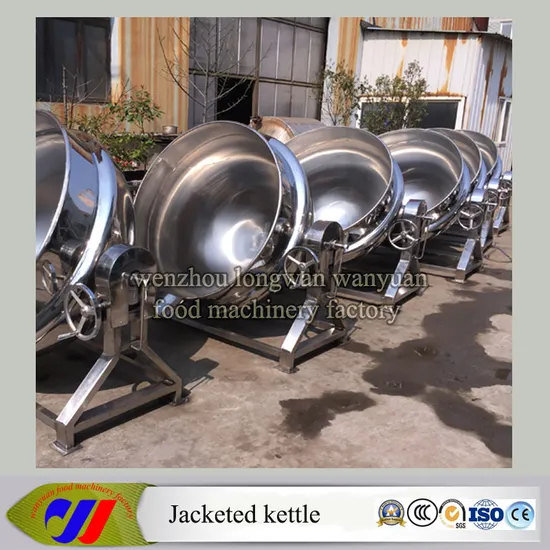

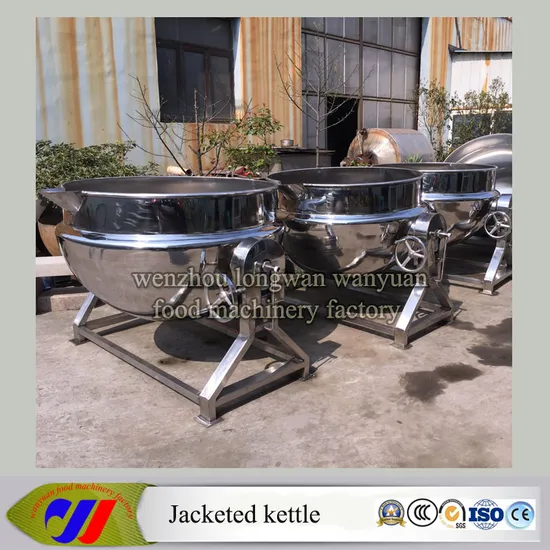

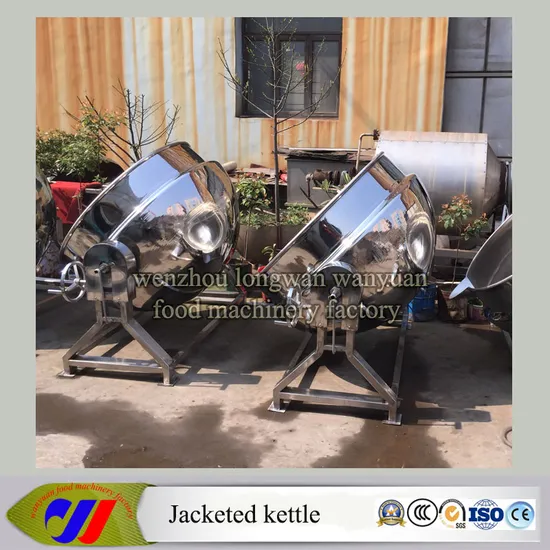

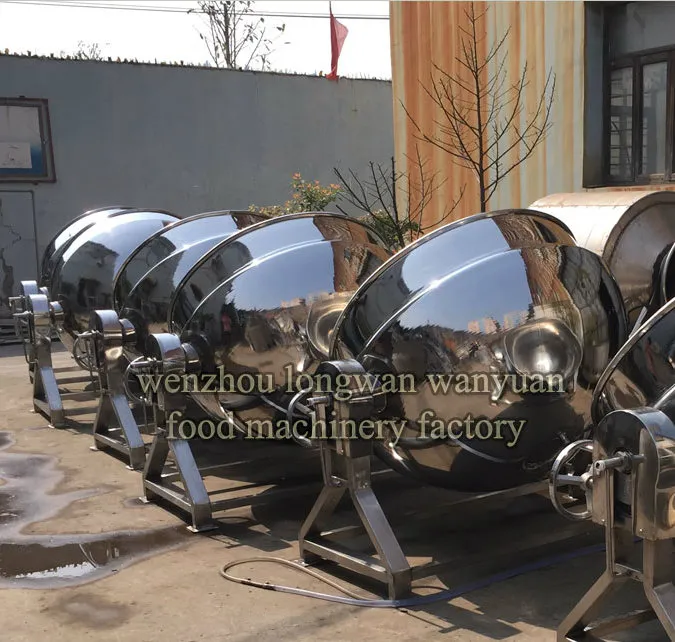

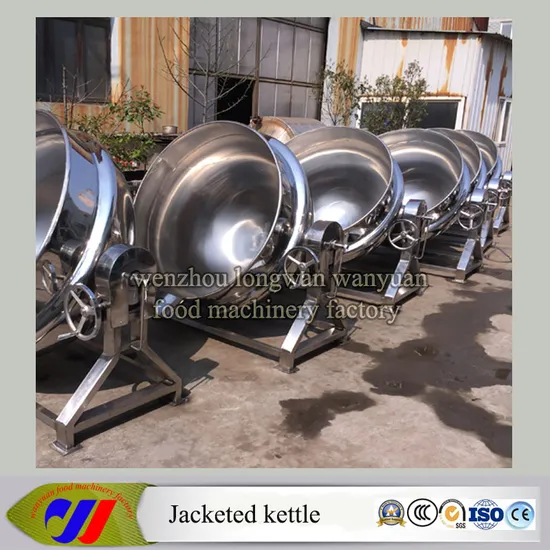

Tilting jacketed cooking kettle steam cooker
1. Big being heated area
2. High thermal efficiency
3. Being heated evenly short time of boiling
4. Temperature being controlled

Classification:
1. According to Structure: Tilting Jacketed Kettle and Vertical Jacketed Kettle
2. According to Heating: Electric Heating Jacketed Kettle, Steam Heating Jacketed Kettle and Gas Heating Jacketed Kettle
3. According to Process Need: Jacketed Kettle with Agitating and Jacketed Kettle without Agitating

Structure:
Tilting Jacketed Kettle is mainly composed of pot and tilting frame; And the pot is the double layer structure formed by inside and outside spherical pot; Middle layer can add steam to heat.
Material:
A) Common Jacketed Kettle Stainless steel inner pot(SUS304/SUS316L), carbon steel outer pot (Q235-B) treated with anti-rust paint
B) All Stainless Steel Jacketed Kettle The whole machine is made of stainless steel (SUS304/SUS316L)

Usage:
1. Be widely applied in food processing such as candy, medicine, dairy, alcohol, cake, sweetmeat, beverage, can, etc.
2. Can be used to boil soup, cook, stew and porridge in some large restaurants and canteens. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.

Characteristics:
1. Efficient Heating
Steam heating jacketed kettle takes a certain pressure of steam as heat source. It has characteristics such as big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating temperature etc.
2. Safety and Convenience
Steam heating jacketed kettle adopts stainless steel 304 as production material, which is resistant to heat and acid. The machine is equipped with pressure gauge, safety valve or electrical control box. Not only has good-appearance, but also easy to install and operate. It is safe and convenient.
100L Tilting Jacketed Cooking Kettle Steam Cooker

Wenzhou Wanyuan Food Mechanical Factory
Tilting jacketed cooking kettle

Here below is the specification of our 50L and 100L tilting jacketed kettle.

Model		DG-50	DG-100
Jacketed pot	diameter(mm)	Φ600	Φ700
Jacketed pot	depth(mm)	450	500
Total capacity (L)		50	100
Material in/out pipe		1/2"	3/4"
Heating power(kw)		12	18
Boiling time (min)		~8	~10
Heating area(m2)		0.45	0.58
Design temperature C		180	180
Max working temp C		151	151
Design pressure (MPa)		0.095	0.095
Max working pressure(MPa)		0.095	0.095
Max tilting Angle		90°	90°
overall dimension	Length (mm)	900	1000
	Width (mm)	650	750
	Height (mm)	1050	1100
