Stainless Steel Fermentation Cylinder

Customization:	Available
Condition:	New
Customized:	Customized

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WY-2000

Composition

Fermentation,Mixer

Processing Material

Natural Ingredients

Process

Ferment

Material

Ss304/316

Fermentation Capacity

100-15000L

Structure

Conical Jacket

Processing Types

Carbonated Beverage

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

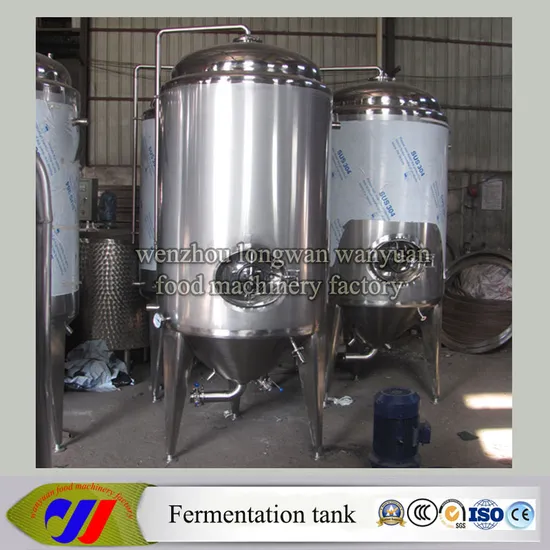

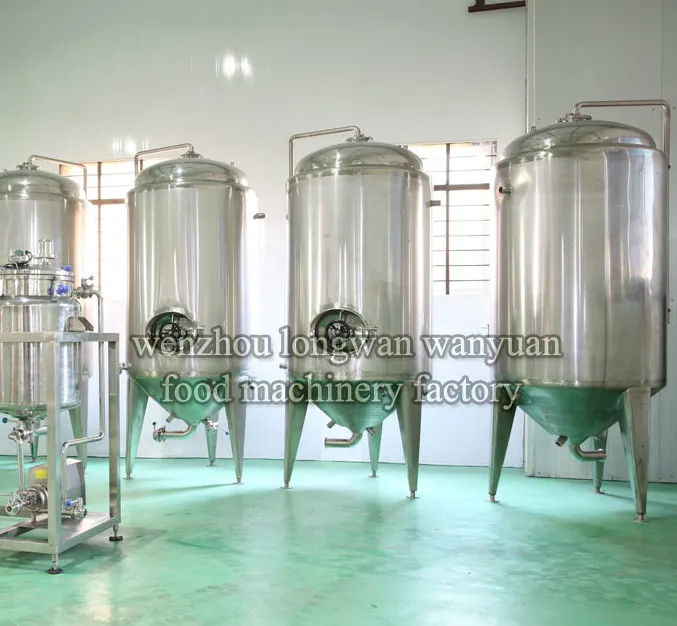

Stainless steel fermentation cylinder

Made of stainless steel 304 or 316
With conical bottom and cooling jacket
100L to 15000L capacity
Stainless steel cooling jacket conical beer fermenter

Beer fermentation cylinder/ fermentation cylinder/ Beer Fermenting equipment
All parts of TONGDA beer fermentation tanks are made in top-grade certified stainless steel materials (2B or precise polish for available surface).
All components are accordant to be made with the minimum thickness required by different countries. Insulations of un-press elements are made in 2mm thickness stainless steel (2B or precise polish for available surface). Only certified materials and professional design and manufacturing technique can meet fine quality.
TONGDA is always attaching high importance to be in line with international standard and fortunately. We also can custom fabricate any tank to meet your brewery's space and height restrictions.
Stainless Steel Fermentation Cylinder

Usage scope:
Glycol jacket conical fermenter
Stainless conical fermenter
Used conical fermenter
50l conical fermenter
100l beer fermenter
Cooling jacket conical fermenter
Small beer fermenters
Large beer fermenter
Beer fermenters for sale
Mini beer fermenter

Wenzhou wanyuan food machinery factory- - Fermentation cylinder
The following is the parameter of Fermentation cylinder

Specifications	100L	200L	500L	1m³	2m³	5m³	10m³	20m³
Diameter (mm)	400	500	700	900	1200	1500	1800	2300
Height (mm)	2000	2300	2650	2900	3800	4480	5250	6550
Tank pressure	0.2Mpa
Jacket pressure	0.3Mpa
Mixing speed(r/min)	400	360	265	220	180	160	145	125
Motor power(kw)	0.55	0.75	1.5	2.2	4	7.5	17	30
