150 Liter Semi-Automatic Type Cooking Kettle with Agitator

Customization:	Available
Type:	Cooking and Mixing
Voltage:	110V/220V/380V/415V

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

DG150

Customized

Cooking Kettle Capacity

50liter to 600L Customized

Cooking Pot Structure

Double Layer Made of Stainless Steel

Agitator

with / Without Agitator, Customized

Way of Discharge

Drainage From Bottom / Tiltable

Construction Material

Ss304 / Ss316

Transport Package

Wooden Case

Specification

CE

Origin

Wenzhou China

Product Description

150 Liter Semi-Automatic Type Cooking Kettle with Agitator
1. Cooking milk, juice, tomato puree, paste
2. Kettle capacity 50L, 100L, 200L <customized>
3. Tiltable with mixing scraper or mixing paddle

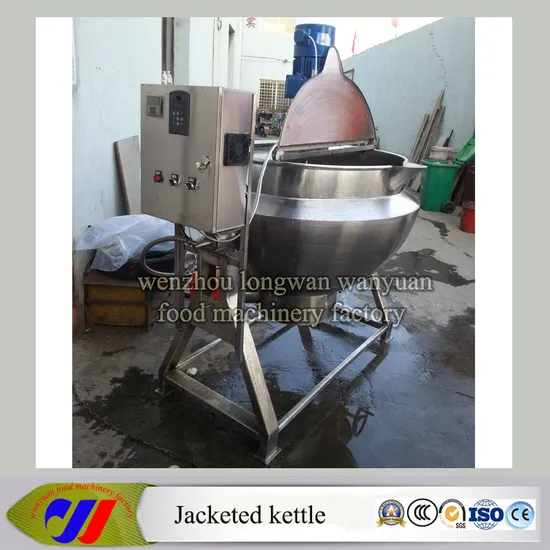

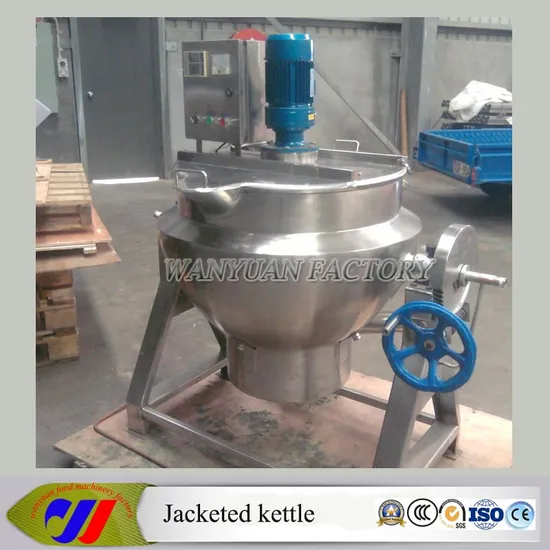

Electrical tilting jacketed kettle with scraper stirrer
Jacketed kettle or electric jacketed kettle can be designed into different type:
Tilting type cooking kettle and vertical type cooking kettle.
Tilting jacketed cooking kettle is designed with a tiltable device, you can turn the kettle or pot over for discharge after cooking.
Vertical cooking kettle is designed on 3 legs, there is a discharge pipe at the bottom of the jacketed pot.

Both of tilting cooking kettle and verticle cooking kettle can be designed with mixer or without mixer.

Electrical jacket kettle:
Our electrical jacket kettle takes heat conducting oil as thermal source. Compare with steam heating, the heating temperature of of the electrical jacket kettle is higher than steam jacket kettle, which can shorten the cooking time. We also call electric heating kettle as oil jacketed kettle or oil jacketed cooking vat.

Our jacket kettle normally used for producing sauces, pasta, vegetables, soups, juice, meat, candy and other food products. It also can be used as simple sterilization boiler.

Wenzhou wanyuan food machinery factory
Cooking kettle / cooking pan / cooking vat / specification
Here below is the specification of our 100L electric cooking kettle and 200L electric heating cooking kettle

Model		DG-200	DG-100
Jacketed pot	diameter(mm)	Φ800	Φ700
Jacketed pot	depth(mm)	550	500
Total capacity (L)		200	100
Material in/out pipe		1/2"	3/4"
Heating power(kw)		12	18
Boiling time (min)		~13	~10
Heating area(m2)		1.13	0.58
Design temperature (degree C)		180	180
Max working temp (degree C)		151	151
Design pressure (MPa)		0.095	0.095
Max working pressure(MPa)		0.095	0.095
Max tilting Angle		90°	90°
overall dimension	Length (mm)	1100	1000
	Width (mm)	850	750
	Height (mm)	1450	1100
