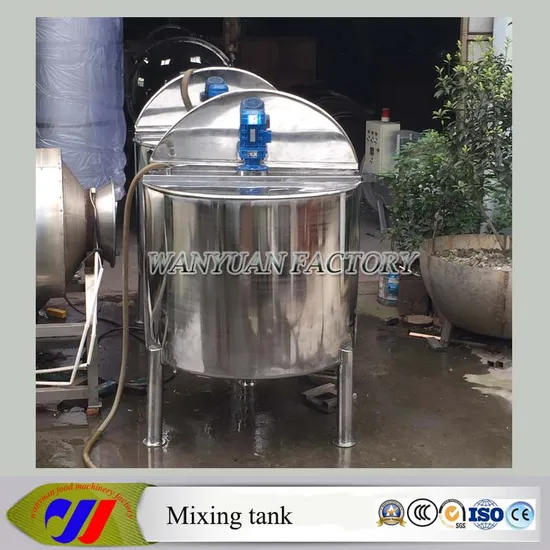

Conical Bottom Mixing Tank with VFD Used for Juice Production

Customization:	Available
Additional Capabilities:	Milling
Application:	Liquid with Suspended Solids, Viscous Fluid, Liquid

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

LRG 500

Certification

CE, ISO

Condition

New

Mixing Drum Shape

Disc

Stirring Type

Spiral

Working

High Speed Mixer

Mixing Tank Capacity

50liter ~ 1500liter

Mixing Tank Structure

Single Layer for Mixing Only

Optional Structure

Double Layer for Heat Preservation

Other Optional Structure

3-Wall Structure for Cooling and Heating

Tank Material

Stainless Steel

Mixer Power

0.5 Kw ~ 2.2kw

Agitator Type

Paddle or Anchor

Mixer Type

Static Mixers

Layout Type

Verticle

Operating type

Cycle Operating

Transport Package

Wooden Case

Origin

Wenzhou China

Product Description

Conical bottom mixing tank with VFD used for juice production
Tank bottom can be made into conical type.
The mixer agitator can be designed according to your juice production request.

According to different request, we can produce high speed tanks into:
1. High shear mixer with conical bottom
2.200rpm mixing tank with single layer structure
3. High speed mixing tank with heating function

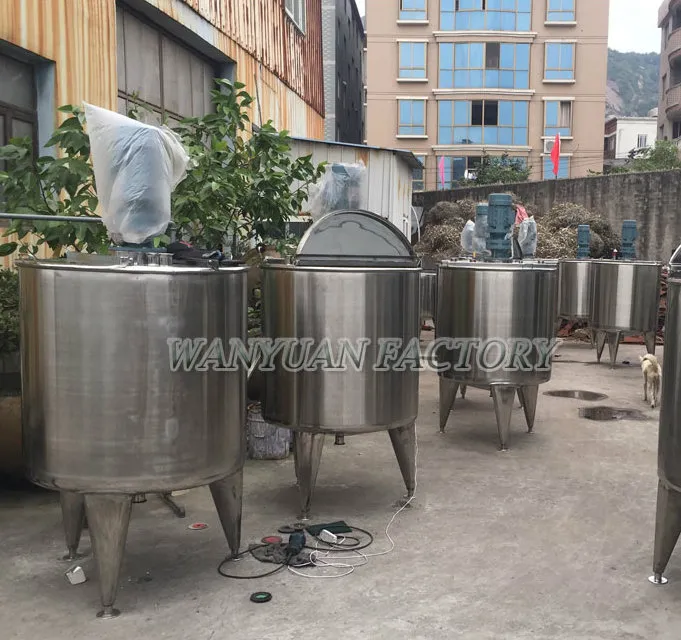

Conical Bottom Mixing Tank with VFD Used for Juice Production

Wenzhou wanyuan food machinery factory
The below is mixing tank specification:

volume (L)	Dimension (D× h ) (mm)	Total height (mm)	Diameter Of inlet & outlet	Heat preservation layer (mm)
500	840 × 1000	2250	38	60
600	920 × 1000	2300	38	60
700	990 × 1000	2300	38	60
800	950 × 1220	2500	38	60
900	1010 × 1220	2500	38	60
1000	1060 × 1220	2550	51	60
1500	1160 × 1500	2850	51	60
2000	1340 × 1500	2900	51	60
3000	1410 × 2000	3400	51	60
4000	1620 × 2000	3450	51	60
5000	1810 × 2000	3500	51	60
