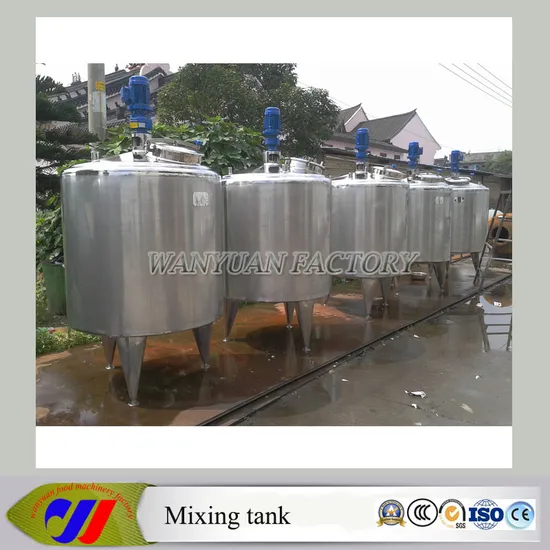

Stainless steel beverage jackets storage tank
1. Sanitary
2. Reliable Performance
3. Easy to control
4. Environmental
5. Provide custom service
Details:
1. Usually it has jacket or coiler pipe for cooling/heating
2. The wetted part material can be enamel, C. S., S. S or non-metal material
3. Surface treatment: Acid-dipping, polishing, corrosion resistant coating
4. With lifting lugs or supporting legs
5. Custom-made design is available
Specification:
Chemical mixing tank is a container with an agitator for mixing, dispersing and reaction of different materials in chemical production. It is widely used in chemical, food, pharmaceuticals, resin, coating, paint, printing ink industry. It can be either dished end type or flat lid type, with level gauges, temperature detectors and display device. Usually, it has manhole, sight glass, feeding inlet, discharging outlet and spare openings. For different production process and reaction materials, we will have different designs and configurations, mainly displayed on its shape, overall size, sanitary requirement, seal effect, with condenser, heat exchanger, pressure sensor, temperature sensor and load cell. Various agitators and discharging modes for option.
Wenzhou wanyuan food machinery factory- - Mixing tank /storage tank
Our Mixing tank capacity can be 50L, 200L, 500L, 2000L or any other capacity you need.
| volume (L) | Dimension
(D× h ) (mm) | Total height (mm) | Diameter Of inlet
& outlet | Heat preservation layer (mm) |
| 500 | 840 × 1000 | 2250 | 38 | 60 |
| 600 | 920 × 1000 | 2300 | 38 | 60 |
| 700 | 990 × 1000 | 2300 | 38 | 60 |
| 800 | 950 × 1220 | 2500 | 38 | 60 |
| 900 | 1010 × 1220 | 2500 | 38 | 60 |
| 1000 | 1060 × 1220 | 2550 | 51 | 60 |
| 1500 | 1160 × 1500 | 2850 | 51 | 60 |
| 2000 | 1340 × 1500 | 2900 | 51 | 60 |
| 3000 | 1410 × 2000 | 3400 | 51 | 60 |
| 4000 | 1620 × 2000 | 3450 | 51 | 60 |
| 5000 | 1810 × 2000 | 3500 | 51 | 60 |
