Stainless Steel Electric Heating Cosmetics Mixing Tank Reaction Kettle

Customization:	Available
Additional Capabilities:	Milling
After-sales Service:	Warranty 1 Year

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

WY-1000

Application Area

Chemical

Certification

CE

Condition

New

Heating Method

Electric Heating, Electric Heating and Steam Heating

Main Material

Stainless Steel

Mixing Drum Shape

Disc

Stirring Type

Spiral

Warranty

1 year

Working

High Speed Mixer

Material

Ss304/316L

Agitator Type

Anchor Frame Impeller Magnetic etc

Structure

3 Layer, 2 Layer or 1 Layer

Mixer Type

Agitator

Layout Type

Verticle

Operating type

Cycle Operating

Transport Package

Wooden Case

Specification

CE ISO

Origin

Wenzhou China

Product Description

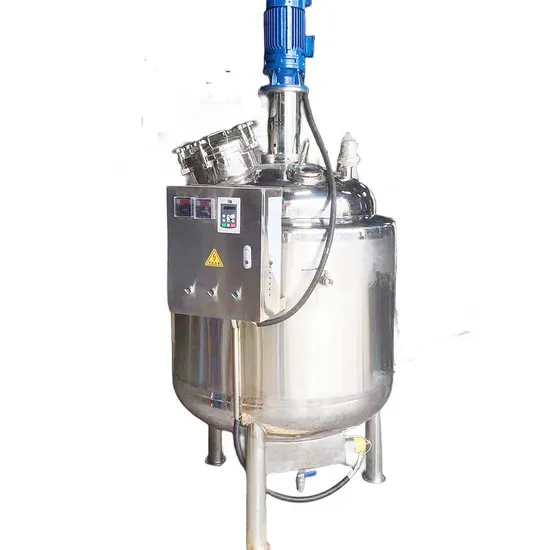

100L Stainless steel electric heating cosmetics mixing tank
Name: Stainless Steel Mixing Tank
Automation: Manual, semi-automatic, full-automatic
Capacity: 100-1000L
Suitable Temp.: 0-150 ºC or higher upon requirement
Power: 380V/50HZ/3Phase or customized
Control System: Push button/PLC/touch screen; Optional
Material: SUS304/316L
Structure: 3 layers(inner layer, jacket, insulation layer), 2 layers, 1 layer upon requirement
Surface: Inner/outer polished, outer: Drawbench polished, can be customized
Stirring method: One direction mixing or two direction(optional)

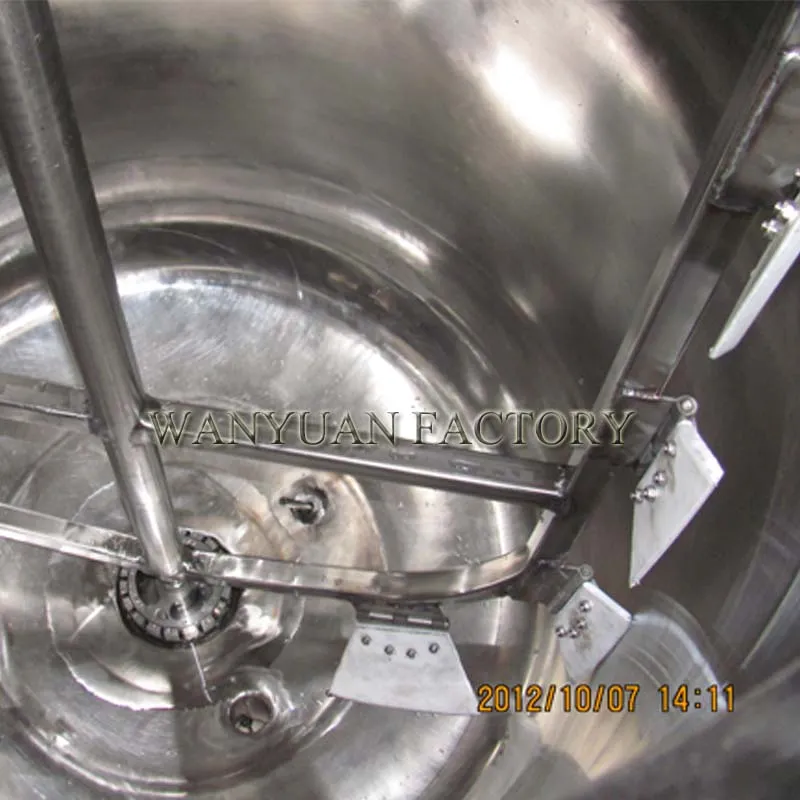

Stirrer type: Can be selected from anchor type, impeller type, frame type, high speed shear, magnetics type and etc.
Application: Can be used to mix and melt all kinds of materials in industries like pharmacy, cosmetics, chemicals, resins, paintings, confectionary, pigments and etc.,

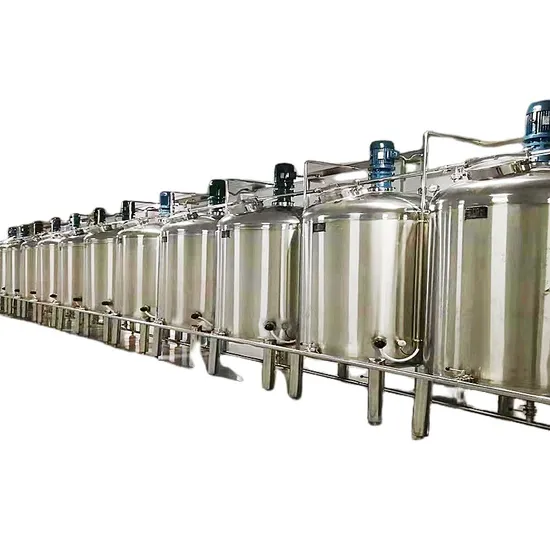

Mixing tank Machinery Range
Stainless steel mixing/melting/storage tank series
Homo and vacuum mixing tank
Softgel capsule production line supportive machinery
Pharmaceutical CIP&SIP system
Herbal Extraction and concentration/evaporation machinery
Stainless Steel Electric Heating Cosmetics Mixing Tank Reaction Kettle

Mixing tank Features
A full range of products to specifically meet client production need
With high technology and advanced automation
Fully meet the standard of GMP and CGMP
Overall service from consultation, design, manufacturing, installation, operation and training

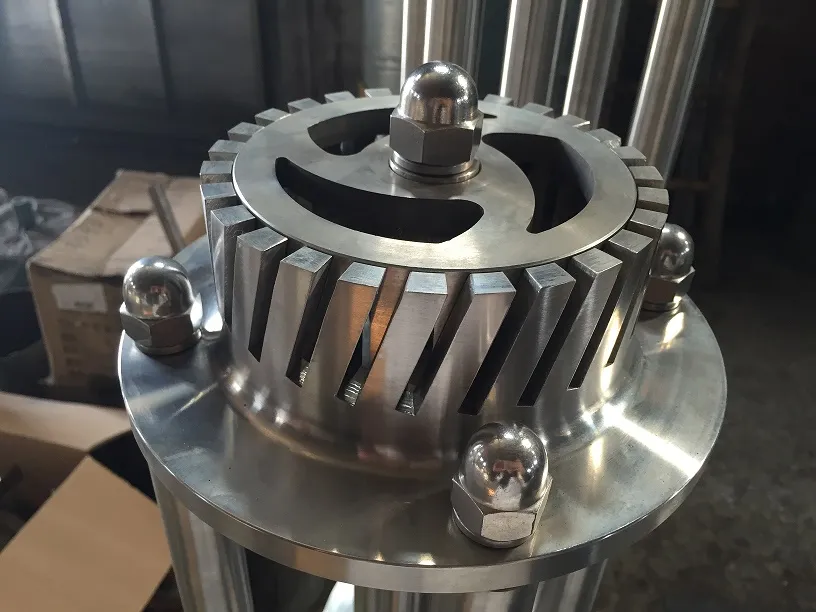

Impeller type:
Stainless Steel Electric Heating Cosmetics Mixing Tank Reaction Kettle

Our Mixing tank capacity can be 50L, 200L, 500L, 2000L or any other capacity you need.

volume (L)	Dimension (D× h ) (mm)	Total height (mm)	Diameter Of inlet & outlet	Heat preservation layer (mm)
500	840 × 1000	2250	38	60
600	920 × 1000	2300	38	60
700	990 × 1000	2300	38	60
800	950 × 1220	2500	38	60
900	1010 × 1220	2500	38	60
1000	1060 × 1220	2550	51	60
1500	1160 × 1500	2850	51	60
2000	1340 × 1500	2900	51	60
3000	1410 × 2000	3400	51	60
4000	1620 × 2000	3450	51	60
5000	1810 × 2000	3500	51	60
