50L 100L Tilting Heating Jacketed Kettle with Cover (Electric Heating)

Customization:Available
Type:Cooking and Mixing
Voltage:415V/380V/220V/110V
Quantity:

Basic Info.

Model NO.
DG100
Customized
Customized
Jacketed Kettle Usage
Cooking and Mixing
Cooking Kettle Capacity
50/100 Liter
Heating Type
Electric Heating/ Steam Heating/ Gas Heating
Material
Stainless Steel 304 / 316
Structure
Fixed/ Tilting
Heating Power
12kw
Transport Package
Wooden Case
Origin
Wenzhou China

Product Description

Tilting Jacketed Kettle With Cover (Electric Heating)/Jacketed Boiler/Jacketed Cooking Pot
1. Jacketed kettle made of stainless steel
2. Cooking Pot with functions of tilt
3. Automatic control temperature


Electrical jacketed kettle

Our electrical jacketed kettle takes heat conducting oil as thermal source. Compare with steam heating, the heating temperature of of the electrical jacketed kettle is higher than steam jacket kettle, which can shorten the cooking time. We also call electric heating kettle as oil jacketed kettle or oil jacketed cooking vat
Our jacketed kettle normally used for producing sauces, pasta, vegetables, soups, juice, meat, candy and other food products. It also can be used as simple sterilization boiler.

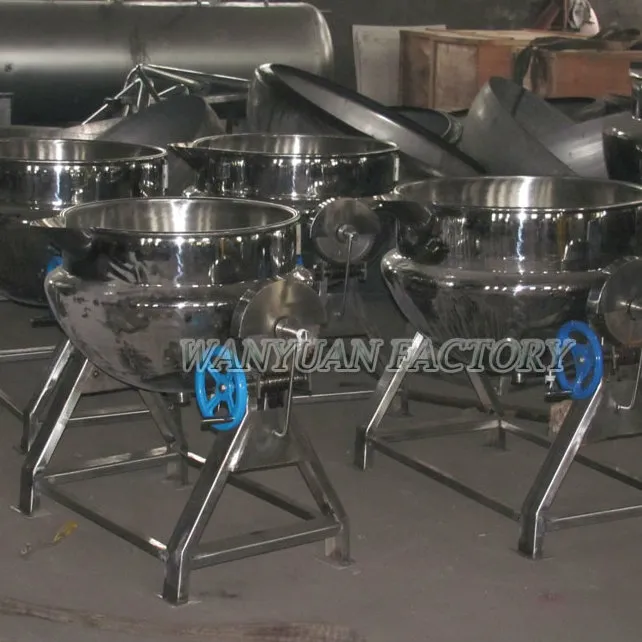

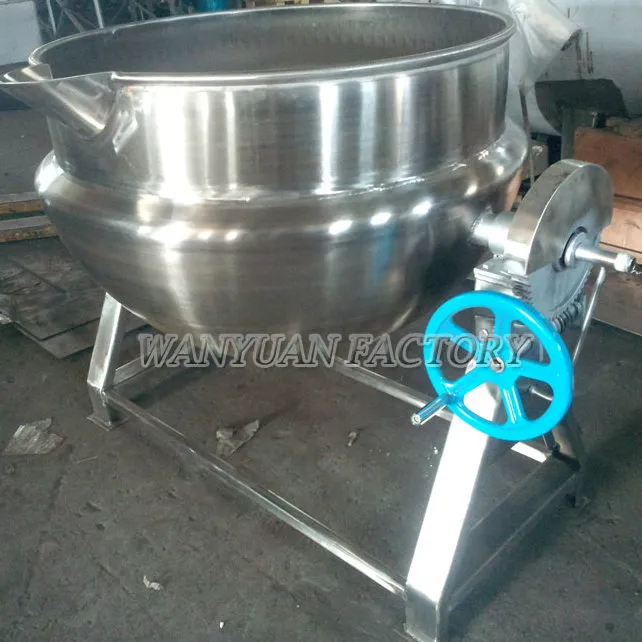

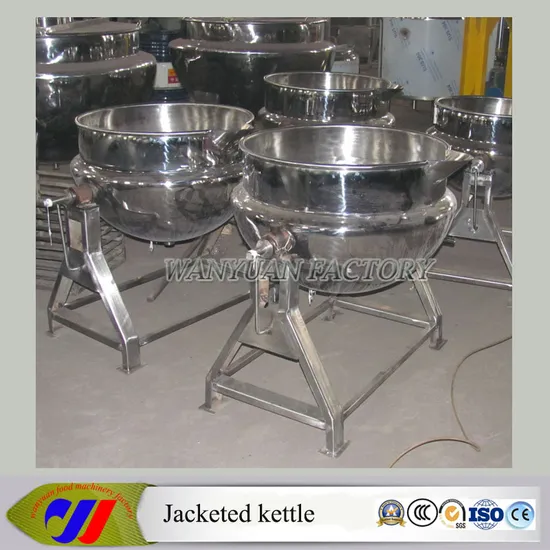

Jacketed kettle picture one:
50L 100L Tilting Heating Jacketed Kettle with Cover (Electric Heating)

50L 100L Tilting Heating Jacketed Kettle with Cover (Electric Heating)

Wenzhou Wanyuan Food Mechanical Factory——Jacketed kettle
Tilting Jacketed Kettle With Cover(Electric Heating)

Here below is the specification of our 50L and 100L tilting jacketed kettle.
Model DG-50 DG-100
Jacketed pot diameter(mm) Φ600 Φ700
depth(mm) 450 500
Total capacity (L) 50 100
Material in/out pipe 1/2" 3/4"
Heating power(kw) 12 18
Boiling time (min) ~8 ~10
Heating area(m2) 0.45 0.58
Design temperature C 180 180
Max working temp C 151 151
Design pressure (MPa) 0.095 0.095
Max working pressure(MPa) 0.095 0.095
Max tilting Angle 90° 90°
overall dimension Length (mm) 900 1000
Width (mm) 650 750
Height (mm) 1050 1100
