Sanitary Tilting & Agitation Jacketed Kettle 1 Material: AISI304 , AISI316L 2 polished inside out side 3.double-layer 4.Special design for you Working principle:
Tilting jacketed kettle is composed of kettle ,backet ,worm wheel and worm etc. The kettle can revolve with 180 degree,the equipment is used for open concentration,mainly for deoting and concentration of liquids in industries of pharmaceutical industry ,food industry ,chemical industry and light industry etc. Contact area of the equipment with materials if made of stainless steel SUS304,which has perfect corrsion-proof performance, and is highly endurable according to GMP requirements.Blender also can be added according customer requirements.

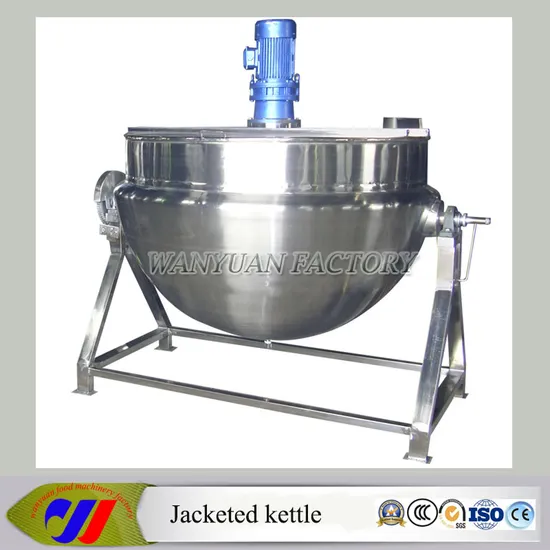

Jacketed kettle / jacketed pot / cooking kettle/Tilting Jacketed Kettle
Tilting jacket kettle is widely used for the cooking of fruit, vegetable, soup, candy. Also used in the processing of sweets, pharmacy, dairy, alcohol, pastry, beverage, succade and so on.
Tilting heating jacketed kettle can also be used for large-scale restaurants and dining rooms, which can improve processing quality and working condition, and shorten the processing time.

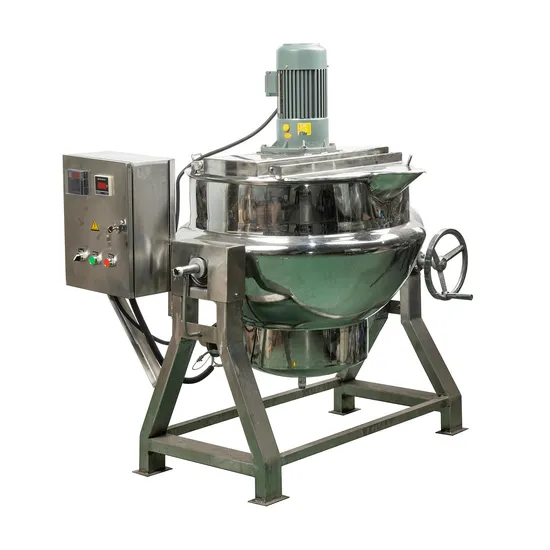

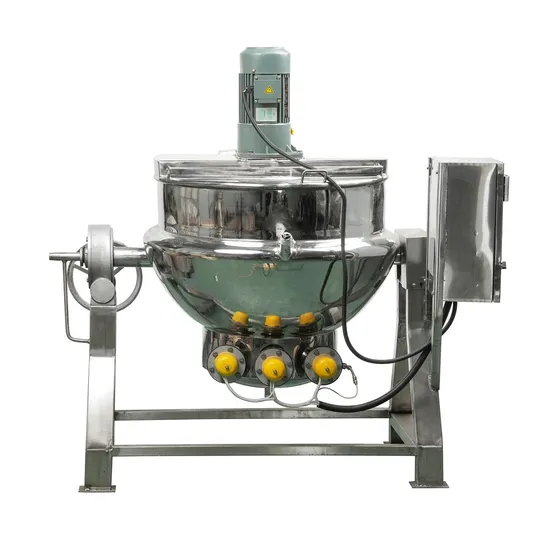

This cooking kettle takes 110V to 480V voltage <can be customized> as its heat source, with electrical bar, electric couple and conduction oil in interlayer, as high as 250°C, controlled by electric cabinet. Our jacketed kettle has advantages of big heating area, high heat-efficiency, homogeneous heating, short boiling time, controllable heating temperature ect.
Wenzhou wanyuan food machinery factory--Jacketed kettle Jacketed Kettle, Electric Jacketed Kettle Sanitary Tilting & Agitation Jacketed Kettle specification
The below is jacketed kettle specification: | Items | DG-50 | DG-100 | DG-200 | DG-300 | DG-500 |
| Pot | Diameter mm | Φ600 | Φ700 | Φ800 | Φ900 | Φ1100 |
| Depth mm | 450 | 500 | 550 | 650 | 850 |
| Total capacity L | 50 | 100 | 200 | 300 | 500 |
| Pipe Size | 1/2" | 3/4" | 3/4" | 3/4" | 3/4" |
| Stirring power kw | 0.75 | 1.1/1.5 | 1.1/1.5 | 1.5/1.75 | 1.75/2.2 |
| Electrical Heating Powerkw | 12 | 18 | 24 | 24 | 30 |
| Boiling timemin | ~7 | ~10 | ~13 | ~16 | ~26 |
| Heat transfer area M2 | | | | | |
| Design temperature C | 180 | 180 | 180 | 180 | 180 |
| Max working temperature C | 151 | 151 | 151 | 151 | 151 |
| Design pressureMPa | | | | | |
| Max working pressureMPa | 0.095 | 0.095 | 0.095 | 0.095 | 0.095 |
| Maximum slope Angle | 90° | 90° | 90° | 90° | 90° |
| Overall dimensions | Length mm | | 1000 | 1100 | | |
| Width mm | 650 | | 850 | 950 | 1150 |
| Height mm | 1350 | 1400 | | 1500 | |
