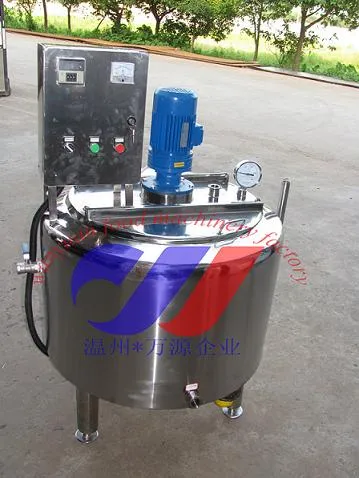

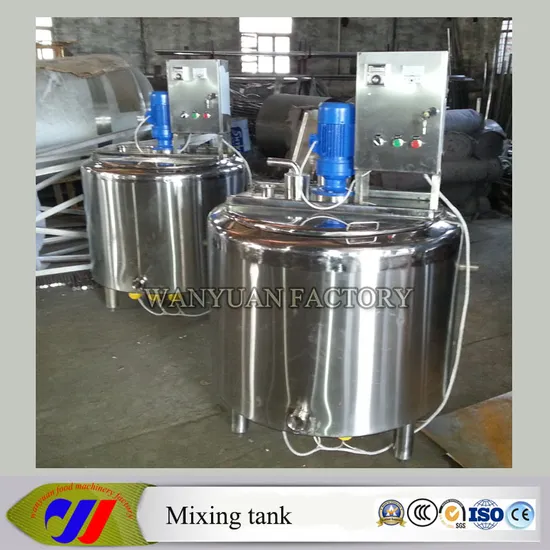

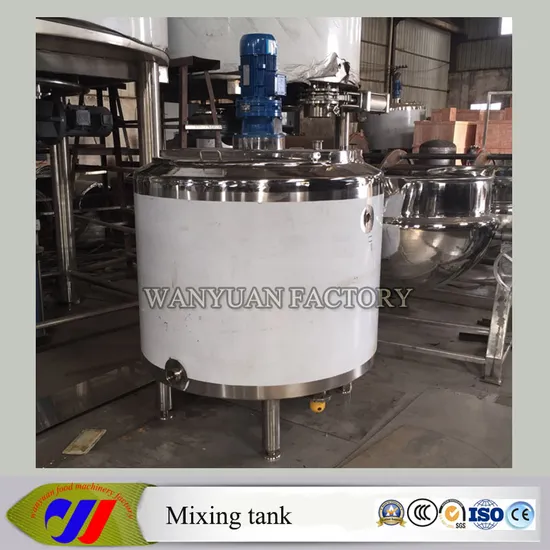

200L electric syrup mixing tank 1. Stainless steel contact part
2. Electric heating
3.30~150 degree C temperature range
200 L vessel syrup mixing tank 316L/304 stainless for inner tank, agitator and homogeniser
0.75 kw motorfor 200L mixing vessel syrup mixing tank
3T/Hr lobe pump for syrup mixing tank
need heating elements adding to tank and can fill the jacket with water
include pipeline an valve to connect pump.
Please include shipping to destination sea port
200L syrup mixing tank- - Use normal water as heating and cooling medium
200L syrup mixing tank electric heating mixing tank with cooling and heating jacket
200L syrup mixing tank electric heating | Capacity | 200L |
| FOB price | .....usd |
| Material | SS304 |
| Thickness of wall | 3mm / 3mm / 2mm |
| Diameter | Φ1300 |
| Height | 1650mm |
| Motor power | 1.1KW |
| Mixing speed | 36rpm |
| Insulation thickness | 50mm |
| Heating power | 15KW |
| Heating medium | Water |
| Cooling medium | Water |
| Discharge pipe | DN38 discharge from bottom side |
| Temperature range | 30~180 degree C |
