Tilting Jacketed Kettle Electric Heating Jacketed Cooking Pot (DG50~DG600)

Customization:	Available
Type:	Cooking and Mixing
Voltage:	110V/220V/380V/415V

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

DG50~DG600

Customized

Jacketed Kettle Usage

Cooking and Mixing

Heating Type

Electric Heating

Way of Discharge

Tilting for Discharge / Bottomdischarge

Agitator / Stirrer

with / Without Agitator, Customized

Mixing Scraper

Customized

Transport Package

Wooden Case

Specification

SS304/SS316

Trademark

Wanyuan

Origin

Wenzhou

HS Code

8479819000

Production Capacity

5000

Product Description

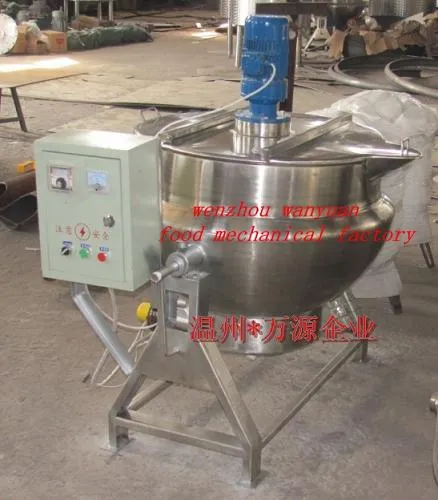

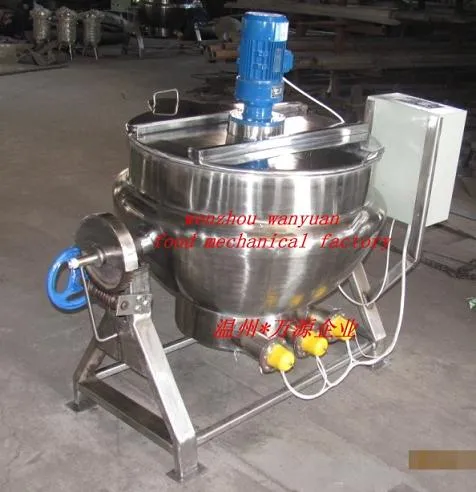

Tilting Jacketed Kettle Electric Heating Jacketed Cooking Pot
1.Jacketed kettle made of stainless steel
2.Cooking pot with functions of tilt
3.Automatic control temperature

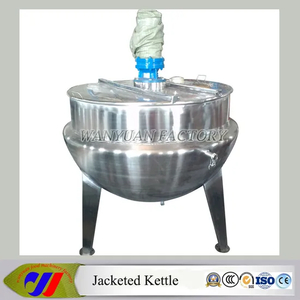

Jacketed kettle / jacketed pot / cooking kettle/ Tilting Jacketed Kettle
Tilting jacket kettle is widely used for the cooking of fruit, vegetable, soup, candy. Also used in the processing of sweets, pharmacy, dairy, alcohol, pastry, beverage, succade and so on.
Tilting heating jacketed kettle can also be used for large-scale restaurants and dining rooms, which can improve processing quality and working condition, and shorten the processing time.
This cooking kettle takes 110V to 480V voltage <can be customized> as its heat source, with electrical bar, electric couple and conduction oil in interlayer, as high as 250°C, controlled by electric cabinet. Our jacketed kettle has advantages of big heating area, high heat-efficiency, homogeneous heating, short boiling time, controllable heating temperature ect.

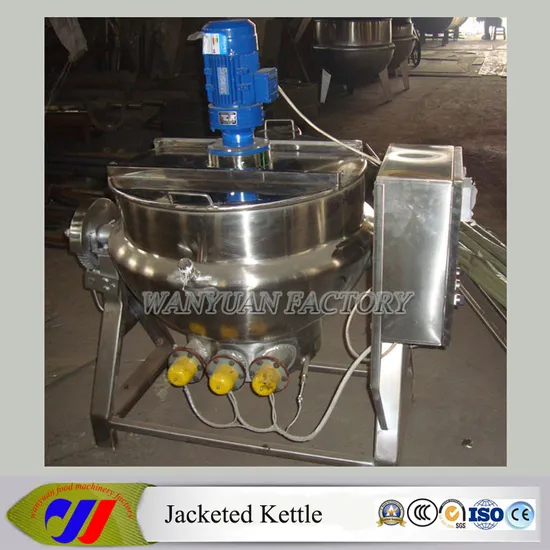

Tilting Jacketed Kettle Electric Heating Jacketed Cooking Pot (DG50~DG600)

The inner layer of this electric jacketed kettle is made of austenitic stainless steel, equipped with pressure gauge, safety valve and electric cabinet, featured by good appearance, easy operation and reliable insulating property.

Jacketed Kettle, Electric Jacketed Kettle, Oil Jacketed Kettle specification

Items		DG-50	DG-100	DG-200	DG-300	DG-500
Pot	Diameter mm	Φ600	Φ700	Φ800	Φ900	Φ1100
Pot	Depth mm	450	500	550	650	850
Total capacity L		50	100	200	300	500
Pipe Size		1/2"	3/4"	3/4"	3/4"	3/4"
Stirring power kw		0.75	1.1/1.5	1.1/1.5	1.5/1.75	1.75/2.2
Electrical Heating Powerkw		12	18	24	24	30
Boiling timemin		~7	~10	~13	~16	~26
Heat transfer area M2
Design temperature C		180	180	180	180	180
Max working temperature C		151	151	151	151	151
Design pressureMPa
Max working pressureMPa		0.095	0.095	0.095	0.095	0.095
Maximum slope Angle		90°	90°	90°	90°	90°
Overall dimensions	Length mm		1000	1100
	Width mm	650		850	950	1150
	Height mm	1350	1400		1500
