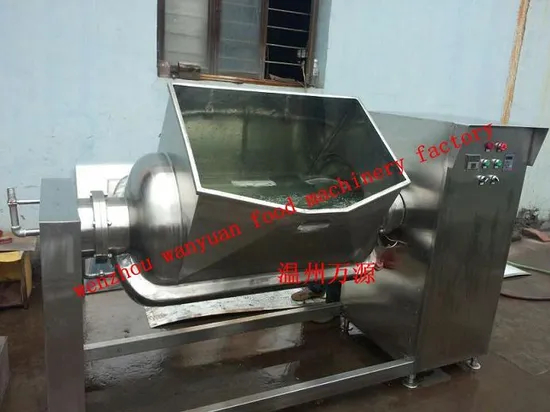

Adjustable speed stainless steel Agitator kettle
1. Made of stainless steel
2. Can be used to make make jam, tomato sauce, steak sauce etc have certain viscosity materials
3. Customized mixing tank capacity
4. Speed can be adjusted
Mixing Tank <mixing tanks> mainly made of stainless steel, used for make jam, tomato sauce, steak sauce, etc have certain viscosity materials.
Also, you can use this mixing tanks to mix liquid and power to make a mixture.
Mixing tanks can be with different mixing speed. But due to some production request, you may need the mixing tanks with variable speed. In special request, we can use VFD<Variable Frequency Drive> to meet your special mixing speed request.
Wenzhou wanyuan food machinery factory mainly produce stainless steel mixing tanks for jam, tomato sauce, steak sauce as well as chemical product.
Wenzhou wanyuan food machinery factory
Adjustable speed Agitator kettle
Our Mixing tank capacity can be 50L, 200L, 500L, 2000L or any other capacity you need.
The below is agitator kettle specification:
| Model | volume(m 3 ) | Inventory
(kg/each) | Overall dimensions
X*Y*Z(mm) | Speed time(min) | Mixing speed (r/min) | Motor power (kw) |
| 50 | 0.05 | 38 | 1300*1000*540 | 6-15 | 28 | 1.5 |
| 100 | 0.10 | 83 | 1400*1100*600 | 6-15 | 26 | 2.2 |
| 150 | 0.15 | 124 | 1360*1120*600 | 6-15 | 24 | 3 |
| 200 | 0.2 | 140 | 1460*1200*600 | 6-15 | 24 | 4 |
| 300 | 0.3 | 210 | 1820*1240*680 | 6-15 | 24 | 5.5 |
| 400 | 0.4 | 310 | 2000*1240*780 | 6-15 | 20 | 5.5-6 |
| 500 | 0.5 | 350 | 500*1240*780 | 6-15 | 18 | 7.5-6 |
| 750 | 0.75 | 560 | 2200*1240*780 | 6-15 | 16 | 7.5-6 |
| 1000 | 1.0 | 780 | 2300*1260*800 | 6-15 | 16 | 11-6 |
| 1500 | 1.5 | 1150 | 2500*1300*860 | 6-15 | 12 | 11-6 |
| 2000 | 2.0 | 1500 | 2600*1400*940 | 6-15 | 12 | 15-6 |
| 2500 | 2.5 | 2100 | 3000*1560*1160 | 8-20 | 12 | 18.5-6 |
| 3000 | 3.0 | 2250 | 3800*1780*1500 | 8-20 | 10 | 22-6 |
