Vertical Steam Heating Jacketed Cooking Kettle Mixing Vessel

Customization:	Available
Type:	Cooking and Mixing
Voltage:	380V

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

GTJ-300

Customized

Jacketed Kettle Usage

Cooking and Mixing

Heating Type

Steam Heating

Way of Discharge

Tilting for Discharge / Bottomdischarge

Agitator / Stirrer

with / Without Agitator, Customized

Mixing Scraper

Customized

Transport Package

Wooden Case

Specification

SS304/SS316

Trademark

Wanyuan

Origin

Wenzhou China

HS Code

8479819000

Production Capacity

5000

Product Description

Vertical Steam heating jacketed kettle
Its also named vertical steam heating double-layer cauldron. It has been widely applied in food processing such as candy, medicine, dairy, alcohol, cake, beverage, sweetmeat, can, etc. Some large restaurants and canteens also use it to boil soup, cook, stew and porridge. It is considered to be the ideal equipment in the area of improving quality, shortening the time and improving working conditions.

Material
A) Stainless steel inner pot(SUS304/SUS316L), carbon steel outer pot (Q235-B) treated with anti-rust paint
B) The whole machine is made of stainless steel ( SUS304/SUS316L)

Characteristics of Jacketed Kettle
1. Efficient Heating
Steam heating jacketed kettle takes a certain pressure of steam as heat source. It has characteristics such as big heating area, uniform heating, high thermal efficiency, short boiling time, easy control of the heating temperature etc.

2. Safety and Convenience
Steam heating jacketed kettle adopts stainless steel 304 as production material, which is resistant to heat and acid. The machine is equipped with pressure gauge, safety valve or electrical control box. Not only has good-appearance, but also easy to install and operate. It is safe and convenient.

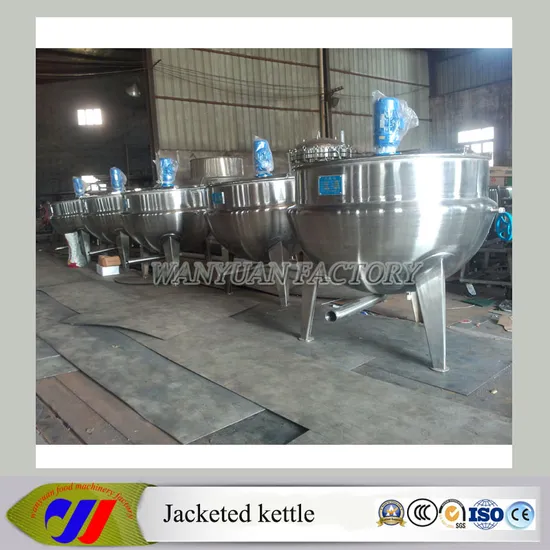

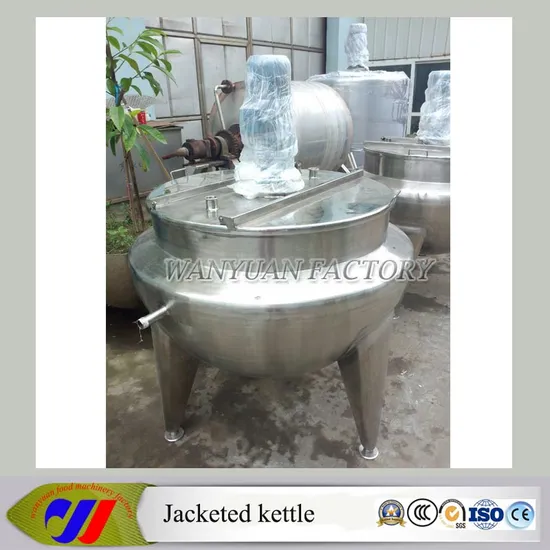

Pictures of Vertical Steam Jacketed Kettle:

Wenzhou wanyuan food machinery factory- -Vertical Steam heating jacketed kettle

The below is jacketed kettle specification:

Items		DG-50	DG-100	DG-200	DG-300	DG-500
Pot	Diameter mm	Φ600	Φ700	Φ800	Φ900	Φ1100
Pot	Depth mm	450	500	550	650	850
Total capacity L		50	100	200	300	500
Pipe Size		1/2"	3/4"	3/4"	3/4"	3/4"
Stirring power kw		0.75	1.1/1.5	1.1/1.5	1.5/1.75	1.75/2.2
Electrical Heating Powerkw		12	18	24	24	30
Boiling timemin		~7	~10	~13	~16	~26
Heat transfer area M2		0.5	0.7	0.95	1.2	1.8
Design temperature C		180	180	180	180	180
Max working temperature C		151	151	151	151	151
Design pressure MPa
Max working pressureMPa		0.095	0.095	0.095	0.095	0.095
Maximum slope Angle		90°	90°	90°	90°	90°
Overall dimensions	Length mm	1050	1150	1350	1450	1650
	Width mm	700	800	900	1000	1200
	Height mm	950	1000	1070	1150	1360
