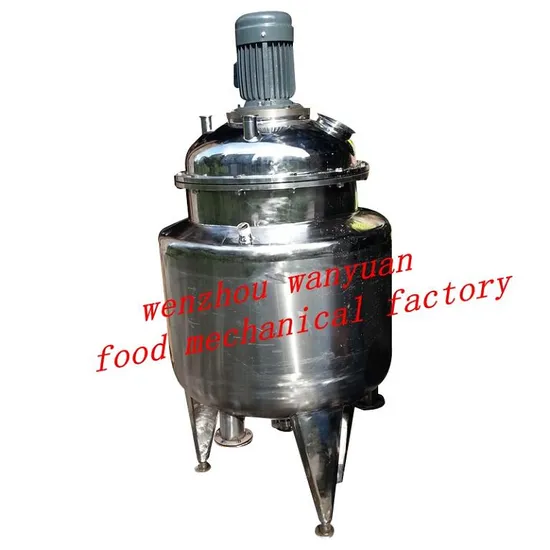

Sanitary Liquid Mixing Tank /Mixing Vessel

Sanitary liquid mixing tank /mixing vessel
1. Sanitary
2. Reliable Performance
3. Easy to control
4. Environmental
5. Provide custom service.

Specification:
The whole set equipment is made of austenitic stainless steel. The cooling jacket adopts dimple jacket.
The jackets are provided at tank body and conical bottom to effectively increase the cooling speed. Heat exchanging area of jacket of different proportions can be allocated according to customers' technological
Requirements (It could be designed).

Details:
1. Stainless Steel 304
2. Fully welded exterior
3.2-zone, insulated & clad, hop port,
4. CO2 port, doomed top,
5.15 psi operating pressure,
Side manway,
6.60 degree cone, thermometer, thermowell, pressure/vacuum relief valve, racking arm, sampling valve, CIP arm & spray ball, pressure gauge, three butterfly valves,
7.25% free headroom,
8. Adjustable feet

Characteristics:
1. It is available online CIP cleaning ( only suitable for enclosed structure)
2. Designed in accordance with sanitary requirements, so the structural design is very user-friendly, easy to operate, healthy to store.
3. The inner surface is mirror-polished (roughness Ra≤ 0.4µ M); The welding of all kinds of nozzles, endoscopic, manholes and the pot adopt stretch flanging process arc transition, easy to clean with no dead ends, ensure the reliability and stability in the production process.

Wenzhou wanyuan food machinery factory- - Mixing tank /Mixing vessel
Our Mixing tank capacity can be 50L, 200L, 500L, 2000L or any other capacity you need.
