High Quality Double Layered Jacketed Kettle

Customization:	Available
Usage:	Jam/Rice
Power Source:	Electric

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

DG100

Type

Mixer

Voltage

110V/220V/380V/415V

Customized

Cooking Kettle Capacity

50liter to 600L Customized

Cooking Pot Structure

Double Layer Made of Stainless Steel

Agitator

with / Without Agitator, Customized

Cooking Method

Nature Gas / LGP

Way of Discharge

Drainage From Bottom / Tiltable

Certificate

CE

Transport Package

Wooden Case

Specification

CE

Origin

Wenzhou China

Product Description

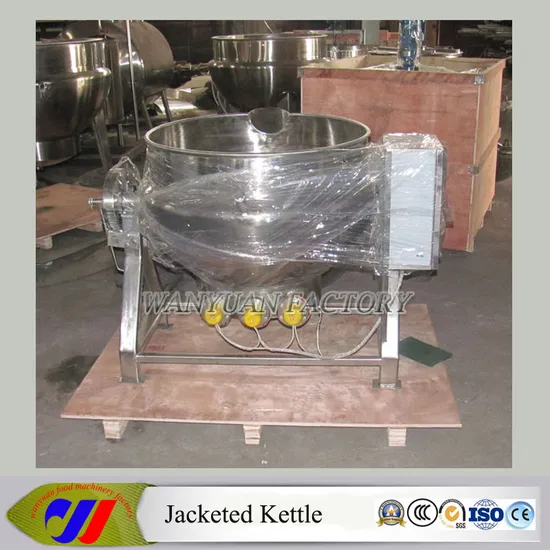

High Quality Double Layered Jacketed Kettle
1. Cooking milk, juicem tomato puree, paste
2. Kettle capacity 50L, 100L, 200L <customized>
3. Tiltable with mixing scraper or mixing paddle
4.high heat efficiency
5.heating uniform
6.large heating surface

Product features of the high quality double layered jacketed kettle:
High quality double layered jacketed kettle is powered by electricity heat transfer oil and can do work without steam. The use methods are simple and temperature can be controlled automatically.And it is a wonderful equipment to improve quality, reduce time and improve working conditions during foods processing.

The usage of the high quality double layered jacketed kettle:
High qulity double layered jacketed kettle can be applied to a wide variety of foods processing, such as candy, medicine, dairy, liquor, cake, candied fruit, drink, canned goods, sauced meat etc. it also can be used in making soup, cooking stir-fry, stewing meat, cooking porridge and so on , and it is a wonderful equipment to improve quality, reduce time and improve working conditions during foods processing.

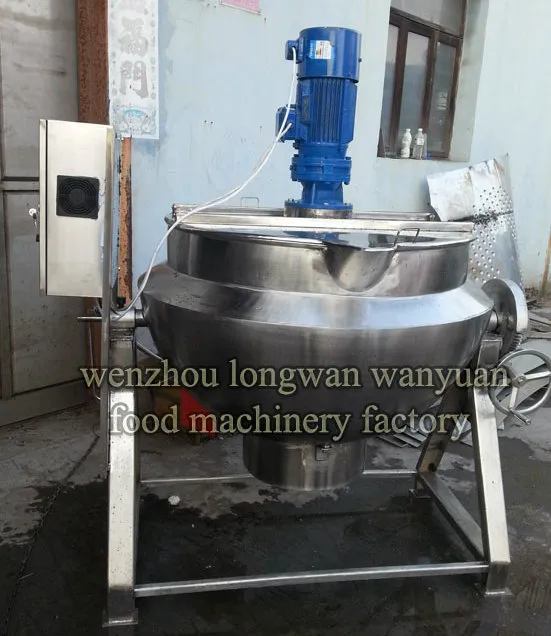

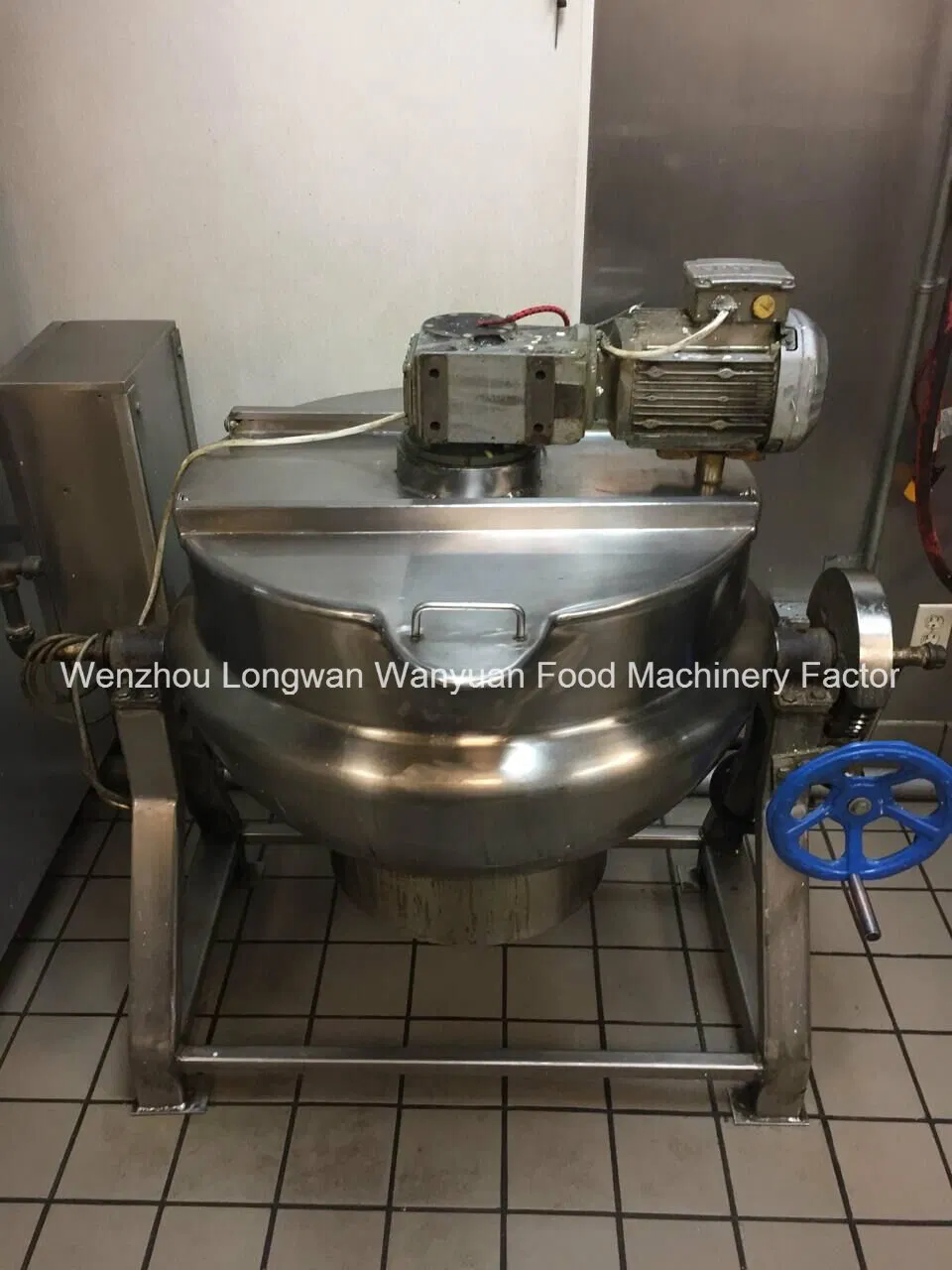

Both of tilting cooking kettle and verticle cooking kettle can be designed with mixer or without mixer.

Electrical jacket kettle:
Our electrical jacket kettle takes heat conducting oil as thermal source. Compare with steam heating, the heating temperature of of the electrical jacket kettle is higher than steam jacket kettle, which can shorten the cooking time. We also call electric heating kettle as oil jacketed kettle or oil jacketed cooking vat.
High Quality Double Layered Jacketed Kettle

Gas heating jacketed kettle with automatic temperature control
Most of the gas jacketed kettle are manual control. You need to turn on the gas when start cooking and after cooking you need to turn off the gas by hand. Have you every seen any gas cooking kettle which can turn on and turn off the gas automaticly rather than by hand?
High Quality Double Layered Jacketed Kettle

Our cooking kettle can do this! Our gas cooking kettle which produced by wenzhou longwan wanyuan food machinery can turn on and turn off the gas automatically!
Want to know more about our automatic control gas cooking kettle?
Please send us your detail request.

Our jacket kettle normally used for producing sauces, pasta, vegetables, soups, juice, meat, candy and other food products. It also can be used as simple sterilization boiler.

Cooking kettle / cooking pan / cooking vat / specification
Here below is the specification of our 100L electric cooking kettle and 200L electric heating cooking kettle

Wenzhou wanyuan food machinery factory--Jacketed kettle
The below is Jacketed kettle specification:

Model		DG-200	DG-100
Jacketed pot	diameter(mm)	Φ800	Φ700
Jacketed pot	depth(mm)	550	500
Total capacity (L)		200	100
Material in/out pipe		1/2"	3/4"
Heating power(kw)		12	18
Boiling time (min)		~13	~10
Heating area(m2)		1.13	0.58
Design temperature (degree C)		180	180
Max working temp (degree C)		151	151
Design pressure (MPa)		0.095	0.095
Max working pressure(MPa)		0.095	0.095
Max tilting Angle		90°	90°
overall dimension	Length (mm)	1100	1000
	Width (mm)	850	750
	Height (mm)	1450	1100
