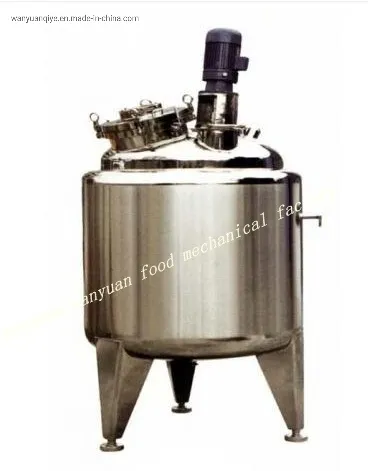

Yoghurt Fermentation Tank
Specifications-yoghurt fermentation tank
1.PROFESSIONAL EQUIPMENT
2.SPECIAL WELDING EQUIPMENT
3.STRONG PRODUCTION CAPACITY yoghurt fermentation tank
INTRODUCTIONS:
1.Tank volume:30-15000L
2.Material :SUS304 or SUS316
3.Dimention(diameter ,thickness ,height etc) :as required
3.With miller plate or miller jacket STRUCTURE:
1.Fixed type is mainly by the composition of the tank body and bracket
2.Tank liner and head are made of polished stainless steel
3.Jacket and stiffener is made by foaming stainless steel
insulation layer with polyurethane(24-hour pick-up in 20C).
4.The middle of jacket with sprial type heating and jacket cooling .
5.Wrapped 2mm thickness brushed stainless steel plate
6.Stirrer and lid seal formed by mechanical seals
7.Connecting the upper and lower lid with stainless steel studs and XB250 non-toxic rubber
ACCESSORIES:
1. Stirrer ,sterile breathing hole
2.Feeding and dischage port ,Sterile sampling port
3.Manhole ,hot and cool water inlet and outlet
4.Sterile breathing hole or positive pressure sterile fermentation system
5.360 degree rotation CIP cleaning spray ball
6.Thermometer , temperature controller ,Level gauge & ladder (according to customer' requirments )
| CAPACITY | SPEED(R/MIN) | WORKING PRESSURE | TEST PRESSURE | MOTO POWER(KW) | TEMPERATURE |
| (MPa) |
| 100L | 110-220 | 0.15 | 0.30 | 0.37 | ≤1200C |
| 200L | 110-220 | 0.15 | 0.30 | 0.5 | ≤1200C |
| 300L | 110-220 | 0.15 | 0.30 | 0.5 | ≤1200C |
| 500L | 110-220 | 0.15 | 0.30 | 0.75 | ≤1200C |
| 600L | 110-220 | 0.15 | 0.30 | 0.75 | ≤1200C |
| 800L | 110-220 | 0.15 | 0.30 | 1.1 | ≤1200C |
| 1000L | 110-220 | 0.15 | 0.30 | 1.1 | ≤1200C |
| 2000L | 110-220 | 0.15 | 0.30 | 2.2 | ≤1200C |
| 3000L | 110-220 | 0.15 | 0.30 | 3.0 | ≤1200C |
| 5000L | 110-220 | 0.15 | 0.30 | 3.0 | ≤1200C |
| 8000L | 110-220 | 0.15 | 0.30 | 4.0 | ≤1200C |
| 10m 3 | 110-220 | 0.15 | 0.30 | 5.5 | ≤1200C |
| 20m 3 | 110-220 | 0.15 | 0.30 | 5.5 | ≤1200C |
| 40m 3 | 110-220 | 0.15 | 0.30 | 7.5 | ≤1200C |
| 60m 3 | 110-220 | 0.15 | 0.30 | 7.5 | ≤1200C |
| 100m 3 | 110-220 | 0.15 | 0.30 | 10.0 | ≤1200C |
