Ease of Use Can Be Tilted Gas Heating Cooker

Customization:	Available
Type:	Cooking and Mixing
Voltage:	110V/220V/380V/415V

Quantity:



Inquire Add to Basket

Product Description

Basic Info.

Model NO.

RG-500

Customized

Cooking Kettle Capacity

50liter to 600L Customized

Cooking Pot Structure

Double Layer Made of Stainless Steel

Agitator

with / Without Agitator, Customized

Way of Discharge

Drainage From Bottom / Tiltable

Construction Material

Ss304 / Ss316

Transport Package

Wooden Case

Specification

CE

Origin

Wenzhou China

Product Description

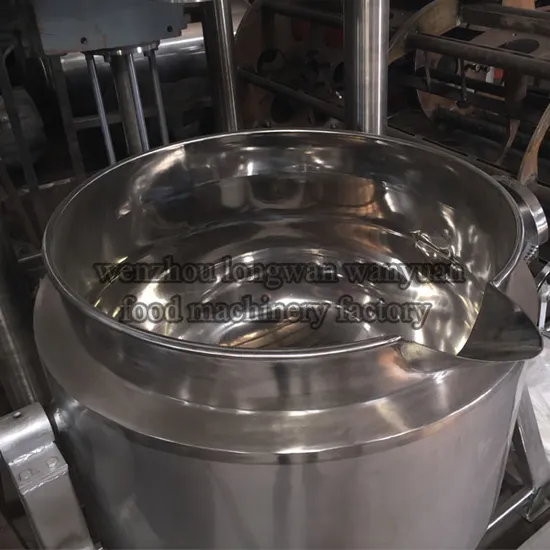

Ease of use can be tilted Gas Heating Cooker
1. Cooking milk, juice, tomato puree, paste
2. Kettle capacity 50L, 100L, 200L <customized>
3. Tiltable with mixing scraper or mixing paddle

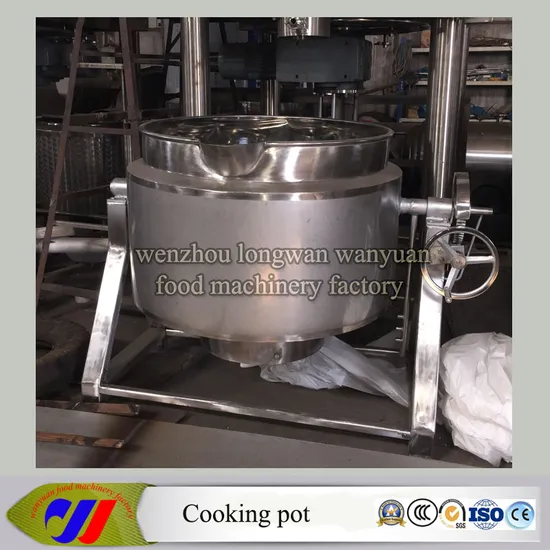

Movable Tilting Gas Heating Jacketed Boiler with Agitator
Jacketed kettle or gas jacketed kettle can be designed into different type:
Tilting type cooking kettle and vertical type cooking kettle.
Tilting jacketed cooking kettle is designed with a tiltable device, you can turn the kettle or pot over for discharge after cooking.
Vertical cooking kettle is designed on 3 legs, there is a discharge pipe at the bottom of the jacketed pot.

Both of tilting cooking kettle and verticle cooking kettle can be designed with mixer or without mixer.

Gas jacket kettle:
As a manufacture of Gas jacketed kettle<cooking pot or jacketed cooking vat>, wenzhou longwan wanyuan food machinery offer different cooking kettle capacity according to your request.
You can choose 50L cooking kettle, 100L cooking kettle, or 200L cooking pot. You can also choose any other customized capacity cooking kettle.

Our jacket kettle normally used for producing sauces, pasta, vegetables, soups, juice, meat, candy and other food products. It also can be used as simple sterilization boiler.

Wenzhou wanyuan food machinery factory
Cooking kettle / cooking pan / cooking vat / specification
Here below is the specification of our 100L electric cooking kettle and 200L electric heating cooking kettle

Item/ Type	RG-100	RG-200	RG-300	RG400	RG-500	RG-600
Capacity(L)	100L	200L	300L	400L	500L	600L
Diameter(mm)	700	800	900	1000	1100	1200
Material	SUS304/SS316
Design temperature	145°C
Design pressure	0.35Mpa
Experiment pressure	0.44Mpa
